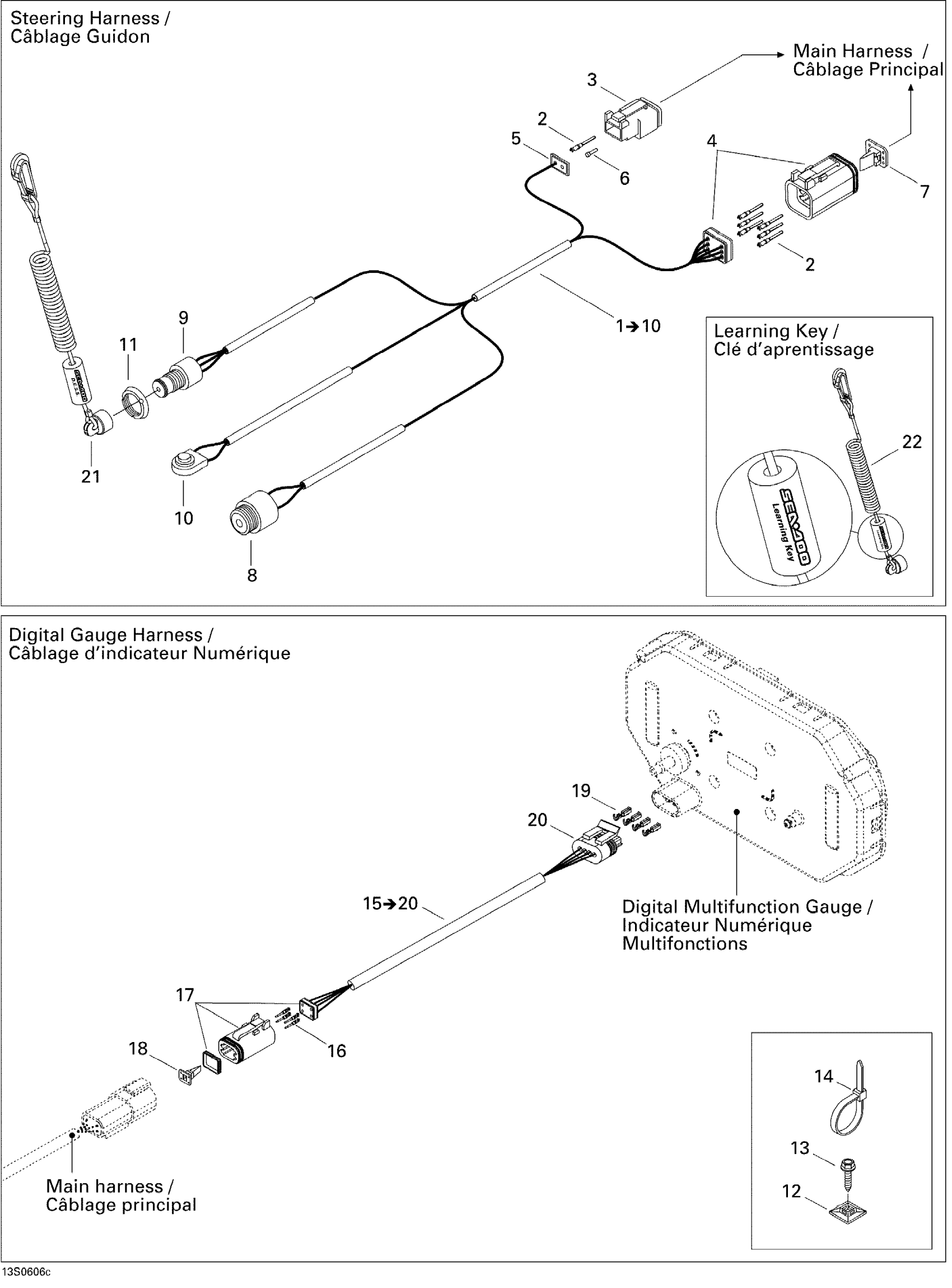

Sea-doo RXT, 2006 Electrical Harness 3 Diagram

#

Description
Price

1

Steering Harness Ass’y | Includes 2 to 11

278002112

Unavailable

2

Female Terminal

278000632

$1.69

3

Female Connector, 2 Circuits

409207300

$9.60

4

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$19.97

5

FEMALE LOCK, 2 CIRCUITS - Call your local BRP dealership

409207100

Unavailable

6

Sealing Cap

293000052

$2.55

7

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

8

BUZZER - Call your local BRP dealership

278001586

Unavailable

9

Safety Switch This part replaces 278002325.

278002773

$89.67

10

START/STOP SWITCH - Call your local BRP dealership

278001733

Unavailable

11

Safety Nut (DESS Switch)

278002963

$2.72

12

Tie Rap Mount

293750026

$2.41

13

Hex. Flange Screw K40 X 13

241141360

$0.56

14

Tie-Rap 180 mm

414115200

$0.09

15

Digital Multifunction Gauge Harness | Includes 16 to 21

278002111

Unavailable

16

Female Terminal

278000632

$1.69

17

Male Connector, 4 Circuits | CE

278000739

$14.92

18

Male Lock, 4 Circuits | CE

278000738

$2.91

19

Female Terminal

278001114

$2.55

20

MALE CONNECTOR, 4 CIRCUITS - Call your local BRP dealership

278001308

Unavailable

21

Safety Lanyard, Antitheft This part replaces 278001543.

278002199

$68.87

22

Safety Lanyard, Learning Key

278002203

$45.47
