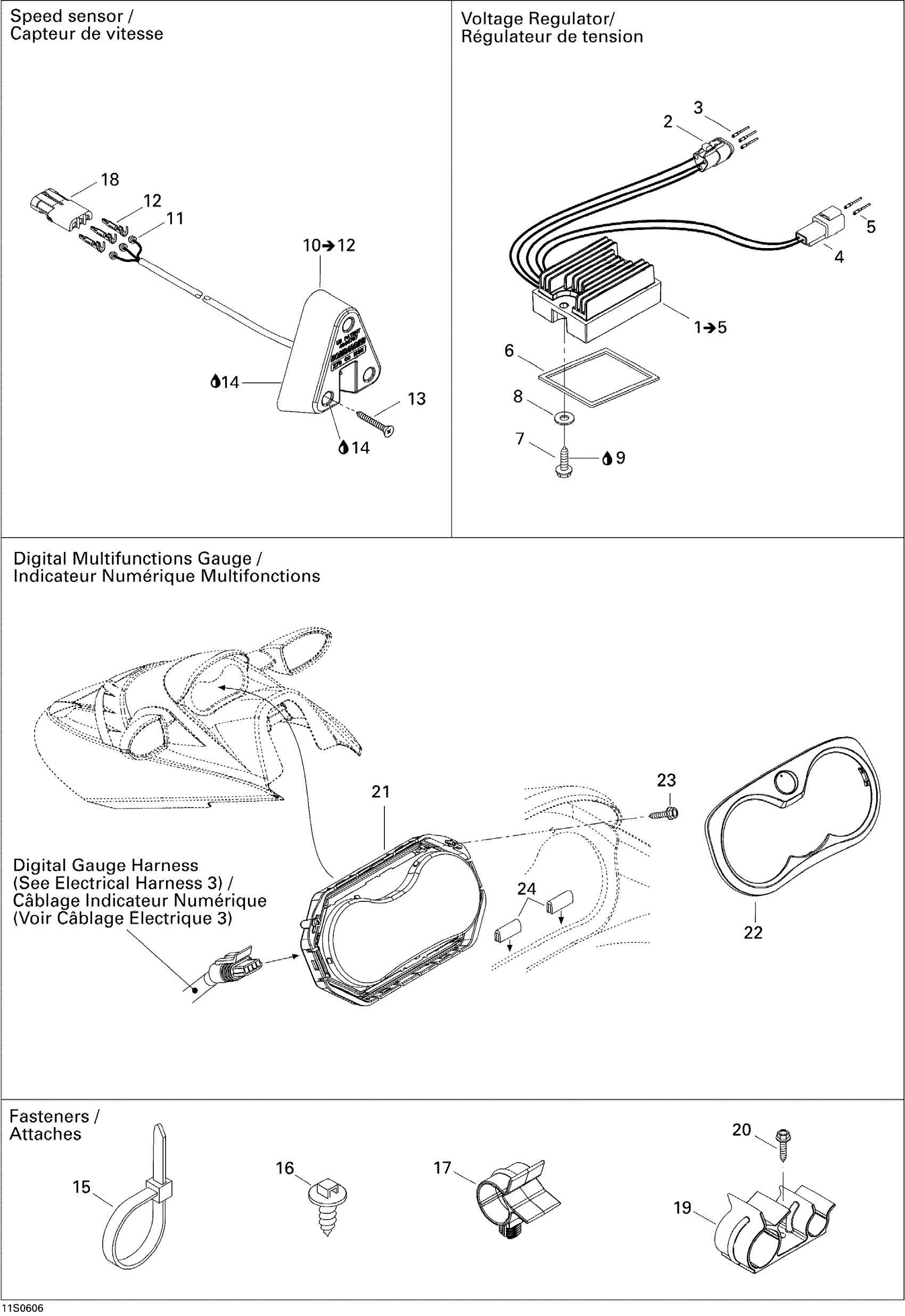

Sea-doo RXT, 2006 Electrical Accessories Diagram

#

Description
Price

1

REGULATOR - Call your local BRP dealership | Includes 11 to 15

278001969

$174.99

2

CONNECTOR_FEMALE 3 CAVITIES - Call your local BRP dealership

278002375

$30.99

3

Female Terminal

278000632

$2.09

4

Male Housing, 2 Circuits

409206900

$9.59

5

Female Terminal

515175567

$7.69

6

SEAL - Call your local BRP dealership

293250123

Unavailable

7

Hex. Screw 10-14 X 7/8”

211000023

$3.59

8

Stainless Flat Washer M6

234061600

$0.33

9

Loctite 271, 10 ml

293800005

$26.99

10

Speed Sensor

278001993

$169.99

11

Not Available As Spare Part - Friction Washer

Unavailable

12

Not Available As Spare Part - Friction Washer

Unavailable

13

PHILLIPS SCREW #10 X 7/8 - Call your local BRP dealership

211000021

Unavailable

14

Silicone Sealant 51388, 300 ml

296000309

$36.99

15

Tie Wrap 142 mm

293750002

$1.25

15

Tie-Rap 180 mm

414115200

$0.11

15

Tie-Rap 206 mm

293750027

$2.89

15

Tie Wrap 368 mm

293750008

$1.04

16

Mount Dart

293730040

$1.04

17

Cable Retainer

275500527

$2.68

18

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.85

19

RETAINER - Call your local BRP dealership

275500553

Unavailable

20

Hex. Flange Screw K40 X 16

241141660

$1.48

21

Digital Multifunction Gauge | SERV

278002270

$1.00

22

Gauge Bezel, Chrome

278002144

$38.99

23

Hex. Flange Screw K40 X 25

241142560

$2.64

24

TRIM - Call your local BRP dealership

293830113

Unavailable
