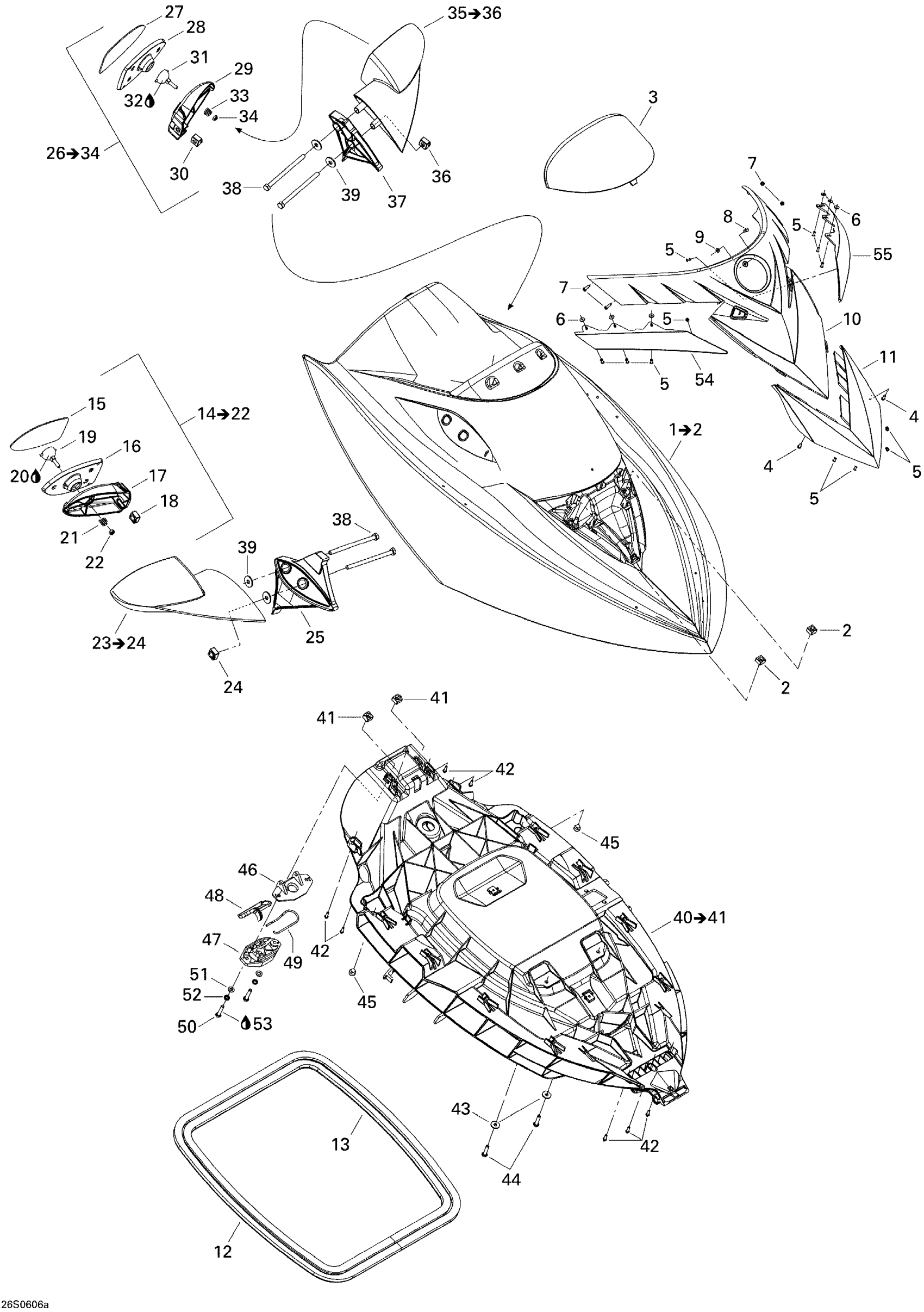

Sea-doo RXT, 2006 09- Front Storage Compartment 1 Diagram
#
1
Upper Storage Cover, Maya Gold | Includes 1 to 2 / Maya Gold, B-270
269501460
Unavailable
1
Upper Storage Cover, Viper Red | Includes 1 to 2 / Viper Red, B-267
269501471
Unavailable
2
M6 Nut Housing Ass'y | Includes 290 to 290b
269500252
$7.86
3
Deflector, Smoke
269501485
Unavailable
4
Hex. Flange Screw K40 X 13
241141360
$0.67
5
RIVET_POP 1/8 X ,438 - Call your local BRP dealership
293150001
Unavailable
6
WASHER - Call your local BRP dealership
293150007
Unavailable
7
Hex. Flange Screw K40 X 13
241141360
$0.67
8
RIVET_POP 5/32 - Call your local BRP dealership
293150029
Unavailable
9
Flat Washer 4 mm
234040600
$0.55
10
FRONT FASCIA - Call your local BRP dealership
269501519
Unavailable
11
FRONT DEFLECTOR, CHROME - Call your local BRP dealership
269501407
Unavailable
12
Was 293200017 Neoprene Seal
219704365
$149.99
13
Was 293200017 Neoprene Seal
219704365
$149.99
14
RH Mirror
269501328
Unavailable
15
Not Available As Spare Part - Friction Washer
Unavailable
16
Mirror Frame
269501330
Unavailable
17
Housing Support
269501331
Unavailable
18
Elastic Nut Housing M8 | Included 10a6 to 10a6a
269501943
$6.67
19
MIRROR BALL JOINT - Call your local BRP dealership
269501333
Unavailable
20
Synthetic Grease, 400 G
293550010
Unavailable
21
Mirror Spring
269501334
Unavailable
22
Hex. Elastic Stop Nut M6
232561600
$1.15
23
RH Mirror Shell, Maya Gold | Includes 23 to 24 / Maya Gold, B-270
269501461
Unavailable
23
RH Mirror Shell, Viper Red | Includes 23 to 24 / Viper Red, B-267
269501425
Unavailable
24
Elastic Nut Housing M8 | Included 10a6 to 10a6a
269501943
$6.67
25
RH Spacer
269500950
Unavailable
26
LH Mirror Ass'y | GTI SE, Includes 12 to 20
269501337
Unavailable
27
Not Available As Spare Part - Friction Washer
Unavailable
28
Mirror Frame
269501330
Unavailable
29
Housing Support
269501331
Unavailable
30
Elastic Nut Housing M8 | Included 10a6 to 10a6a
269501943
$6.67
31
MIRROR BALL JOINT - Call your local BRP dealership
269501333
Unavailable
32
Synthetic Grease, 400 G
293550010
Unavailable
33
Mirror Spring
269501334
Unavailable
34
Hex. Elastic Stop Nut M6
232561600
$1.15
35
LH Mirror Shell, Maya Gold | Includes 35 to 36 / Maya Gold, B-270
269501462
Unavailable
35
LH Mirror Shell, Viper Red | Includes 39 to 41 / Viper Red, B-267
269501427
Unavailable
36
Elastic Nut Housing M8 | Included 10a6 to 10a6a
269501943
$6.67
37
LH Spacer
269500951
Unavailable
38
HEX. SCREW M8 X 120 - Call your local BRP dealership
230082060
Unavailable
39
Flat Washer 8 mm, Stainless
234082600
$2.43
40
LOWER STORAGE COVER ASS'Y - Call your local BRP dealership | Includes 39 to 40
269501413
Unavailable
41
M6 Nut Housing Ass'y | Includes 290 to 290b
269500252
$7.86
42
Hex. Flange Screw K40 X 13
241141360
$0.67
43
Flat Washer M6, Stainless
234062600
$0.77
44
Hex. Screw M6 X 25, Scotch Grip | With Catalyst
207362560
$1.47
45
Rubber Bumper
293830005
$8.09
46
Latch Ass'y
269700109
$24.99
47
Latch Ass'y
269700109
$24.99
48
Latch Ass'y
269700109
$24.99
49
Latch Spring
269700017
$9.19
50
Hex. Screw M6 X 30
207063060
$1.89
51
Stainless Flat Washer M6
234061600
$0.33
52
Lock Washer Helical M6
234161601
$1.15
53
Loctite 243, 10 ml
293800060
$21.49
54
RH DEFLECTOR, CHROME - Call your local BRP dealership
269501409
Unavailable
55
LH DEFLECTOR, CHROME - Call your local BRP dealership
269501410
Unavailable
