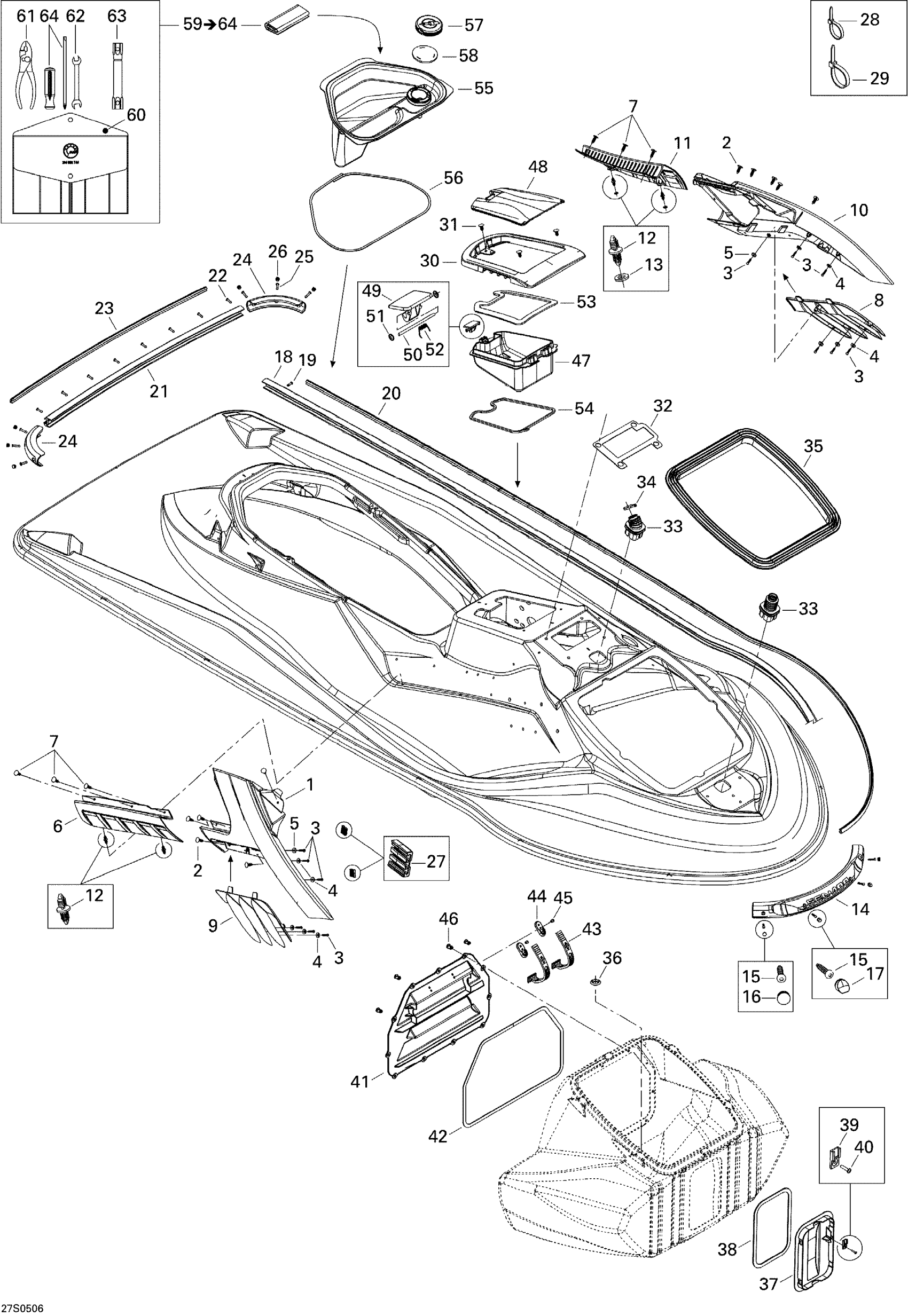

Sea-doo RXT, 2006 09- Body, Front View Diagram
#
1
RH SIDE MOULDING - Call your local BRP dealership | Bright Yellow Model
269501515
Unavailable
2
Black, Dart
293730006
$0.99
3
Hex. Flange Screw K40 X 25
241142560
$2.64
4
WASHER 4.3 MM, NYLON - Call your local BRP dealership
250200055
Unavailable
5
Flat Washer 4 mm, Stainless
234042600
$1.15
6
RH SIDE GRILL - Call your local BRP dealership | Bright Yellow Model
269501518
Unavailable
7
Black, Dart
293730006
$0.99
8
RH SIDE MOULDING, CHROME - Call your local BRP dealership | Silver Metallic Model
269501406
Unavailable
9
LH SIDE MOULDING, CHROME - Call your local BRP dealership | Silver Metallic Model
269501408
Unavailable
10
LH SIDE MOULDING - Call your local BRP dealership | Bright Yellow Model
269501516
Unavailable
11
LH SIDE GRILL - Call your local BRP dealership | Bright Yellow Model
269501517
Unavailable
12
DART, DOUBLE - Call your local BRP dealership
293730008
Unavailable
13
Seal
293200099
Unavailable
14
BUMPER NOSE, BLACK - Call your local BRP dealership
291001942
Unavailable
15
TORX SCREW 10-14 X 1-1/8 - Call your local BRP dealership
250000236
Unavailable
16
Bumper Plug, Black
291001519
$5.49
17
Bumper Plug, Black
291001040
$7.39
18
Black, Side Bumper
204050270
$179.99
19
Pop Rivet 3/16"
293150005
$0.52
20
SIDE BUMBER TRIM, VIPER RED - Call your local BRP dealership
291002143
Unavailable
20
Side Bumber Trim, Maya Gold | Maya Gold
291002330
Unavailable
21
REAR BUMPER, BLACK - Call your local BRP dealership
291002242
Unavailable
22
Pop Rivet 3/16"
293150005
$0.52
23
Rear Bumper Trim, Viper Red | Viper Red
291002111
Unavailable
23
REAR BUMPER TRIM, MAYA GOLD - Call your local BRP dealership | Maya Gold
291002331
Unavailable
24
Bumper Corner
291002244
$48.99
25
Pop Rivet 3/16"
293150013
$1.37
26
Bumper Plug, Black
291000339
$2.99
27
Tie-Rap Mount
293750025
$1.25
28
Tie-Rap 180 mm
414115200
$0.11
29
Tie Wrap 368 mm
293750008
$1.04
30
Cover Trim, Black
269501031
$53.99
31
Black, Dart
293730006
$0.99
32
GASKET - Call your local BRP dealership
293250171
Unavailable
33
GROMMET - Call your local BRP dealership
293720042
Unavailable
34
Tie-Rap 180 mm
414115200
$0.11
35
Cover Trim
269501234
Unavailable
36
Black Plug
291000279
$7.69
37
Front Door
291002416
Unavailable
38
Gasket, Neoprene 2000Mm Long
219704476
$15.36
39
Clip
270000141
$11.49
40
Flange Screw K40 X 20
241642060
$1.15
41
Rear Door
291001743
Unavailable
42
Gasket, Neoprene 2000Mm Long
219704476
$15.36
43
Strap
269502417
$17.69
44
Hook
269500521
$9.09
45
Avdel Rivet
293150027
$2.49
46
Tuflok Plastic Rivet
293150230
$1.47
47
GLOVE BOX - Call your local BRP dealership
269500968
Unavailable
48
GLOVE BOX DOOR - Call your local BRP dealership
269501648
Unavailable
49
Latch, Black
269500553
$21.99
50
Pin
211400008
$9.10
51
Push Nut | Not shown
211100002
$2.19
52
Latch Spring
291000922
$7.39
53
GASKET - Call your local BRP dealership
293250126
Unavailable
54
GASKET - Call your local BRP dealership
293250127
Unavailable
55
Rear Tray
269501036
Unavailable
56
GASKET PAC = 1.0m - Call your local BRP dealership
293250008
Unavailable
57
COVER - Call your local BRP dealership
269000788
Unavailable
58
COVER SEAL - Call your local BRP dealership
269000810
Unavailable
59
TOOL KIT - Call your local BRP dealership | Includes 43 to 46
294000744
Unavailable
60
Not Available As Spare Part - Friction Washer
Unavailable
61
Not Available As Spare Part - Friction Washer
Unavailable
62
FORK WRENCH - Call your local BRP dealership
529017300
Unavailable
63
Socket Wrench
529035731
Unavailable
64
SCREW DRIVER - Call your local BRP dealership
529000004
Unavailable
