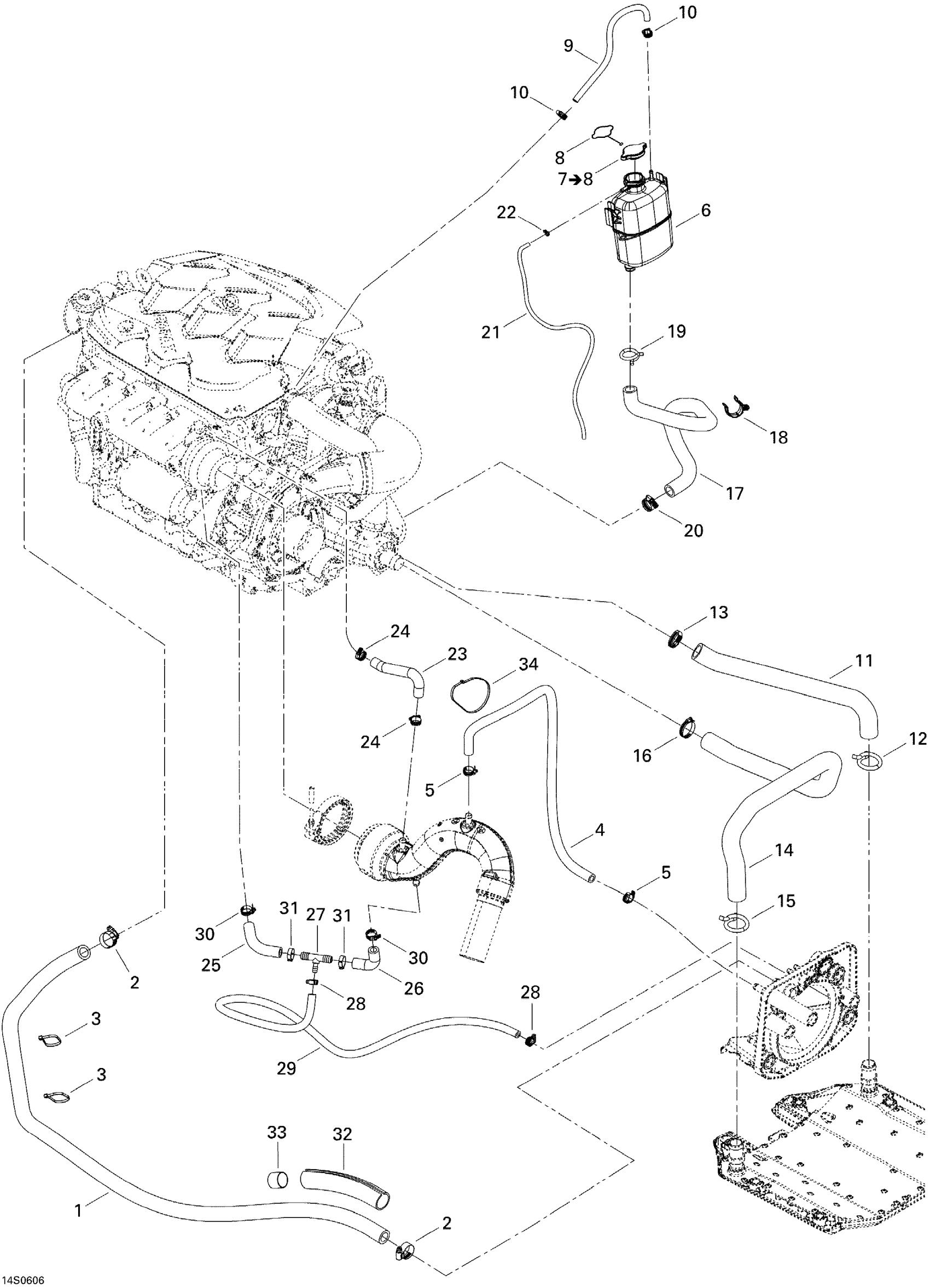

Sea-doo RXT, 2006 01- Cooling System Diagram
#
Description
Price
1
Formed Hose
276000138
Unavailable
2
Tridon Gear Clamp
293650051
$4.19
3
Tie-Rap 180 mm
414115200
$0.11
4
Was 276000001 Hose 12.5 mm
219704394
$51.99
5
Tridon Gear Clamp
293650172
$3.09
6
Coolant Tank
276000086
$109.99
7
Pressure Cap | Includes 720 to 720a
276000100
$25.99
8
Latch - Call your local BRP dealership | Not Shown
276000127
Unavailable
9
Was 275500549 Hose 1/4"
219704357
$194.99
10
Tridon Gear Clamp
293650170
$1.99
11
RH Radiator Hose
276000248
$58.99
12
DAEMAR CLAMP SPRING - Call your local BRP dealership
293650114
Unavailable
13
Tridon Gear Clamp
293650045
$5.69
14
LH RADIATOR HOSE - Call your local BRP dealership
276000250
Unavailable
15
DAEMAR CLAMP SPRING - Call your local BRP dealership
293650114
Unavailable
16
Tridon Gear Clamp
293650045
$5.69
17
Formed Return Hose
276000144
Unavailable
18
Retainer
275500526
$4.55
19
Spring Clamp
293650115
$3.09
20
Tridon Gear Clamp
293650019
$5.82
21
Polyurethane Hose 10000Mm Long
219704410
$56.99
22
Tie Wrap 94 mm | 4X4
293750001
$1.03
23
Formed Hose
276000155
Unavailable
24
Tridon Gear Clamp
293650172
$3.09
25
Lower Formed Hose
276000160
Unavailable
26
Hose, Bypass Lower | With Catalyst This part replaces 276000137.
276000455
$19.49
27
T-Fitting
293710116
$17.62
28
Tridon Gear Clamp
293650171
$3.09
29
Hose 8 mm
509000093
Unavailable
30
Tridon Gear Clamp
293650172
$3.09
31
Tridon Gear Clamp
293650173
$3.09
32
Tubing 25 MM 1000MM Long
219704402
$15.99
33
SHRINK TUBING - Call your local BRP dealership
276000125
Unavailable
34
Tie Wrap 368 mm
293750008
$1.04
