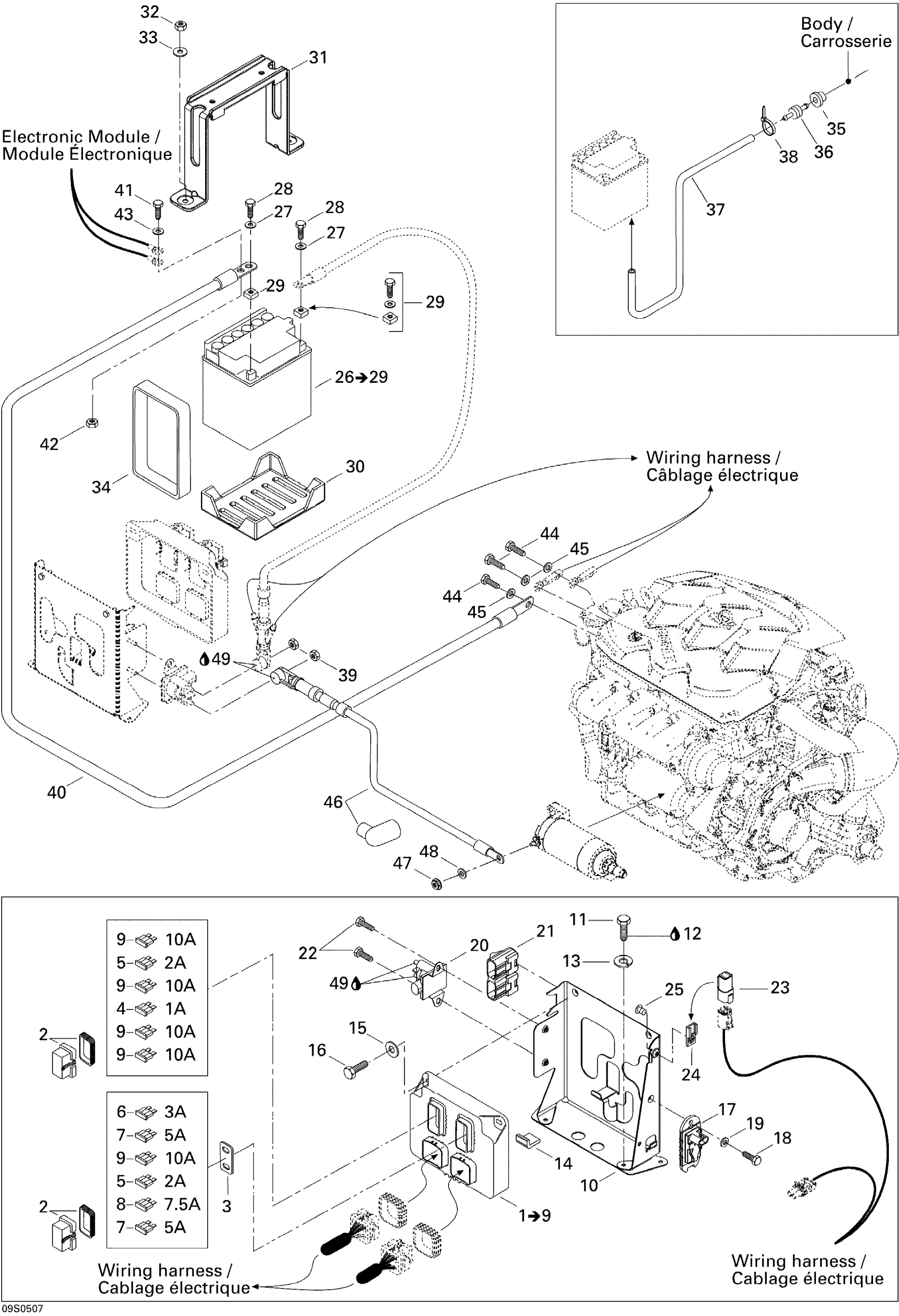

Sea-doo RXT, 2005 10- Electrical System Diagram
#
1
Multi Purpose Electronic Module, Mpem | Includes 1 to 9, GTI Rental
278002043
Unavailable
2
FUSE COVER - Call your local BRP dealership | Includes 2 to 3, North America This part replaces 278001618.
278002102
$36.99
3
COVER BUSHING - Call your local BRP dealership | North America
278001719
Unavailable
4
FUSE, 1 AMPERE - Call your local BRP dealership
409012800
Unavailable
5
FUSE, 2 AMPERES - Call your local BRP dealership
278001442
Unavailable
6
FUSE, 3 AMPERES - Call your local BRP dealership | CE
278001196
Unavailable
7
Fuse, 5 Amperes | CE
278000344
$3.28
8
FUSE, 7.5 AMPERES - Call your local BRP dealership | CE
278000704
Unavailable
9
Fuse, 10 Amperes | North America
278001197
$2.21
10
Module Support
278002005
Unavailable
11
Hex. Screw 10-14 X 7/8”
211000023
$3.59
12
Loctite 271, 10 ml
293800005
$26.99
13
WASHER-LOCK IMPERIAL - Call your local BRP dealership
211200043
Unavailable
14
MODULE PROTECTOR - Call your local BRP dealership
278001166
Unavailable
15
Flat Washer M6, Stainless
234062600
$0.77
16
Hex. Screw M6 X 12, Scotch Grip
207361260
$0.58
17
Interrupter T.O.P.S.
278001992
$74.49
18
Hex. Screw M6 X 12, Scotch Grip
207361260
$0.58
19
Stainless Flat Washer M6
234061600
$0.33
20
Starter Relay
278003012
$42.49
21
HOUSING COVER - Call your local BRP dealership
710000342
Unavailable
22
Hex. Screw M6 X 12, Scotch Grip
207361260
$0.58
23
Diagnostic Connector
278002704
$19.49
24
Clip
270000141
$11.49
25
Pop Rivet 3/16"
204000081
$1.49
26
Battery, 30 Amperes
278001882
$184.01
27
FLAT WASHER 6 MM - Call your local BRP dealership
211200018
Unavailable
28
Hex. Screw M6 X 16
207161644
$0.74
29
Battery Bolt Kit
250000282
$7.29
30
LOWER BATTERY PAD - Call your local BRP dealership
278001582
Unavailable
31
BATTERY SUPPORT - Call your local BRP dealership
278001677
Unavailable
32
Hex. Elastic Nut M8
232581600
$1.48
33
Flat Washer 8 mm, Stainless
234082600
$2.43
34
BATTERY STRAP 337 MM - Call your local BRP dealership
278001764
Unavailable
35
Grommet
293720029
$1.59
36
CHECK VALVE - Call your local BRP dealership This part replaces 275500167.
275500499
Unavailable
37
HOSE 6 MM - Call your local BRP dealership
275500446
Unavailable
38
Tie Wrap 94 mm | 4X4
293750001
$1.03
39
Hex. Elastic Stop Nut M6
232561600
$1.15
40
Battery Ground Cable Ass'y
278001611
Unavailable
41
Hex. Cap Screw M6 X 12
207161260
$1.26
42
Hex. Elastic Stop Nut M6
232561600
$1.15
43
Stainless Flat Washer M6
234061600
$0.33
44
Hex. Screw M6 X 12, Scotch Grip
207361260
$0.58
45
Stainless Flat Washer M6
234061600
$0.33
46
STARTER CABLE - Call your local BRP dealership
278002265
Unavailable
47
Hex. Elastic Stop Nut M6
232561600
$1.15
48
Stainless Flat Washer M6
234061600
$0.33
49
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
