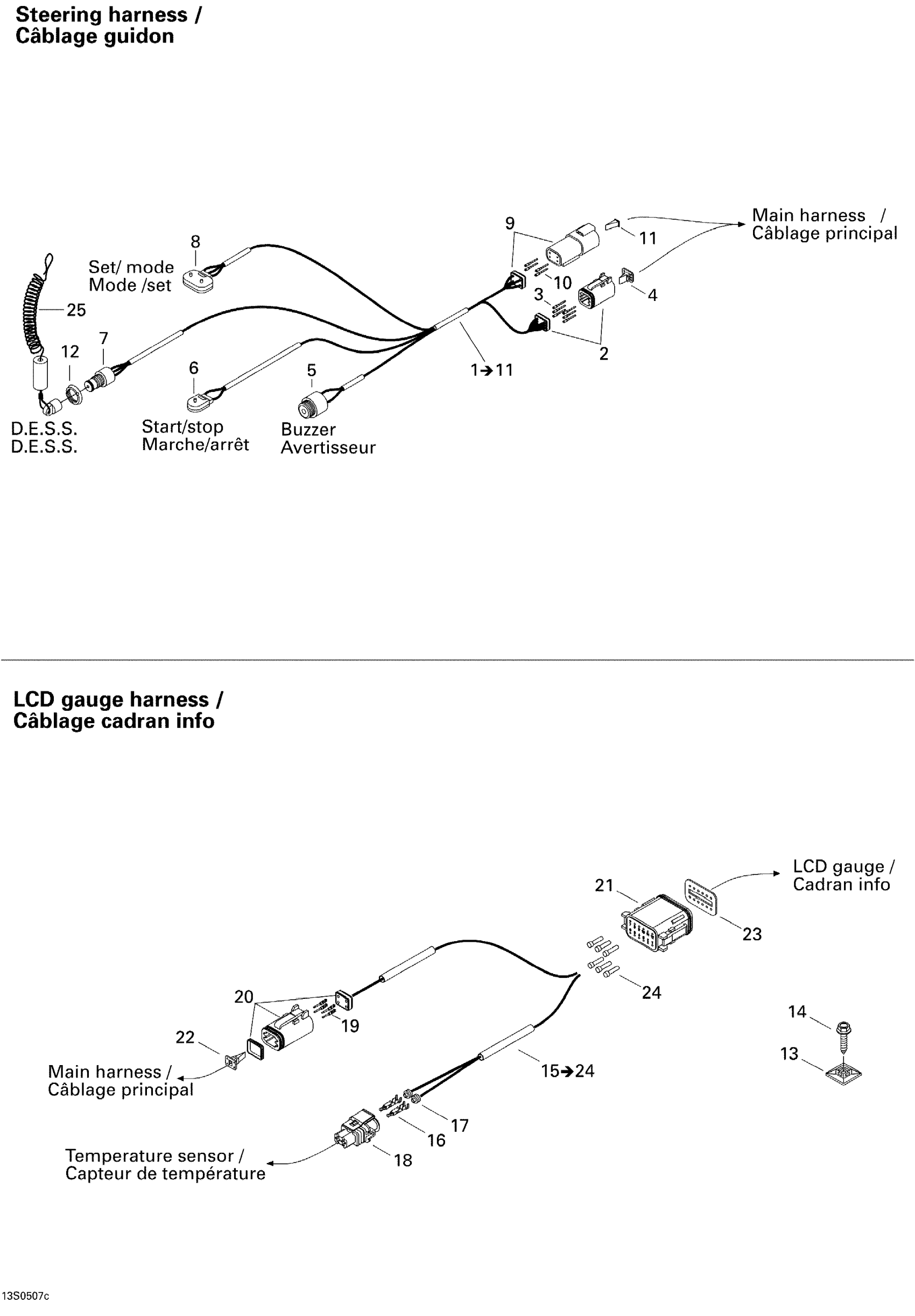

Sea-doo RXT, 2005 Electrical Harness 3 Diagram

#

Description
Price

1

STEERING HARNESS ASSY - Call your local BRP dealership | Includes 1 to 11

278001732

Unavailable

2

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$21.99

3

Female Terminal

278000632

$2.19

4

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

5

BUZZER - Call your local BRP dealership

278001586

Unavailable

6

START/STOP SWITCH - Call your local BRP dealership

278001733

Unavailable

7

Safety Switch This part replaces 278002325.

278002773

$114.99

8

SET/MODE SWITCH - Call your local BRP dealership

278001755

Unavailable

9

Female Housing, 4 Circuits

278000635

$16.99

10

Male Terminal

278000631

$4.49

11

Female Wedge, 4 Circuits

278000636

$4.49

12

Safety Nut (DESS Switch)

278002963

$3.39

13

Tie Rap Mount

293750026

$3.09

14

Hex. Flange Screw K40 X 13

241141360

$1.49

15

Cluster Harness Ass'y | Includes 19 to 28

278001600

Unavailable

16

Female Terminal

278000998

$4.49

17

Wire Seal

278000999

$3.29

18

Male Housing, 2 Circuits

278001005

$19.49

19

Female Terminal

278000632

$2.19

20

Male Connector, 4 Circuits | CE

278000739

$19.49

21

Female Terminal Housing, 12 Circuits

278002377

$51.99

22

Male Lock, 4 Circuits | CE

278000738

$3.19

23

Female Lock, 12 Circuits

409015700

$4.69

24

Sealing Cap

293000052

$3.29

25

Safety Lanyard, Antitheft This part replaces 278001543.

278002199

$84.99
