Description

Price

1

Front Air Collector Ass'y

291001717

Unavailable

2

FRONT AIR COLLECTOR ASS'Y - Call your local BRP dealership | Includes 1 to 2

291002547

Unavailable

3

Avdel Rivet 3/16"

293150037

$0.56

4

FLEXIBLE HOSE - Call your local BRP dealership

291001746

Unavailable

5

Vent Hose

291001689

Unavailable

6

Neoprene Seal (1PAC=3M)

219704364

$27.49

7

Black Dart

293730010

$0.99

8

STEERING SUPPORT - Call your local BRP dealership

277001072

Unavailable

9

Hex. Elastic Nut M8

232581600

$1.48

10

Stainless, Flat Washer 8 mm

234081600

$0.55

11

RIVET_POP 1/8 - Call your local BRP dealership

293150026

Unavailable

12

Flat Washer M3, Stainless

234032600

$0.55

13

HOSE SUPPORT - Call your local BRP dealership

291001886

Unavailable

14

Flexible Hose

291001748

Unavailable

15

Vent Hose

291001601

Unavailable

16

HOSE SUPPORT - Call your local BRP dealership

291002627

Unavailable

17

Avdel Rivet 3/16"

293150037

$0.56

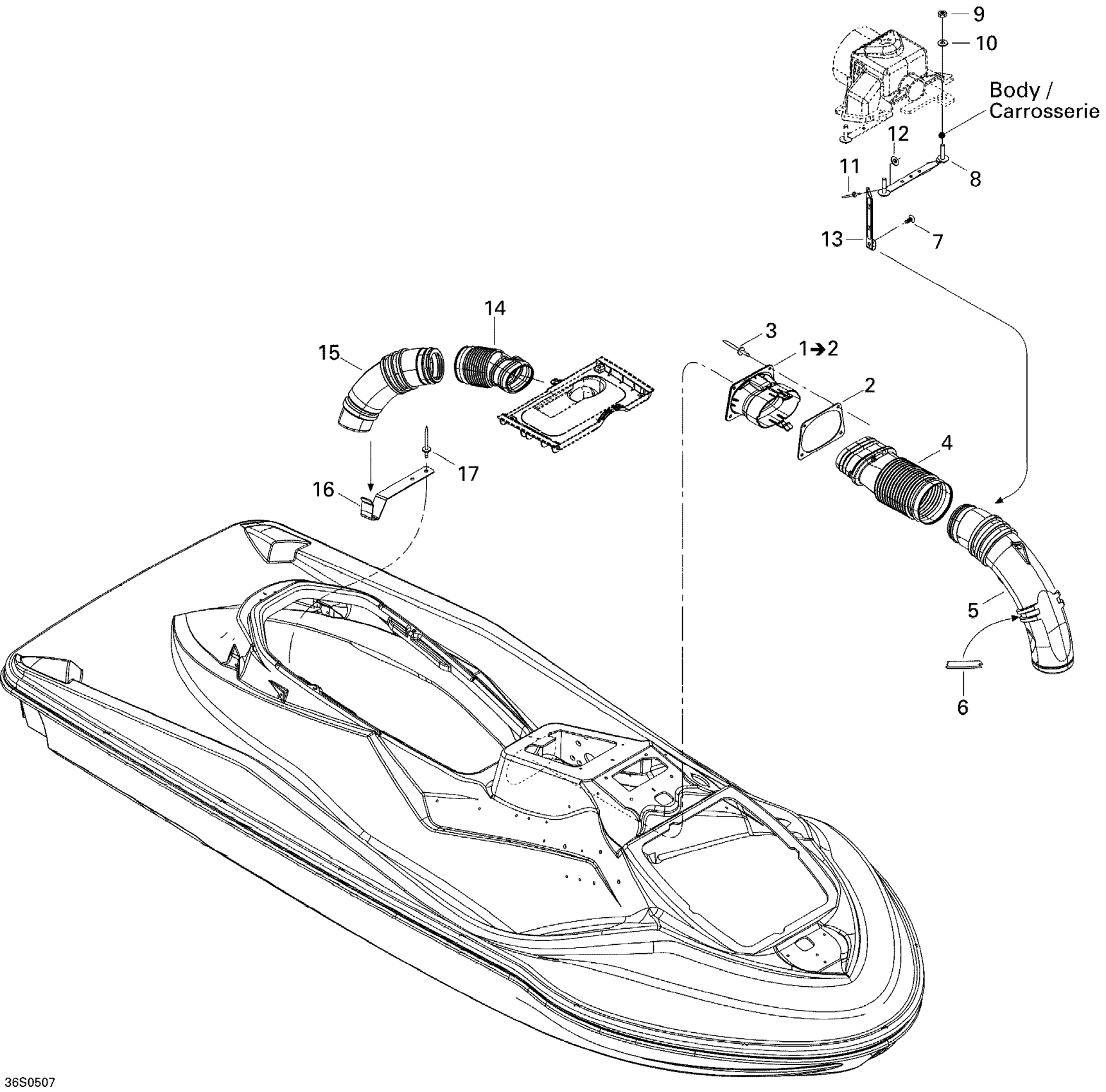

Sea-doo RXT, 2005 09- Ventilation Diagram

Front Air Collector Ass'y

FRONT AIR COLLECTOR ASS'Y - Call your local BRP dealership | Includes 1 to 2

Avdel Rivet 3/16"

FLEXIBLE HOSE - Call your local BRP dealership

Vent Hose

Neoprene Seal (1PAC=3M)

Black Dart

STEERING SUPPORT - Call your local BRP dealership

Hex. Elastic Nut M8

Stainless, Flat Washer 8 mm

RIVET_POP 1/8 - Call your local BRP dealership

Flat Washer M3, Stainless

HOSE SUPPORT - Call your local BRP dealership

Flexible Hose

Vent Hose

HOSE SUPPORT - Call your local BRP dealership

Avdel Rivet 3/16"
