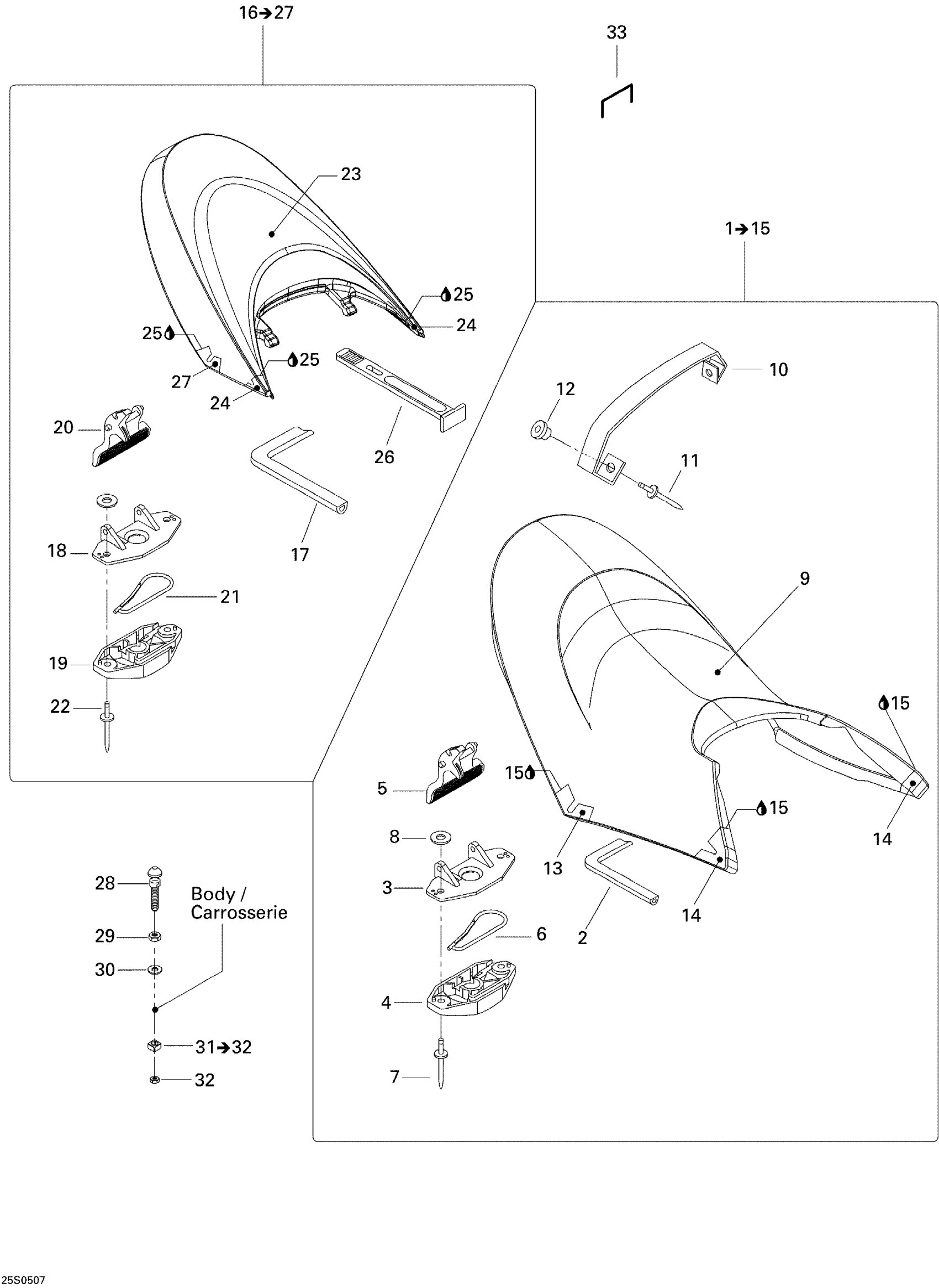

Sea-doo RXT, 2005 09- Seat Green Diagram
#
Description
Price
1
Front Seat Ass'y | Includes 1 to 15 / Apple Green, B-230
269001219
Unavailable
2
Was 293200062 Seal
219704366
$76.49
3
Latch Ass'y
269700109
$24.99
4
Latch Ass'y
269700109
$24.99
5
Latch Ass'y
269700109
$24.99
6
Latch Spring
269700017
$9.19
7
RIVET 1/4 X 5/8 - Call your local BRP dealership
293150074
Unavailable
8
Stainless Flat Washer M6
234061600
$0.33
9
Not Available As Spare Part - Friction Washer
Unavailable
10
Seat Strap | Apple Green, B-230
269001221
Unavailable
11
RIVET_POP 1/4 X ,725 - Call your local BRP dealership
293150078
Unavailable
12
Grommet
293720067
$12.99
13
RH Seat Corner | Apple Green, B-230
269001222
Unavailable
13
LH Seat Corner | Apple Green, B-230
269001223
Unavailable
14
RH Seat Front Corner | Apple Green, B-230
269001224
Unavailable
14
LH Seat Front Corner | Apple Green, B-230
269001225
Unavailable
15
Était Was 413705800 Loctite 414 , 29.5 c.c
219704463
$27.99
16
Rear Seat Ass'y | Includes 16 to 27 / Apple Green, B-230
269001233
Unavailable
17
Was 293200062 Seal
219704366
$76.49
18
Latch Ass'y
269700109
$24.99
19
Latch Ass'y
269700109
$24.99
20
Latch Ass'y
269700109
$24.99
21
Latch Spring
269700017
$9.19
22
RIVET 1/4 X 5/8 - Call your local BRP dealership
293150074
Unavailable
23
Not Available As Spare Part - Friction Washer
Unavailable
24
RH Seat Corner | Apple Green, B-230
269001235
Unavailable
24
LH Seat Corner | Apple Green, B-230
269001236
Unavailable
25
Était Was 413705800 Loctite 414 , 29.5 c.c
219704463
$27.99
26
Strap
269502417
$17.69
27
Seat Corner | Apple Green, B-230
269001237
Unavailable
28
SEAT STUD - Call your local BRP dealership
291000945
Unavailable
29
Hex. Jam Nut M10
232100600
$2.22
30
Flat Washer 10 mm, Stainless
234002600
$2.22
31
NUT HOUSING ASS'Y - Call your local BRP dealership | Includes 60 to 61
271000598
Unavailable
32
HEX. ELASTIC NUT M10 - Call your local BRP dealership
232501600
Unavailable
33
Staple
293730005
Unavailable
