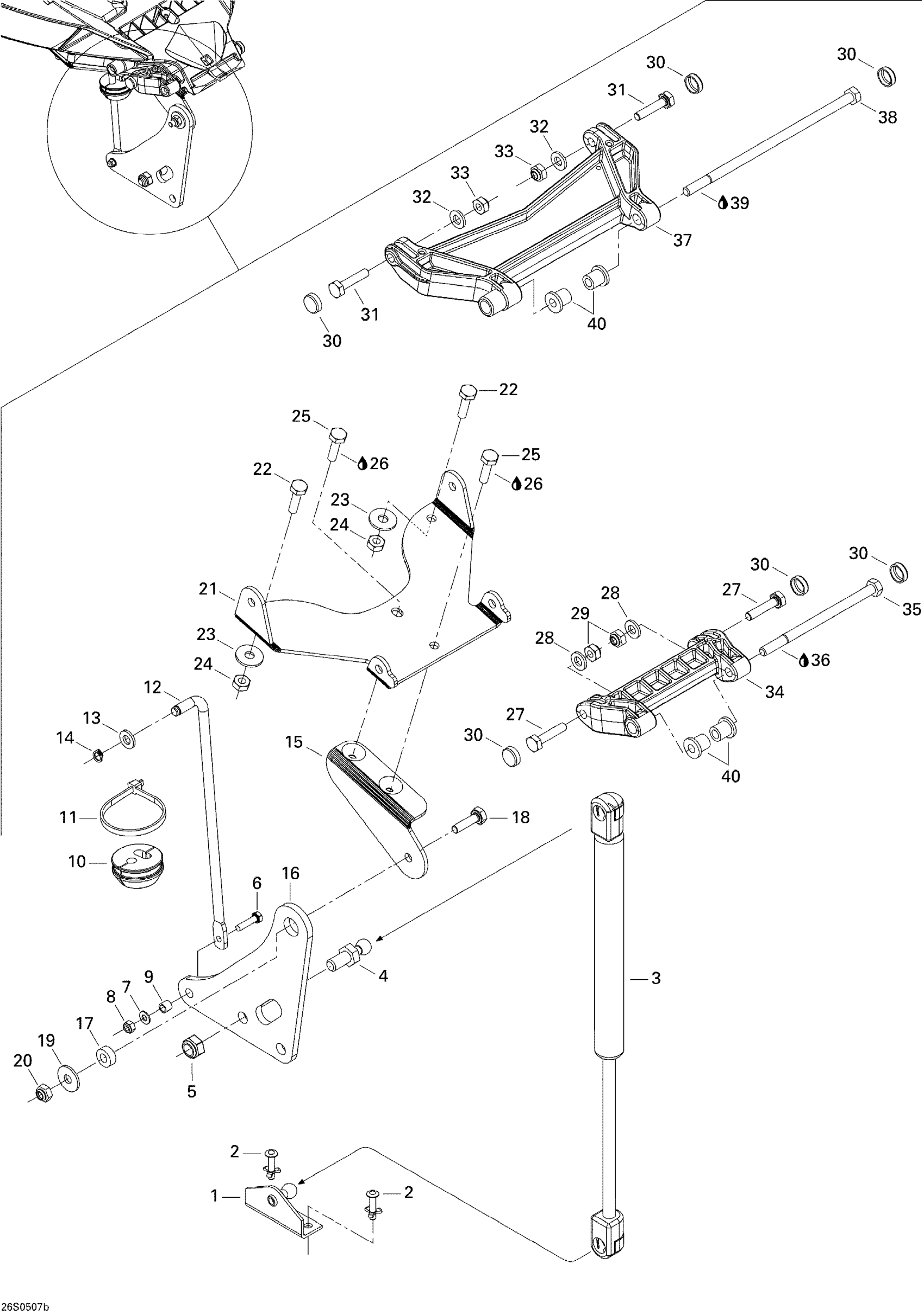

Sea-doo RXT, 2005 09- Front Storage Compartment 2 Diagram
#
Description
Price
1
SHOCK SUPPORT - Call your local BRP dealership
291002124
Unavailable
2
Avdel Rivet 3/16"
293150037
$0.56
3
Gas Shock Ass'y
269501625
$77.99
4
Ball Head Stud
250300016
$14.81
5
Hex. Elastic Nut M8
232581600
$1.48
6
Hex. Screw M4 X 16 | Europe
207141660
$1.47
7
Flat Washer 4 mm, Stainless
234041600
$1.15
8
Elastic Stop Nut M4
232541600
$1.15
9
SPACER - Call your local BRP dealership
269501130
Unavailable
10
CABLE GROMMET - Call your local BRP dealership | North America
293720070
Unavailable
11
Tie-Rap 180 mm
414115200
$0.11
12
ROD - Call your local BRP dealership
269500842
Unavailable
13
Stainless Flat Washer M6
234061600
$0.33
14
CIRCLIP 6 MM - Call your local BRP dealership | North America
293370005
Unavailable
15
SUPPORT LEVER - Call your local BRP dealership
269501742
Unavailable
16
LEVER - Call your local BRP dealership
269501576
Unavailable
17
SPACER - Call your local BRP dealership
269501172
Unavailable
18
Hex. Forming Screw M6 X 20
207162060
$1.29
19
Flat Washer M6, Stainless
234062600
$0.77
20
Hex. Elastic Stop Nut M6
232561600
$1.15
21
Pivot Support
269500934
Unavailable
22
Hex. Forming Screw M6 X 20
207162060
$1.29
23
Flat Washer M6, Stainless
234062600
$0.77
24
Hex. Elastic Stop Nut M6
232561600
$1.15
25
Hex. Forming Screw M6 X 20
207162060
$1.29
26
Loctite 243, 10 ml
293800060
$21.49
27
HEX. SPECIAL SCREW M6 X 25 - Call your local BRP dealership
211000022
Unavailable
28
Stainless Flat Washer M6
234061600
$0.33
29
Hex. Elastic Stop Nut M6
232561600
$1.15
30
BLACK SNAP CAP - Call your local BRP dealership
414436900
Unavailable
31
HEX. SPECIAL SCREW M6 X 25 - Call your local BRP dealership
211000022
Unavailable
32
Stainless Flat Washer M6
234061600
$0.33
33
Hex. Elastic Stop Nut M6
232561600
$1.15
34
FRONT ARM - Call your local BRP dealership
269501482
$19.99
35
Hex. Screw M6 X 100
230060060
$7.41
36
Loctite 243, 10 ml
293800060
$21.49
37
REAR ARM - Call your local BRP dealership
269501481
Unavailable
38
Hex. Screw M6 X 150
230065060
$10.16
39
Loctite 271, 10 ml
293800005
$26.99
40
Sleeve
269500706
$4.65
