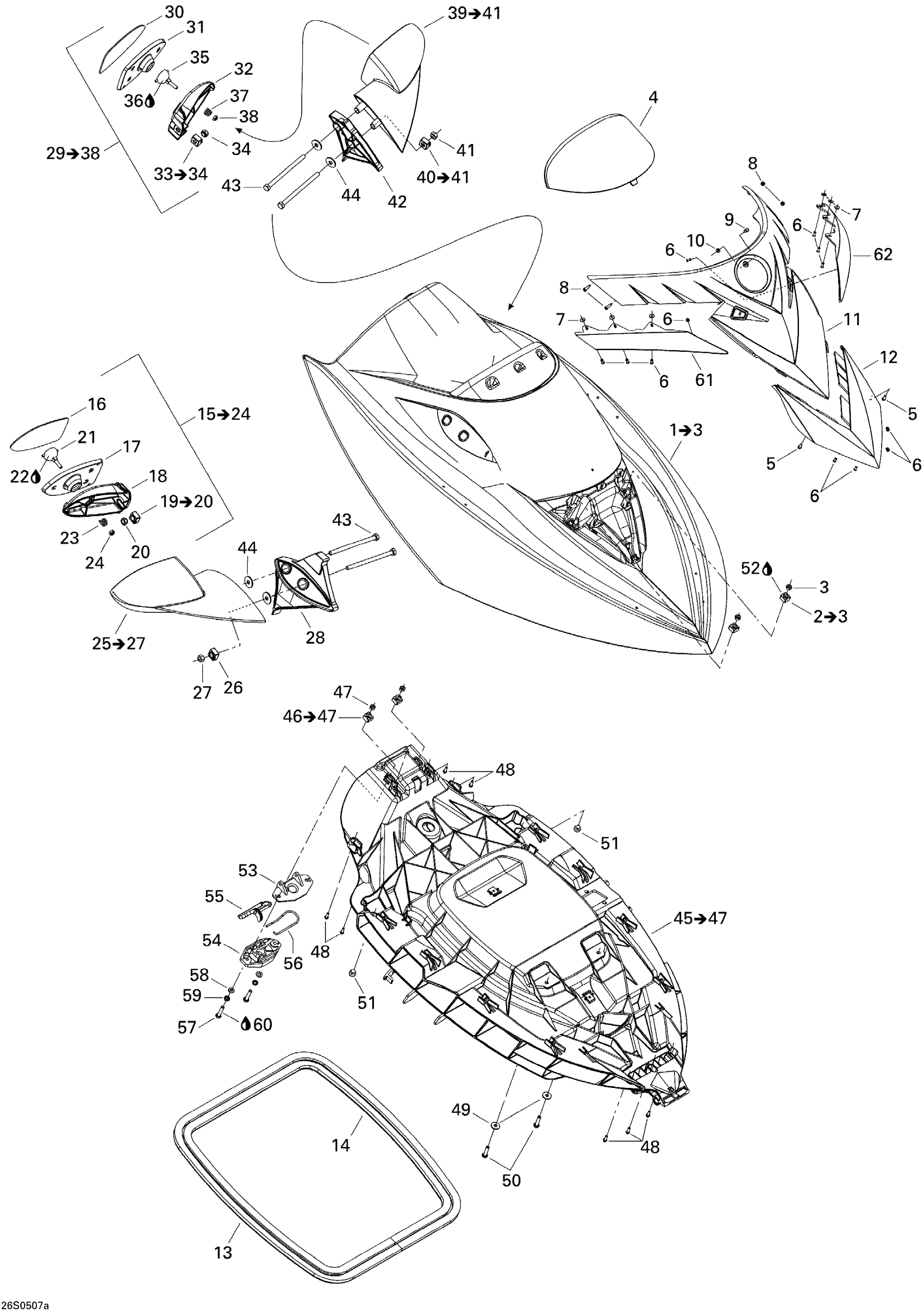

Sea-doo RXT, 2005 09- Front Storage Compartment 1 Green Diagram
#
1
Upper Storage Cover, Apple Green | Includes 1 to 3 / Apple Green, B-230
269501399
Unavailable
2
M6 Nut Housing Ass'y | Includes 290 to 290b
269500252
$7.86
3
Hex. Nut M6
232061600
$1.15
4
Deflector
269501189
Unavailable
5
Hex. Flange Screw K40 X 13
241141360
$0.67
6
RIVET_POP 1/8 X ,438 - Call your local BRP dealership
293150001
Unavailable
7
WASHER - Call your local BRP dealership
293150007
Unavailable
8
Hex. Flange Screw K40 X 13
241141360
$0.67
9
RIVET_POP 5/32 - Call your local BRP dealership
293150029
Unavailable
10
Flat Washer 4 mm
234040600
$0.55
11
Front Fascia
269501354
Unavailable
12
FRONT DEFLECTOR, CHROME - Call your local BRP dealership
269501407
Unavailable
13
Was 293200017 Neoprene Seal
219704365
$149.99
14
Was 293200017 Neoprene Seal
219704365
$149.99
15
RH Mirror
269501328
Unavailable
16
Not Available As Spare Part - Friction Washer
Unavailable
17
Mirror Frame
269501330
Unavailable
18
Housing Support
269501331
Unavailable
19
Elastic Nut Housing M8 | Included 10a6 to 10a6a
269501943
$6.67
20
Not Available As Spare Part - Friction Washer
Unavailable
21
MIRROR BALL JOINT - Call your local BRP dealership
269501333
Unavailable
22
Synthetic Grease, 400 G
293550010
Unavailable
23
Mirror Spring
269501334
Unavailable
24
Hex. Elastic Stop Nut M6
232561600
$1.15
25
RH Mirror Shell, Apple Green | Includes 25 to 27 / Apple Green, B-230
269501424
Unavailable
26
Elastic Nut Housing M8 | Included 10a6 to 10a6a
269501943
$6.67
27
Not Available As Spare Part - Friction Washer
Unavailable
28
RH Spacer
269500950
Unavailable
29
LH Mirror Ass'y | GTI SE, Includes 12 to 20
269501337
Unavailable
30
LH Mirror
269501338
Unavailable
31
Mirror Frame
269501330
Unavailable
32
Housing Support
269501331
Unavailable
33
Elastic Nut Housing M8 | Included 10a6 to 10a6a
269501943
$6.67
34
Not Available As Spare Part - Friction Washer
Unavailable
35
MIRROR BALL JOINT - Call your local BRP dealership
269501333
Unavailable
36
Synthetic Grease, 400 G
293550010
Unavailable
37
Mirror Spring
269501334
Unavailable
38
Hex. Elastic Stop Nut M6
232561600
$1.15
39
LH Mirror Shell, Apple Green | Includes 39 to 41 / Apple Green, B-230
269501426
Unavailable
40
Elastic Nut Housing M8 | Included 10a6 to 10a6a
269501943
$6.67
41
Not Available As Spare Part - Friction Washer
Unavailable
42
LH Spacer
269500951
Unavailable
43
HEX. SCREW M8 X 120 - Call your local BRP dealership
230082060
Unavailable
44
Flat Washer 8 mm, Stainless
234082600
$2.43
45
LOWER STORAGE COVER ASS'Y - Call your local BRP dealership | Includes 39 to 40
269501413
Unavailable
46
M6 Nut Housing Ass'y | Includes 290 to 290b
269500252
$7.86
47
Hex. Nut M6
232061600
$1.15
48
Hex. Flange Screw K40 X 13
241141360
$0.67
49
Flat Washer M6, Stainless
234062600
$0.77
50
Hex. Screw M6 X 25, Scotch Grip | With Catalyst
207362560
$1.47
51
Rubber Bumper
293830005
$8.09
52
Not Available As Spare Part - Friction Washer
Unavailable
53
Latch Ass'y
269700109
$24.99
54
Latch Ass'y
269700109
$24.99
55
Latch Ass'y
269700109
$24.99
56
Latch Spring
269700017
$9.19
57
Hex. Screw M6 X 30
207063060
$1.89
58
Stainless Flat Washer M6
234061600
$0.33
59
Lock Washer Helical M6
234161601
$1.15
60
Loctite 243, 10 ml
293800060
$21.49
61
RH DEFLECTOR, CHROME - Call your local BRP dealership
269501409
Unavailable
62
LH DEFLECTOR, CHROME - Call your local BRP dealership
269501410
Unavailable
