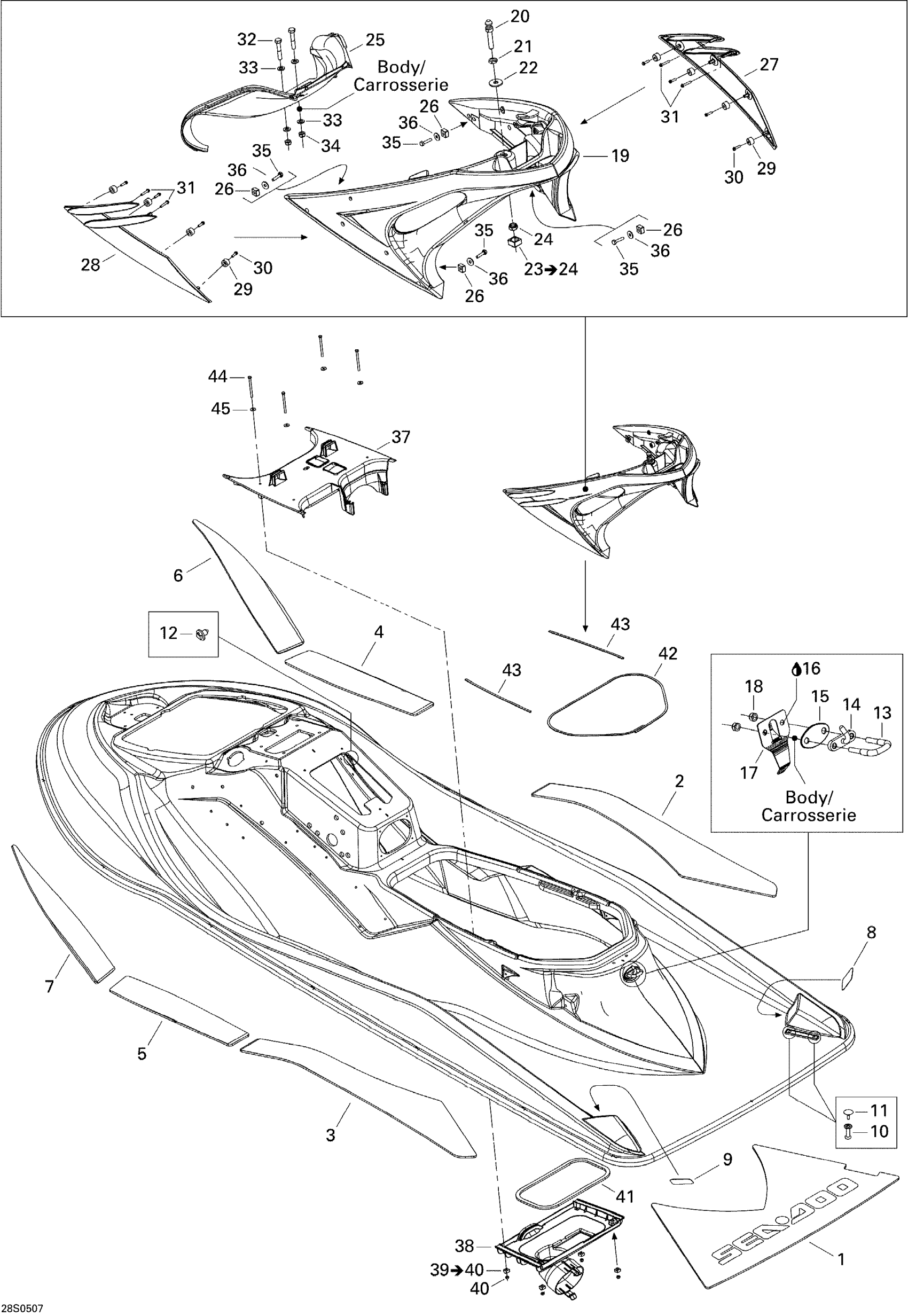

Sea-doo RXT, 2005 09- Body, Rear View Diagram
#
1
Rear Carpet
291002140
Unavailable
2
RH Center Rear Carpet
291002162
Unavailable
3
LH Center Rear Carpet
291002164
Unavailable
4
RH Center Front Carpet
291002166
Unavailable
5
LH Center Front Carpet
291002168
Unavailable
6
RH Front Carpet
291002170
Unavailable
7
LH Front Carpet
291002172
Unavailable
8
RH ANTI-SKID - Call your local BRP dealership
291001758
Unavailable
9
LH Anti-Skid
291001759
Unavailable
10
Rivet 1/8"
293150016
$0.40
11
Black, Snap Cap
293000014
$1.09
12
Mount Dart
293730040
$1.04
13
U-CLAMP - Call your local BRP dealership
292000011
Unavailable
14
Hook | Package LTD
291002351
$69.99
15
Black, Finition Plate
291001386
$10.99
16
Silicone Sealant 51388, 300 ml
296000309
$36.99
17
Retainer Plate
291001747
Unavailable
18
Hex. Elastic Nut M8
232581600
$1.48
19
Grab Handle
291002135
Unavailable
20
SEAT STUD - Call your local BRP dealership
291000945
Unavailable
21
Hex. Jam Nut M10
232100600
$2.22
22
Flat Washer 10 mm, Stainless
234002600
$2.22
23
NUT HOUSING ASS'Y - Call your local BRP dealership | Includes 60 to 61
271000598
Unavailable
24
HEX. ELASTIC NUT M10 - Call your local BRP dealership
232501600
Unavailable
25
HANDLE COVER, BLACK - Call your local BRP dealership
269000749
Unavailable
26
M6 Nut Housing Ass'y | Includes 7r to 7r2
269500725
$4.55
27
RH Grab Handle Moulding, Chrome
269501417
Unavailable
28
LH Grab Handle Moulding, Chrome
269501418
Unavailable
29
Spacer
291001203
$13.49
30
Hex. Flange Screw K40 X 16
241141660
$1.48
31
Hex. Flange Screw K40 X 25
241142560
$2.64
32
Hex. Screw M8 X 45
207084560
$3.38
33
Stainless, Flat Washer 8 mm
234081600
$0.55
34
Hex. Elastic Nut M8
232581600
$1.48
35
Hex. Flange Screw M6.81 X 25, Plastite
243162560
$2.19
36
Flat Washer M6, Stainless
234062600
$0.77
37
UPPER BRIDGE, BLACK - Call your local BRP dealership
291002136
Unavailable
38
Lower Bridge, Black
291002138
Unavailable
39
Housing Nut M6 | Included 550f to 550f2
269502408
$6.74
40
Elastic Stop Nut M6, Brass
232561200
$4.23
41
GASKET - Call your local BRP dealership
293200090
Unavailable
42
GASKET PAC = 1.0m - Call your local BRP dealership
293250008
Unavailable
43
GASKET PAC = 1.0m - Call your local BRP dealership
293250008
Unavailable
44
Hex. Screw M6 X 75
207167560
Unavailable
45
Flat Washer M6, Stainless
234062600
$0.77
