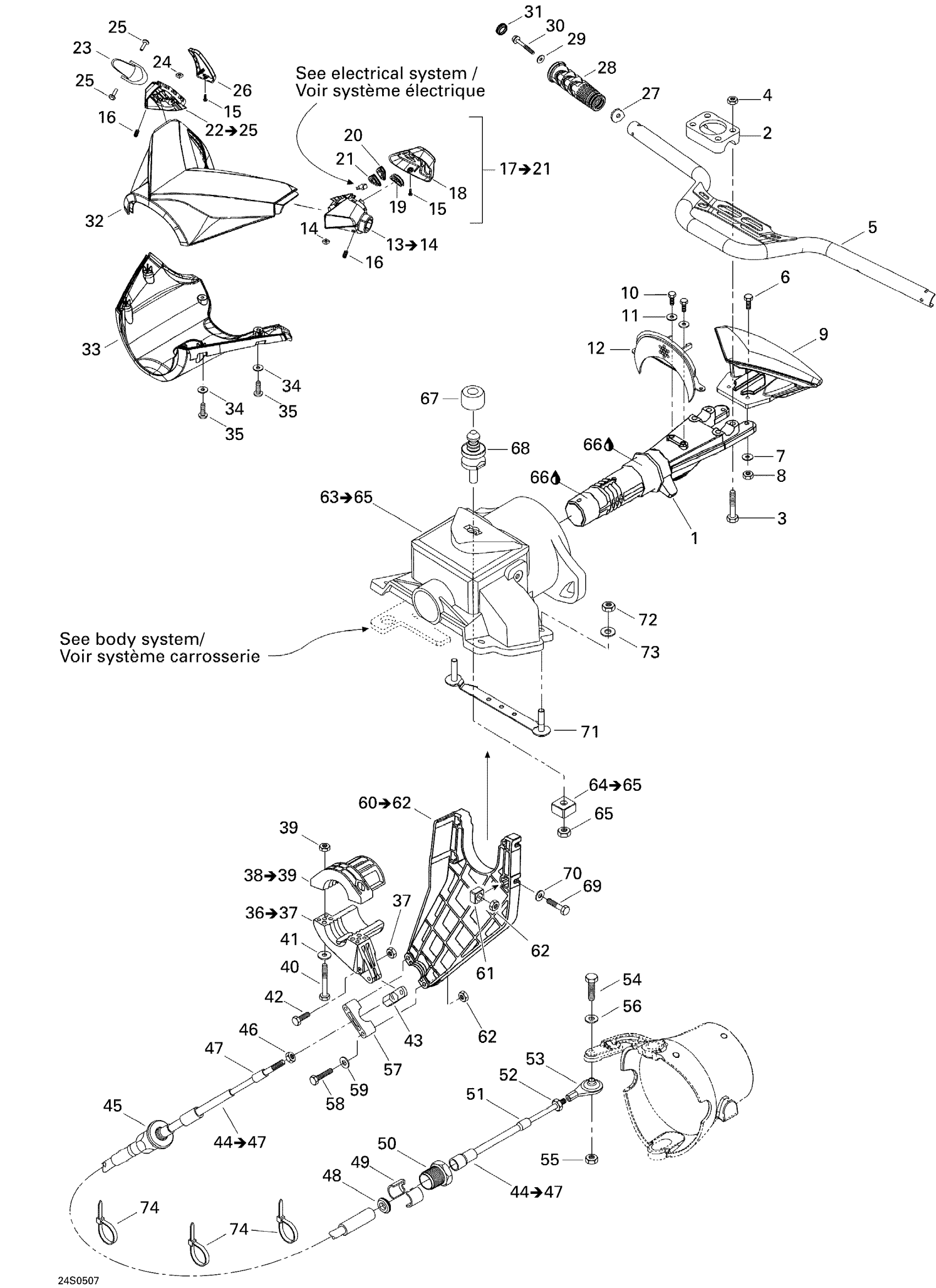

Sea-doo RXT, 2005 07- Steering System Diagram
#
1
Steering Stem
277000562400
Unavailable
2
STEERING CLAMP - Call your local BRP dealership
277000142
Unavailable
3
HEX. SCREW M8 X 50 - Call your local BRP dealership
207085060
Unavailable
4
Hex. Elastic Nut M8
232581600
$1.48
5
Handlebar
277001333
Unavailable
6
Hex. Screw M6 X 30
207063060
$1.89
7
Stainless Flat Washer M6
234061600
$0.33
8
Hex. Elastic Stop Nut M6
232561600
$1.15
9
Handle Pad | Viper Red, B-267
277001345
Unavailable
10
HEX. FLANGED SCREW 1/4-20 X 1/2 - Call your local BRP dealership
211000036
Unavailable
11
Flat Washer M6, Stainless
234062600
$0.77
12
PLATE - Call your local BRP dealership
277000549
Unavailable
13
HOUSING ASS'Y - Call your local BRP dealership | Includes 8 to 9
277001481
Unavailable
14
SQUARE NUT M6 - Call your local BRP dealership
232860600
Unavailable
15
PHILLIPS SCREW M3.9 X 9.5 - Call your local BRP dealership
209630960
Unavailable
16
Socket Head Screw M6 X 16
250000036
$9.00
17
LH Housing Cover Ass'y | WAKE, Includes 17 to 21
277001351
Unavailable
18
Not Available As Spare Part - Friction Washer
Unavailable
19
Stop Knob
278001713
$18.49
20
MODE KNOB - Call your local BRP dealership
278001714
Unavailable
21
SET KNOB - Call your local BRP dealership
278001715
Unavailable
22
THROTTLE HOUSING ASS'Y - Call your local BRP dealership | Includes 16 to 19
277001483
Unavailable
23
THROTTLE HANDLE - Call your local BRP dealership
277001485
Unavailable
24
SQUARE NUT M6 - Call your local BRP dealership
232860600
Unavailable
25
PIN - Call your local BRP dealership
277000381
Unavailable
26
HOUSING COVER - Call your local BRP dealership
277001355
Unavailable
27
Insert Grip Handle
277001863
$8.83
28
Handle Grip | Viper Red, B-267
277001347
Unavailable
29
Flat Washer M6, Stainless
234062600
$0.77
30
Hex. Screw M6 X 30, Scotch Grip
250000002
$0.92
31
Black, Cap
277000203
$9.39
32
UPPER STEERING COVER, BLACK - Call your local BRP dealership
277000952
Unavailable
33
LOWER STEERING COVER, BLACK - Call your local BRP dealership
277001145
Unavailable
34
Flat Washer M5, Stainless
234051600
$0.77
35
Hex. Flange Screw K40 X 16
241141660
$1.48
36
Steering Stem Arm | Includes 41 to 42
277000518
Unavailable
37
Hex. Elastic Stop Nut M6
232561600
$1.15
38
Arm Thrust | Includes 43 to 44
277000519
Unavailable
39
Hex. Elastic Stop Nut M6
232561600
$1.15
40
Hex. Screw M6 X 25
207162560
$1.47
41
Flat Washer M6, Stainless
234062600
$0.77
42
Hex. Screw M6 X 30
211000081
$3.59
43
Ball Joint
277001180
$35.99
44
Steering Cable | Includes 43 to 46
277001326
Unavailable
45
Ajustment Knob
277000782
$22.99
46
Hex. Nut 1/4"-28
211100056
$0.69
47
Terminal Wiper
277000441
$11.99
48
Rubber Washer
293830063
$1.90
49
Half Ring
277001527
$10.37
50
Steering Cable Lock This part replaces 277000784.
277001729
$13.22
51
Terminal Wiper
277000441
$11.99
52
Hex. Nut 1/4"-28
211100056
$0.69
53
Ball Joint
277000775
$51.99
54
Hex. Screw M6 X 35
207063560
$2.22
55
Hex. Elastic Stop Nut M6
232561600
$1.15
56
Stainless Flat Washer M6
234061600
$0.33
57
SUPPORT THRUST - Call your local BRP dealership This part replaces 277000162.
277001528
Unavailable
58
Hex. Screw M6 X 50
207065060
$2.22
59
Stainless Flat Washer M6
234061600
$0.33
60
CABLE SUPPORT - Call your local BRP dealership | Includes 56 to 58
277001522
Unavailable
61
M6 Nut Housing Ass'y | Includes 290 to 290b
269500252
$7.86
62
Hex. Nut M6
232061600
$1.15
63
STEERING SUPPORT - Call your local BRP dealership | Includes 59 to 61
277001471
Unavailable
64
NUT HOUSING ASS'Y - Call your local BRP dealership | Includes 60 to 61
271000598
Unavailable
65
HEX. ELASTIC NUT M10 - Call your local BRP dealership
232501600
Unavailable
66
Synthetic Grease, 400 G
293550010
Unavailable
67
RUBBER PAD - Call your local BRP dealership
293830078
Unavailable
68
Latch Stud
291002147
Unavailable
69
Hex. Forming Screw M6 X 20
207162060
$1.29
70
Stainless Flat Washer M6
234061600
$0.33
71
STEERING SUPPORT - Call your local BRP dealership
277001072
Unavailable
72
Hex. Elastic Nut M8
232581600
$1.48
73
Stainless, Flat Washer 8 mm
234081600
$0.55
74
Tie Wrap 368 mm
293750008
$1.04
