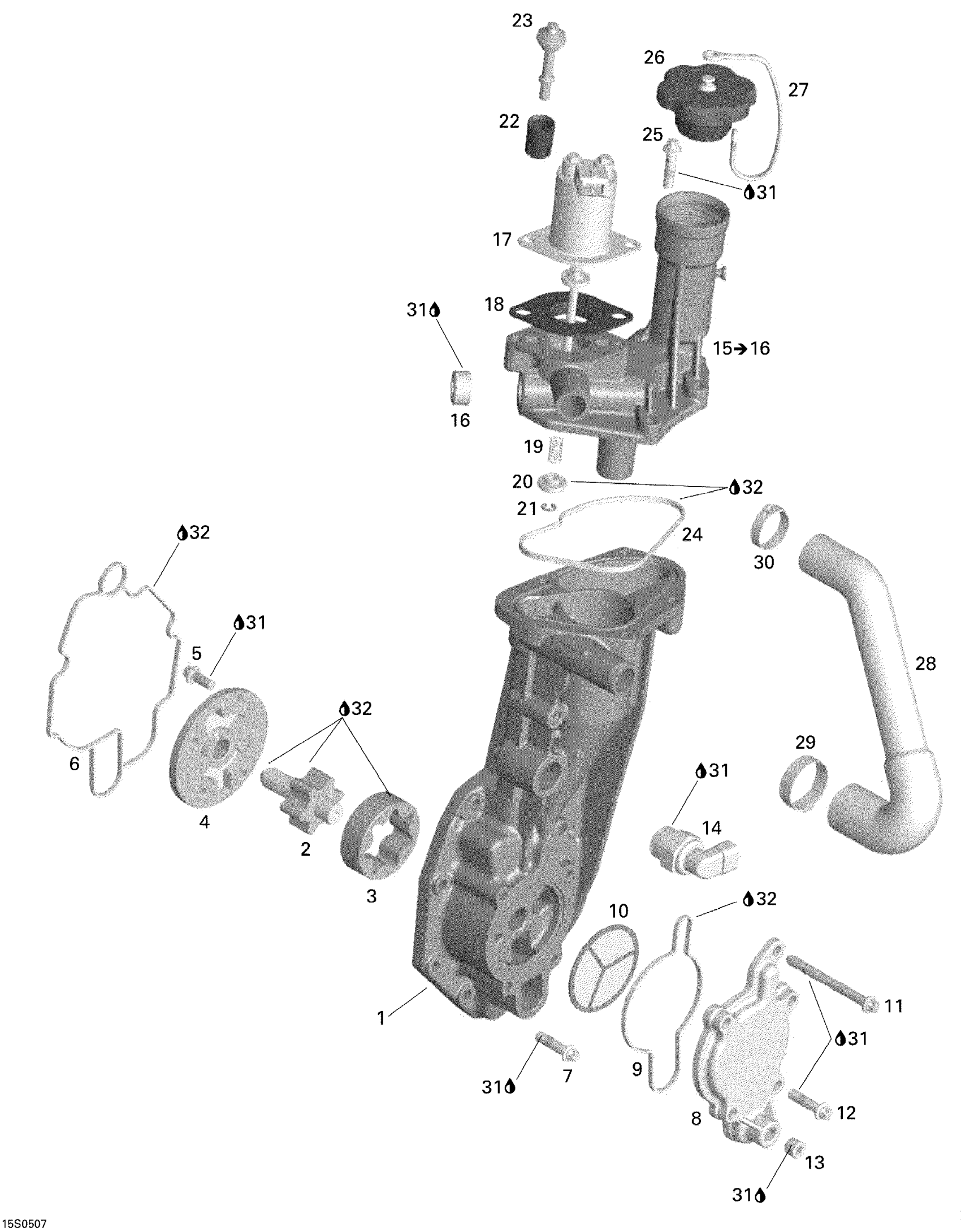

Sea-doo RXT, 2005 02- Oil Separator Diagram
#
Description
Price
1
OIL PUMP HOUSING - Call your local BRP dealership
420956762
Unavailable
2
Oil Pump Shaft
420837543
$61.49
3
Oil Pump Rotor 16 mm
420956675
$36.99
4
Oil Pump Cover
420811851
$33.99
5
Torx Flange Screw M6 X 16
420641048
$2.96
6
GASKET - Call your local BRP dealership
420631480
Unavailable
7
Torx Flange Screw M6 X 25
420641238
$3.27
8
Oil Sieve Cover
420811893
Unavailable
9
GASKET - Call your local BRP dealership
420630232
Unavailable
10
OIL SIEVE - Call your local BRP dealership
420256570
Unavailable
11
TORX FLANGED SCREW M6 X 65 - Call your local BRP dealership
420641518
Unavailable
12
Torx Flange Screw M6 X 25
420641238
$3.27
13
Plug Screw M10 X 1
420641323
$14.28
14
Interr.Pression*Oil Tk Pres Sw This part replaces 420256885.
420256886
$51.99
15
Oil Separator Cover | Includes 15 to 16
420811967
Unavailable
16
Plug Screw M20 X 1.5
420641317
$14.22
17
Shut Off, Solenoid
420956666
Unavailable
18
Gasket
420960820
Unavailable
19
COMPRESSION SPRING - Call your local BRP dealership
420939250
Unavailable
20
VALVE DISC - Call your local BRP dealership
420856055
Unavailable
21
RETAINING RING - Call your local BRP dealership
420845620
Unavailable
22
DISTANCE SLEEVE - Call your local BRP dealership
420947290
Unavailable
23
Allen Screw M6 x 30,5
420440561
$4.44
24
Gasket
420630222
Unavailable
25
Torx Flange Screw M6 X 25
420641238
$3.27
26
Plug Cover, Yellow
420956923
$23.49
27
Retaining Band
420660620
$7.41
28
Formed Hose
420956975
Unavailable
29
Gear Clamp
420851673
$5.71
30
Oeticker Gear Clamp, 25.6-706R
509000442
$5.19
31
Loctite 243, 10 ml
293800060
$21.49
32
OIL 4T 12X1 BLEND QUART - Call your local BRP dealership
293600121
Unavailable
