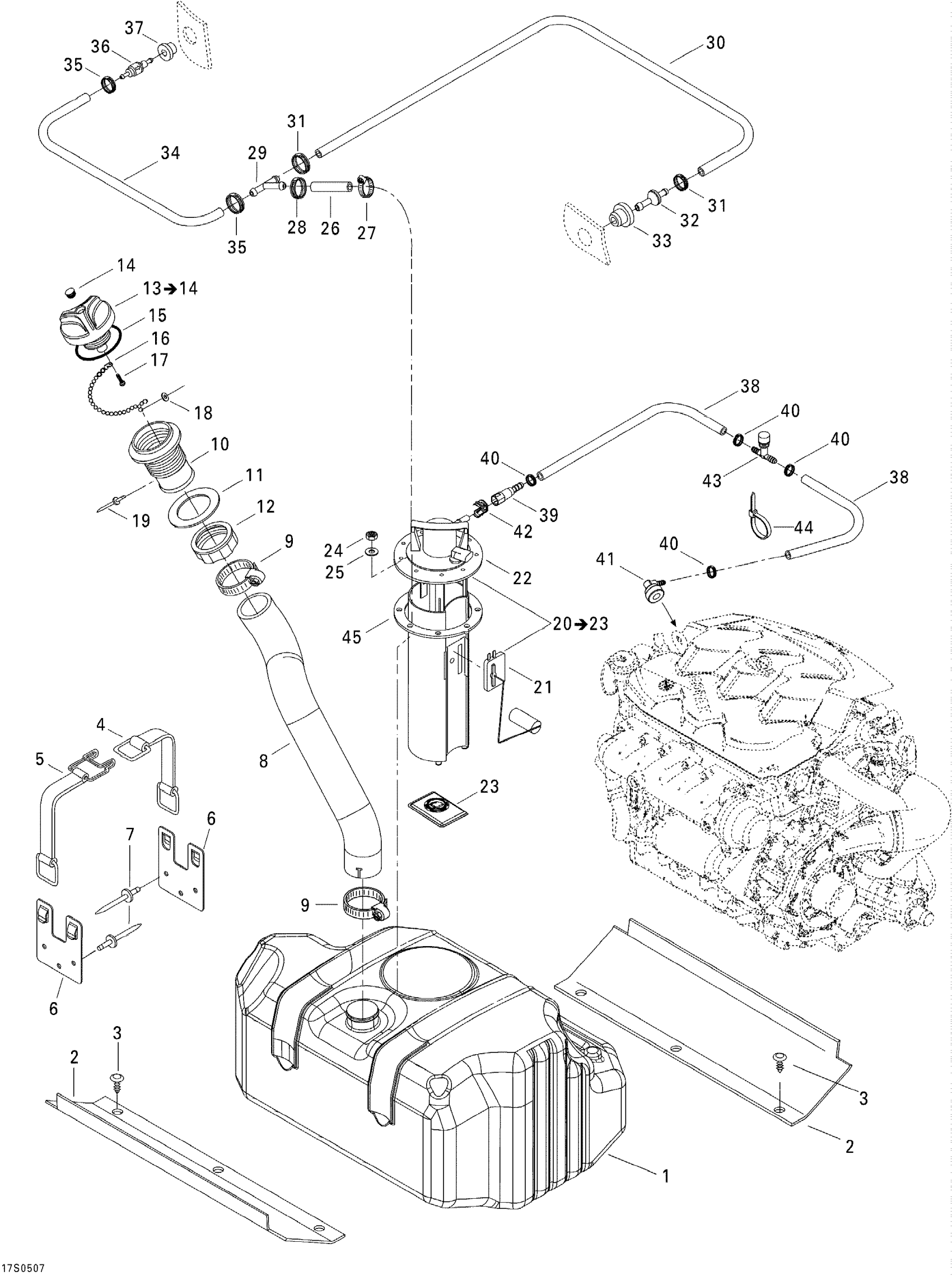

Sea-doo RXT, 2005 Fuel System Diagram

#

Description
Price

1

Fuel Tank

275500480

Unavailable

2

RUBBER PAD - Call your local BRP dealership

293830094

Unavailable

3

Black, Dart

293730006

$1.49

4

Fuel Tank Strap

293850093

$21.99

5

Fuel Tank Strap

293850094

$22.49

6

STRAP CLIP - Call your local BRP dealership

293850066

Unavailable

7

Avdel Rivet 3/16"

293150037

$1.49

8

FILLER NECK HOSE - Call your local BRP dealership

275500648

Unavailable

9

Tridon Clamp

293650023

$13.99

10

Filler Neck, Fuel

275500231

$14.75

11

Gasket

293250029

$15.49

12

Filler Neck Nut, Fuel

211100012

$14.49

13

Fuel Tank Cap, Black | Includes 26 to 27

275500430

$28.99

14

Black, Snap Cap

293000034

$9.59

15

GASKET - Call your local BRP dealership This part replaces 293250075.

293250211

Unavailable

16

Fuel Cap Chain

275500974

$19.99

17

Screw K40 X 10

241140060

$1.49

18

Flat Washer M3, Stainless

234032600

$1.49

19

Pop Rivet 1/8"

390407900

$1.49

20

FUEL PUMP MODULE ASS'Y - Call your local BRP dealership | Includes 47 to 49

270600056

Unavailable

21

SENSOR LEVER - Call your local BRP dealership

270600051

Unavailable

22

Not Available As Spare Part - Friction Washer

Unavailable

23

Fuel Filter, Bosch

219700368

$39.99

24

Elastic Stop Nut 5 mm

232551200

$1.49

25

Flat Washer 5 mm, Stainless

234052400

$2.89

26

Was 275500549 Hose 1/4"

219704357

$199.99

27

Tridon Gear Clamp

293650170

$2.00

28

Oetiker Gear Clamp

293650025

$3.19

29

Y-Fitting

293710059

$9.89

30

Was 275500549 Hose 1/4"

219704357

$199.99

31

Oetiker Gear Clamp

293650025

$3.19

32

Check Valve

275500398

$11.49

33

Grommet

293720029

$1.69

34

Was 275500549 Hose 1/4"

219704357

$199.99

35

Oetiker Gear Clamp

293650025

$3.19

36

Check Valve

275500505

$32.99

37

Grommet

293720029

$1.69

38

HOSE 5/16 - Call your local BRP dealership

204560396

Unavailable

39

CONNECTOR BOX - Call your local BRP dealership

275500428

Unavailable

40

Oetiker Clamp

293650011

$3.19

41

Elbow Fitting 90°

293710105

$14.49

42

STOPPER CONNECTOR - Call your local BRP dealership

275500429

Unavailable

43

Bleed Valve

293710104

Unavailable

44

Tie-Rap 180 mm

414115200

$1.49

45

Gasket

293250088

$15.49
