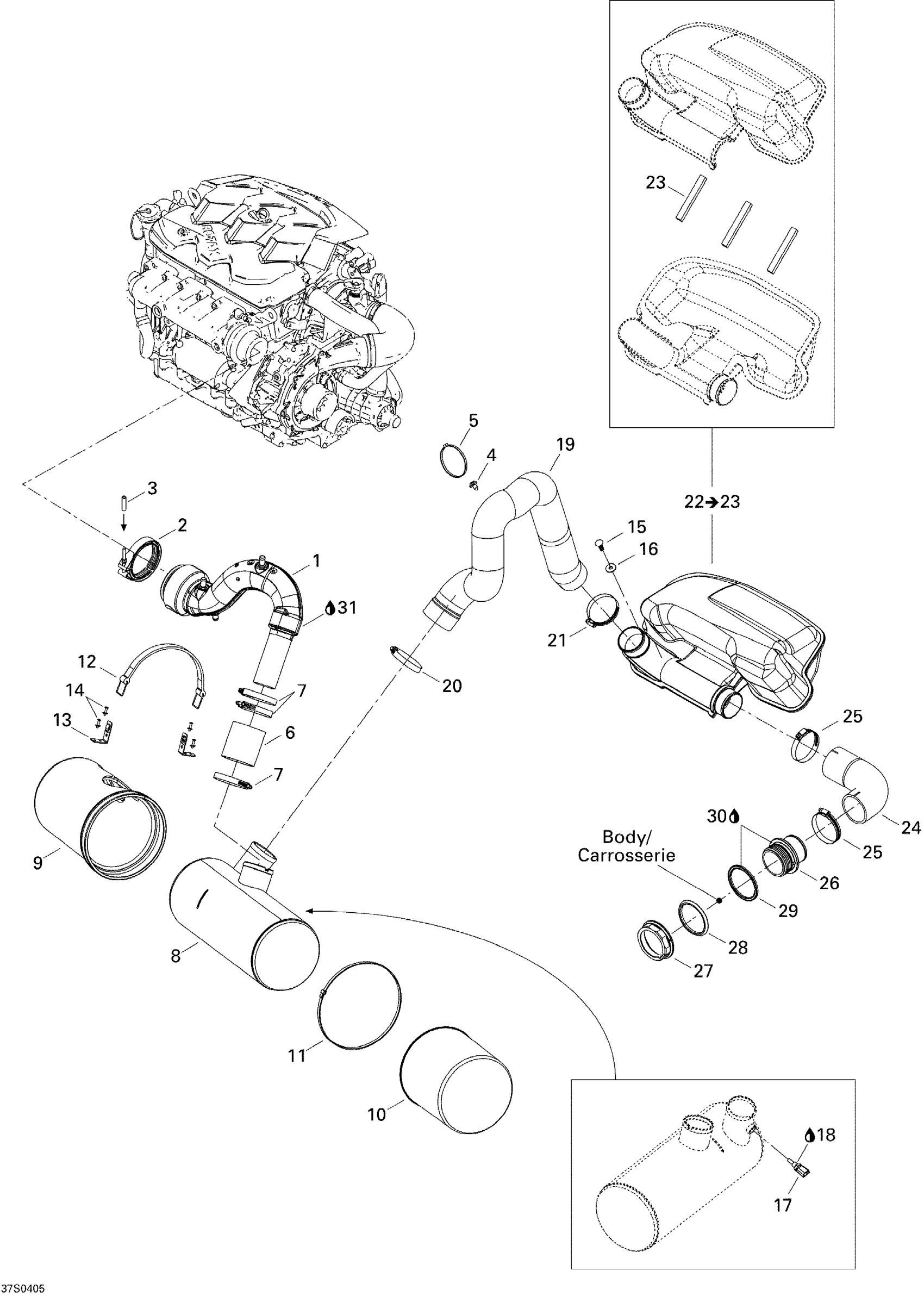

Sea-doo RXT, 2005 01- Exhaust System Diagram
#
Description
Price
1
EXHAUST PIPE - Call your local BRP dealership
274001049
Unavailable
2
Exhaust Clamp This part replaces 274000959.
274001472
$58.99
3
Polyurethane Hose 10000Mm Long
219704410
$56.99
4
Mount Dart
293730040
$1.04
5
Tie Wrap 368 mm
293750008
$1.04
6
Exhaust Hose
274001302
$35.99
7
Tridon Clamp
293650179
$11.49
8
MUFFLER_EXHAUST - Call your local BRP dealership
274001095
Unavailable
9
Front Muffler Cover
274001008
Unavailable
10
REAR MUFFLER COVER - Call your local BRP dealership
274000984
Unavailable
11
WRAP_TIE 828 X 9 - Call your local BRP dealership
293750020
Unavailable
12
Fuel Tank Strap
293850036
$18.99
13
STRAP CLIP 90 - Call your local BRP dealership
293850076
Unavailable
14
Avdel Rivet 3/16"
293150037
$0.56
15
Dart, Black
293730004
Unavailable
16
Flat Washer 8 mm, Stainless
234082600
$2.43
17
Temperature Sensor
278002895
$39.99
18
Était/Was 293800038 Loctite 518, 50 ml
219704456
$53.99
19
Exhaust Hose
274001101
Unavailable
20
Tridon Clamp
293650179
$11.49
21
Tridon Clamp
293650064
$8.29
22
RH Resonator
274001045
$217.49
23
Neoprene Seal (1PAC=3M)
219704364
$27.49
24
REAR EXHAUST HOSE - Call your local BRP dealership
274001428
Unavailable
25
Tridon Clamp
293650064
$8.29
26
Exhaust Hose, Outlet
274001391
$29.49
27
Nut 72 mm
274000224
$16.34
28
STABILIZING WASHER - Call your local BRP dealership
274000225
Unavailable
29
GASKET - Call your local BRP dealership
293250041
Unavailable
30
Silicone Sealant 51388, 300 ml
296000309
$36.99
31
Sealant, Loctite, 80 ml | DS 650
293800090
$26.99
