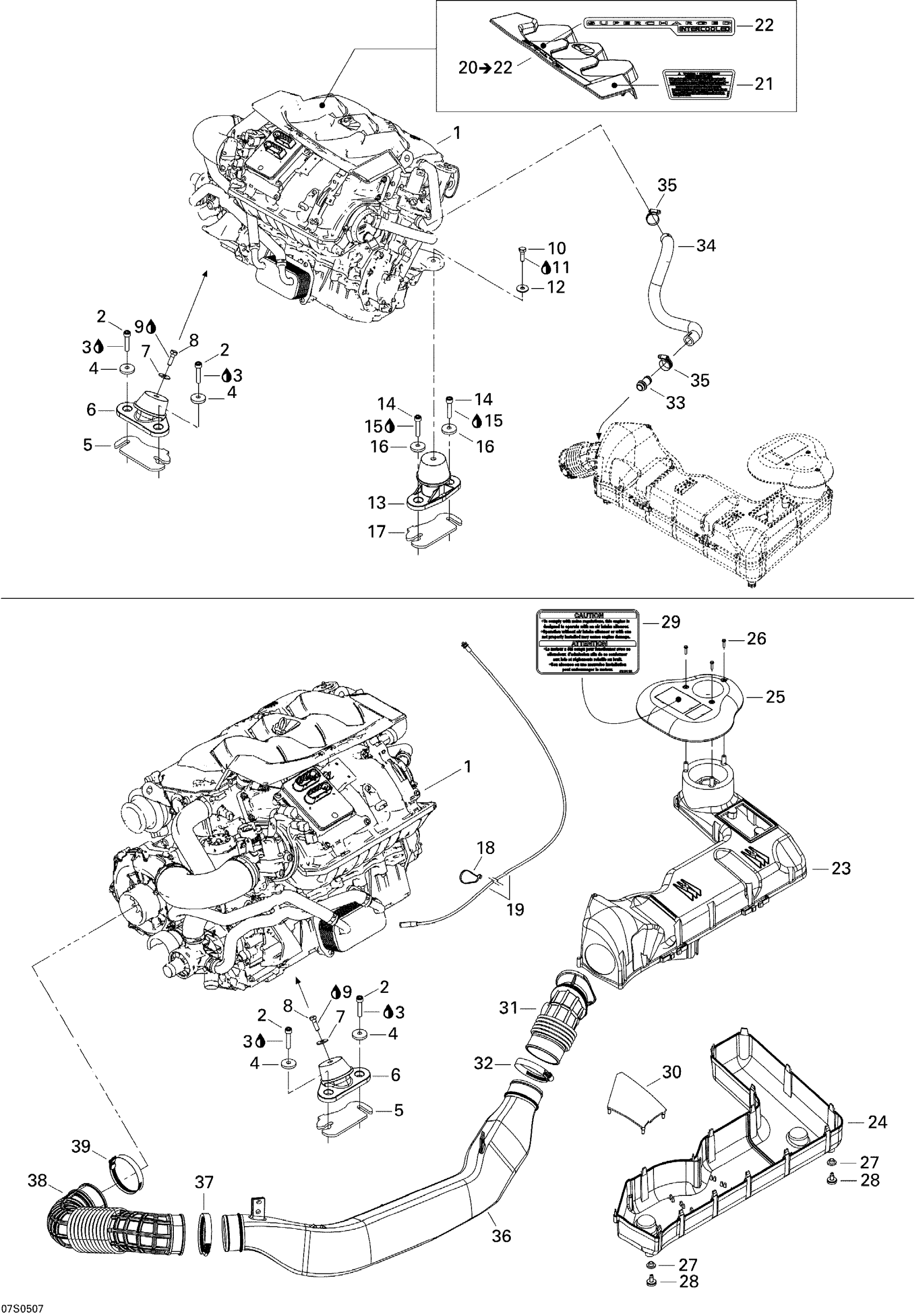

Sea-doo RXT, 2005 01- Engine And Air Intake Diagram
#
1
Rotax Engine 4 Strokes «1503 SCIC»
270000643
Unavailable
1
REBUILD-LONG BLOCK 1503IC - Call your local BRP dealership | Not Shown
421000654
Unavailable
2
SOCKET HEAD SCREW M8 X 40 - Call your local BRP dealership
205084060
Unavailable
3
Loctite 243, 10 ml
293800060
$21.49
4
Cone Washer
250200018
$5.61
5
Shim 1.3 mm
270000762
$12.99
6
Engine Support Ass'y
270001081
$109.99
7
Flat Washer 8 mm, Stainless
234082600
$2.43
8
HEX. SCREW M8 X 25 - Call your local BRP dealership
207182560
Unavailable
9
Loctite 243, 10 ml
293800060
$21.49
10
HEX. SCREW M8 X 25 - Call your local BRP dealership
207182560
Unavailable
11
Loctite 243, 10 ml
293800060
$21.49
12
Flat Washer 8 mm, Stainless
234082600
$2.43
13
Engine Support Ass'y
270001096
$97.99
14
SOCKET HEAD SCREW M8 X 40 - Call your local BRP dealership
205084060
Unavailable
15
Loctite 243, 10 ml
293800060
$21.49
16
Cone Washer
250200018
$5.61
17
Shim 1.3 mm
270000762
$12.99
18
Tie-Rap 180 mm
414115200
$0.11
19
THROTTLE CABLE - Call your local BRP dealership
277001121
Unavailable
20
COVER ASS'Y - Call your local BRP dealership | Includes 1 to 3 This part replaces 270000679.
270000677
Unavailable
21
WARNING DECAL, ENGINE OIL LEVEL - Call your local BRP dealership
219902674
Unavailable
22
IDENTIFICATION DECAL, MOTOR SCIC - Call your local BRP dealership
219902676
Unavailable
23
Upper Air Silencer - Call Your Local BRP Dealership
273000222
Unavailable
24
AIR SILENCER LOWER - Call your local BRP dealership
273000190
Unavailable
25
AIR SILENCER COVER - Call your local BRP dealership
273000266
Unavailable
26
Hex. Flange Screw K40 X 16
241141660
$1.48
27
GROMMET - Call your local BRP dealership
293720064
Unavailable
28
CHECK VALVE - Call your local BRP dealership
275500454
Unavailable
29
CAUTION DECAL, AIR INTAKE - Call your local BRP dealership This part replaces 516001191.
516002715
Unavailable
30
DEFLECTOR - Call your local BRP dealership
273000206
Unavailable
31
INTAKE HOSE - Call your local BRP dealership
273000186
Unavailable
32
Tridon Clamp
293650064
$8.29
33
Breather Valve
273000234
$14.49
34
FORMED HOSE - Call your local BRP dealership
275500645
Unavailable
35
Tridon Gear Clamp
293650051
$4.19
36
Intake Hose
273000214
Unavailable
37
Tridon Clamp
293650179
$11.49
38
INTAKE HOSE - Call your local BRP dealership | Without Catalyst
273000188
Unavailable
39
Tridon Clamp
293650179
$11.49
