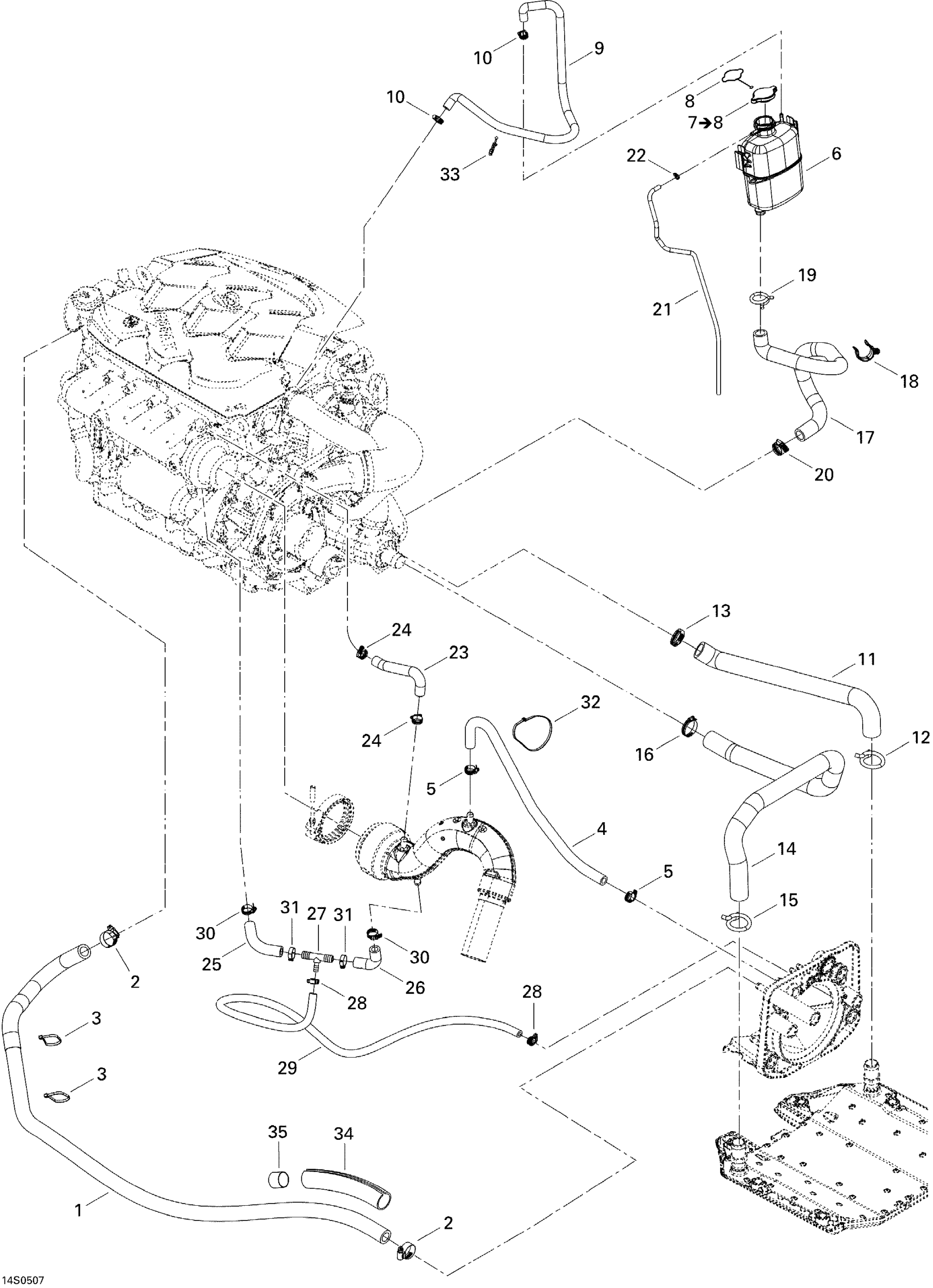

Sea-doo RXT, 2005 Cooling System Diagram

#

Description
Price

1

Formed Hose

276000138

Unavailable

2

Tridon Gear Clamp

293650051

$4.29

3

Tie-Rap 180 mm

414115200

$1.49

4

Was 276000001 Hose 12.5 mm

219704394

$52.99

5

Tridon Gear Clamp

293650172

$3.19

6

Coolant Tank

276000086

$114.99

7

Pressure Cap | Includes 720 to 720a

276000100

$25.99

8

Latch - Call your local BRP dealership | Not Shown

276000127

Unavailable

9

Hose

276000102

Unavailable

10

Tridon Gear Clamp

293650170

$2.00

11

RH Radiator Hose

276000248

$58.99

12

DAEMAR CLAMP SPRING - Call your local BRP dealership

293650114

Unavailable

13

Tridon Gear Clamp

293650045

$5.79

14

LH RADIATOR HOSE - Call your local BRP dealership

276000250

Unavailable

15

DAEMAR CLAMP SPRING - Call your local BRP dealership

293650114

Unavailable

16

Tridon Gear Clamp

293650045

$5.79

17

Formed Return Hose

276000115

Unavailable

18

Retainer

275500526

$4.69

19

Spring Clamp

293650115

$3.19

20

Tridon Gear Clamp

293650019

$5.99

21

Polyurethane Hose 10000Mm Long

219704410

$57.99

22

Tie Wrap 94 mm | 4X4

293750001

$1.49

23

UPPER FORMED HOSE - Call your local BRP dealership

276000103

Unavailable

24

Tridon Gear Clamp

293650172

$3.19

25

LOWER FORMED HOSE - Call your local BRP dealership

276000136

Unavailable

26

Hose, Bypass Lower | With Catalyst This part replaces 276000137.

276000455

$19.49

27

T-Fitting

293710116

$17.62

28

Tridon Gear Clamp

293650171

$3.19

29

Hose 8 mm

509000093

Unavailable

30

Tridon Gear Clamp

293650172

$3.19

31

Oetiker Clamp

293650012

$7.69

32

Tie Wrap 368 mm

293750008

$1.49

33

ATTACHE *BRACKET - Call your local BRP dealership

291000714

Unavailable

34

Tubing 25 MM 1000MM Long

219704402

$16.49

35

SHRINK TUBING - Call your local BRP dealership

276000125

Unavailable
