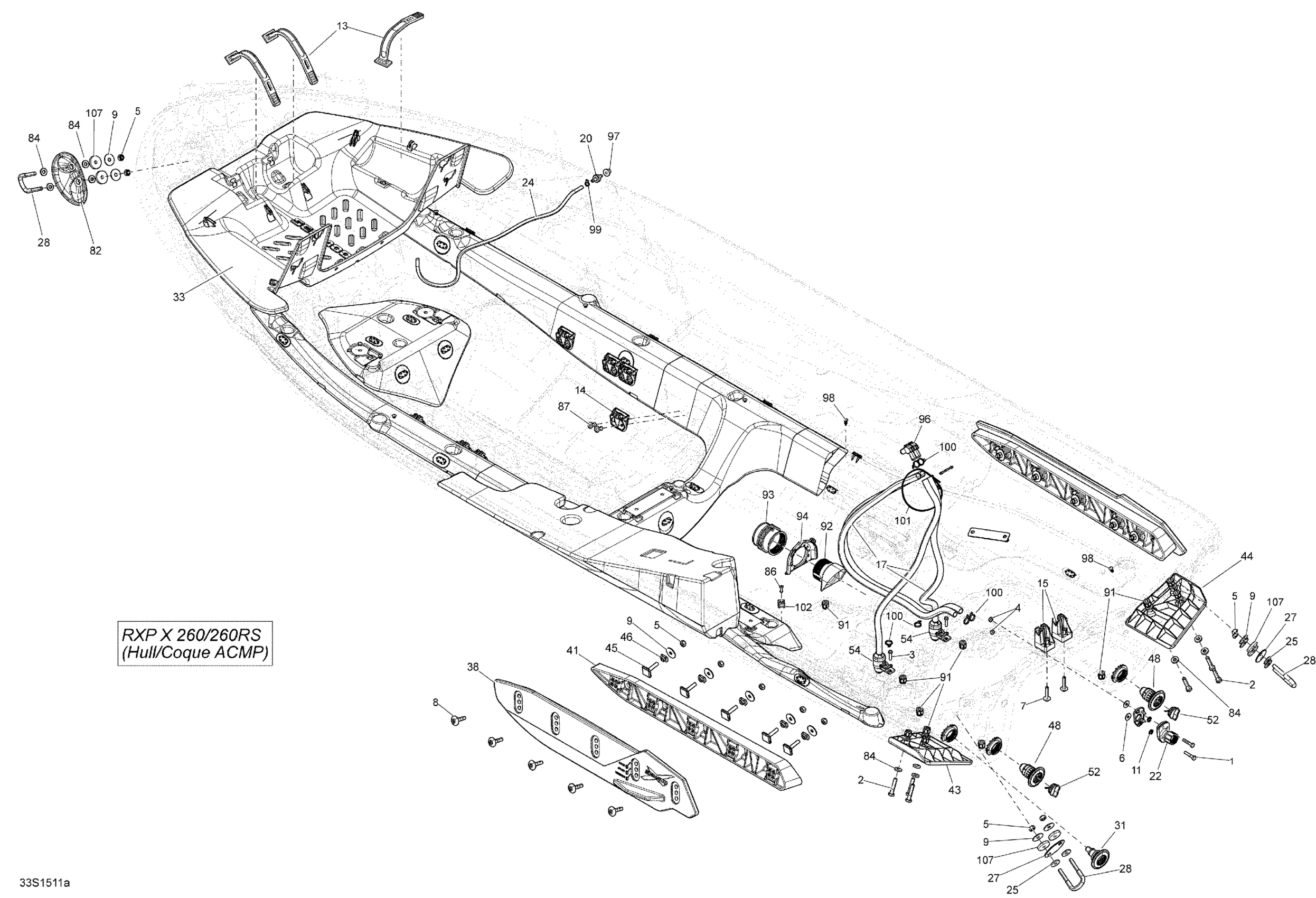

Sea-doo RXP-X 260 & RS, 2015 Hull ACMP_33S1511a Diagram

#

Description
Price

1

Hex. Screw M6 X 30

207063060

$1.89

2

Hex. Screw M8 X 40, Scotch Grip

207284060

$2.24

3

Hex. Screw 10-14 X 7/8”

211000023

$3.59

4

Elastic Stop Nut M6, Brass

232561200

$4.23

5

Hex. Elastic Nut M8 Brass

232581200

$2.22

6

Flat Washer M6, Stainless

234062600

$0.77

7

Hexagonal Cap Screw M6 X35

250000399

$4.44

8

Torx-Head Screw M8 X 35 This part replaces 250000572.

250000994

$3.91

9

Flat Washer 8 mm, Stainless

250200175

$3.06

11

Sealing Washer

250200114

$4.44

13

Strap

269502417

$17.69

14

Strap Retaining

270000933

$6.99

15

Strap Anchor

270000988

$10.28

17

Was 275500008 Hose 12 mm

219704356

$20.49

20

CHECK VALVE - Call your local BRP dealership This part replaces 275500167.

275500499

Unavailable

22

Cable Adaptor Ass'y

277001881

$19.99

24

HOSE 6 MM - Call your local BRP dealership

275500446

Unavailable

25

Flat Washer

279000336

$11.57

27

Black, Finition Plate

291001386

$10.99

28

U-Clamp

292000933

$59.49

31

Drain Neck Ass'y

292001317

$27.99

31a

Plastic Nut

292001825

$9.79

33

Not Available As Spare Part - Friction Washer

Unavailable

38

RH Sponson This part replaces 292001426.

292001871

$83.99

38

Sponson LH This part replaces 292001427.

292001872

$83.99

41

RH Spacer Sponson This part replaces 292001428.

292001873

$41.99

41

Spacer Sponson LH This part replaces 292001429.

292001874

$54.99

43

Trim Tab LH

292001430

$18.49

44

TrimTab RH

292001431

$18.49

45

Square Head Stud

292001471

$15.99

46

Push Nut

292001503

$1.15

48

Drain Ass'y

292001580

$16.49

48a

Plastic Nut

292001825

$9.79

52

Plug Ass'y | Includes 300f to 300f2

292002022

$14.49

54

Bailer Pick-up Ass'y | Includes 540 to 540c

292001636

$25.99

82

Black Shell

292001837

$20.99

84

Flat Washer M8.5 x 18

293050001

$3.07

86

Pop Rivet 3/16"

293150043

$2.09

87

Pop Rivet 3/16"

293150123

$4.29

91

Not Available As Spare Part - Friction Washer

Unavailable

92

Hull Insert

293450335

$22.99

93

Hull Insert

293450340

$27.99

94

Hull Insert

293450356

$10.99

96

Fitting Elbow 90°

293710152

$18.49

97

Grommet

293720029

$1.59

98

Dart

293730062

$2.09

100

Tie Wrap 94 mm | 4X4

293750001

$1.03

101

Tie Wrap 368 mm

293750008

$1.04

102

Tie Rap Mount

293750026

$3.09

107

Rubber Washer

293830037

$2.68
