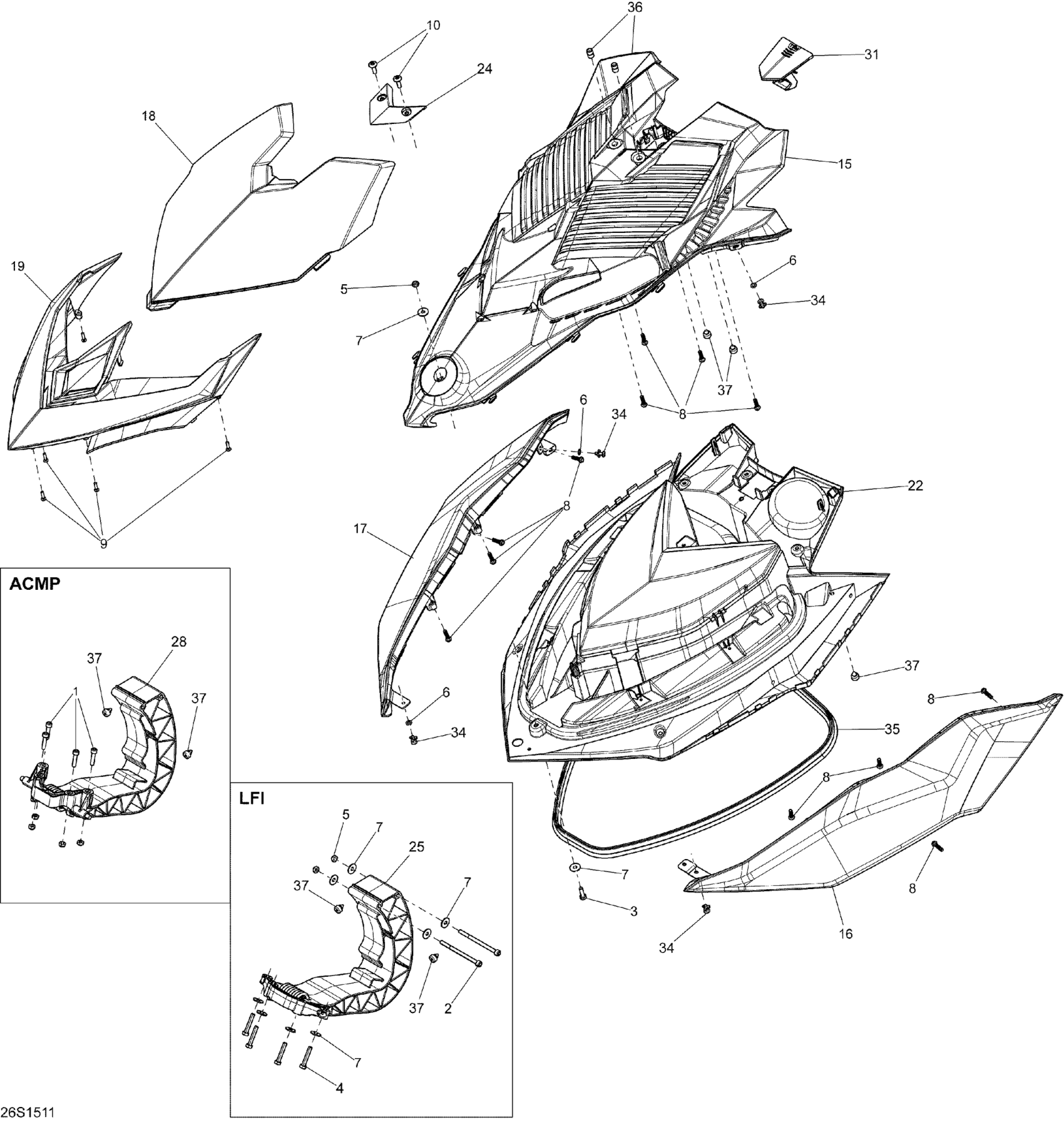

Sea-doo RXP-X 260 & RS, 2015 Front Cover _26S1511 Diagram

#

Description
Price

1

Socket Head Screw M6 X 25

205062560

$1.69

2

Socket Head Screw M6 X 90

205069060

$2.30

3

Hex. Forming Screw M6 X 20

207162060

$1.29

4

Screw Hex. M6 X 35, Scotch Grip

207363560

$1.89

5

Elastic Stop Nut M6, Brass

232561200

$4.23

6

Flat Washer 5 mm

234051500

$0.73

7

Flat Washer M6, Stainless

234062600

$0.77

8

Hex. Flange Screw K50 X 20

241152060

$1.99

9

Flange Torx Screw K40 X 16

250000287

$2.11

10

Torx Screw M6 X 20

250000711

$1.90

15

Black, Central Storage Cover

269502193

$264.99

16

LH STORAGE COVER FLASHING - Call your local BRP dealership | Model Yellow/Silver

269502142

Unavailable

16

LH STORAGE COVER FLASHING - Call your local BRP dealership | Model Red/Black

269501866

Unavailable

17

RH Storage Cover Flashing | Model Yellow/Silver

269502143

$159.99

17

RH STORAGE COVER FLASHING - Call your local BRP dealership | Model Red/Black

269501867

Unavailable

18

Yellow, Deflector | Unit B-415 Neon Yellow

269501868

$61.99

18

Black Tinted 45%, Deflector | Model Dragon Red

269502220

$61.99

19

FRONT COSMETIC ASS'Y - Call your local BRP dealership | Model Yellow/Silver

269502062

Unavailable

19

FRONT COSMETIC ASS'Y - Call your local BRP dealership | Model Red/Black

269502010

Unavailable

22

Deep Black, Storage Cover Lower

269502196

$109.99

24

Black, Clamp

269501941

$9.80

25

Kit Hinge | DR This part replaces 269501944.

295501248

$64.99

28

Kit Hinge | DR This part replaces 269501944.

295501248

$64.99

31

Deep Black, Latch Lever

269700142

$30.99

34

Avdel Rivet

293150027

$2.49

35

Neoprene Seal 3000Mm Long

219704371

$51.99

37

Rubber Bumper

293830005

$8.09
