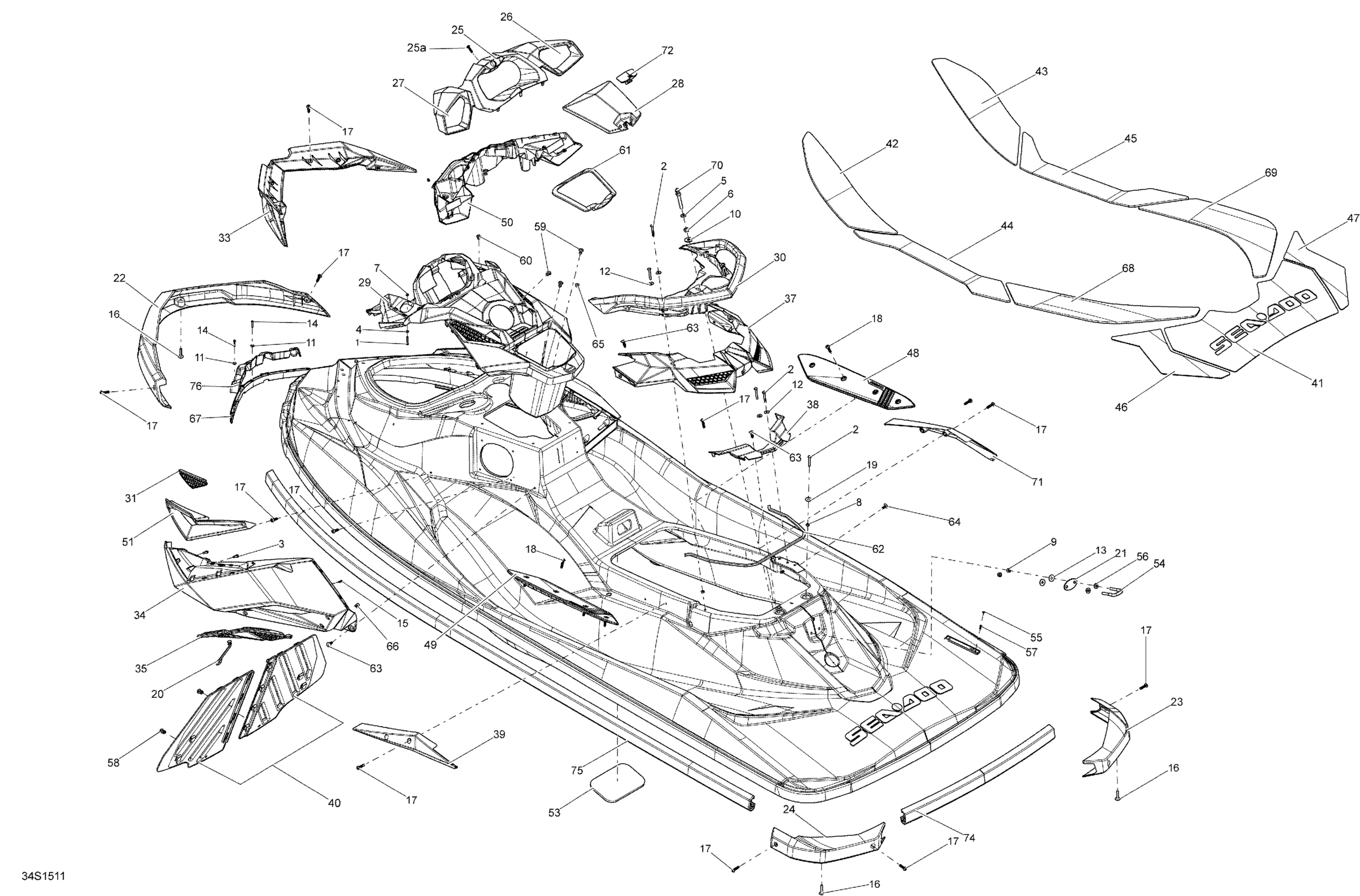

Sea-doo RXP-X 260 & RS, 2015 Body _34S1511 Diagram

#

Description
Price

1

Hex. Flange Screw M5 X 30

207153060

$1.99

2

Hex. Screw M6 X 40

207164060

$3.38

3

Hex. Screw 10-14 X 7/8”

211000023

$3.59

4

Flat Washer | XT

211200035

$0.55

5

Hex. Jam Nut M10

232100600

$2.22

6

Elastic Stop Nut M10, Brass

232501200

$2.64

7

Elastic Stop Nut 5 mm

232551200

$1.47

8

Elastic Stop Nut M6, Brass

232561200

$4.23

9

Hex. Elastic Nut M8 Brass

232581200

$2.22

10

Flat Washer 10 mm, Stainless

234002600

$2.22

11

Flat Washer 4 mm, Stainless

234042600

$1.15

12

Flat Washer M6, Stainless

234062600

$0.77

13

Flat Washer 8 mm, Stainless

234082600

$2.43

14

Hex. Flange Screw K40 X 25

241142560

$2.64

15

Flange Torx Screw K40 X 16

250000287

$2.11

16

SOCKET SCREW M6 X 12 - Call your local BRP dealership

250000339

Unavailable

17

Screw Torx M6.81 X 30

250000626

$3.91

18

Plastite Screw Torx Cone HD.M6.81X3

250001194

$4.66

19

Flat Washer M6.6 X 22

250200022

$2.72

20

Holding Strap

269502111

$18.49

21

Black, Finition Plate

291001386

$10.99

22

Front Bumper This part replaces 291005401.

291004277

$76.49

23

Black, Corner Bumper This part replaces 291004153.

291004279

$33.99

24

Black, Corner Bumper This part replaces 291004152.

291004278

$33.99

25

Black Bezel Ass'y | Package SE This part replaces 291004489.

291004261

$149.99

25a

Torx Screw K40 X 16 | Canada/USA

250000735

$3.91

26

Mirror RH, With Double-Face Tape

291003090

$48.49

27

Mirror LH, With Double-Face Tape

291003091

$48.49

28

Deep Black, Glove Box Door

291004579

$44.99

29

Kit Console This part replaces 291004282.

295501182

$124.99

30

Black, Rear Handle Ass'y | Includes 470 TO 470e

291004620

$94.49

31

Deep Black, LH Front Hood Grille | Model Dragon Red

291003343

$12.99

31

Deep Black, RH Front Hood Grill | Model Dragon Red

291003344

$12.99

33

Deflector

291004367

$75.99

34

YELLOW LH SIDE COSMETIC - Call your local BRP dealership

291004094

Unavailable

34

YELLOW RH SIDE COSMETIC - Call your local BRP dealership

291004095

Unavailable

35

Black, LH Side Grille

291003348

$27.99

35

Deep Black, RH Side Grille

291003349

$27.99

37

Deep Black, Cosmetic Rear

291004365

$52.99

38

Deep Black, Vent Cover

291003372

$18.76

39

RED LH SIDE HAND GRIP COSMETIC - Call your local BRP dealership | Model Yellow/Silver

291004090

Unavailable

71

RED RH SIDE HAND GRIP COSMETIC - Call your local BRP dealership | Model Yellow/Silver

291004091

Unavailable

39

RED LH SIDE HAND GRIP COSMETIC - Call your local BRP dealership | Model Black/Red

291003932

Unavailable

71

RED RH HAND GRIP COSMETIC - Call your local BRP dealership | Model Black/Red

291003933

Unavailable

40

Divider Ass'y

291004572

$104.99

41

Platform Carpet

291003586

$71.99

42

Front Carpet LH

291003587

$35.99

43

Front Carpet RH

291003588

$35.99

44

Center Front Carpet LH

291003589

$46.49

45

Center Front Carpet RH

291003591

$46.49

46

Rear Carpet LH

291003593

$15.89

47

Rear Carpet RH

291003594

$15.89

48

RH FOOTREST - Call your local BRP dealership

291003637

Unavailable

49

LH FOOTREST - Call your local BRP dealership

291003638

Unavailable

50

Deep Black, Mirror Support

291004271

$48.99

51

Front Cosmetic LH | Model White

291004417

$45.49

51

RED LH FRONT COSMETIC - Call your local BRP dealership | Model Black/Red

291004308

Unavailable

51

RED RH FRONT COSMETIC - Call your local BRP dealership | Model Black/Red

291004310

Unavailable

51

Front Cosmetic RH | Model White

291004420

$45.49

53

Plate

291003931

Unavailable

54

U-Clamp

292000933

$59.49

55

Black, Snap Cap

293000014

$1.09

56

Flat Washer M8.5 x 18

293050001

$3.07

57

Rivet 1/8"

293150016

$0.40

58

Tuflok Plastic Rivet

293150230

$1.47

59

Pop Rivet 3/16"

293150123

$4.29

60

Pop Rivet 3/16

293150186

$2.09

61

Urethane Seal

293250265

$17.49

62

Gasket

292002523

$9.32

63

Black, Dart

293730006

$0.99

64

Black, Dart

293730011

$0.99

65

Rubber Bumper

293830005

$8.09

66

Black, Dart

414644300

$0.98

67

Deck Nose

291003897

$18.99

68

Rear Center Carpet LH

291003577

$46.49

69

Rear Center Carpet RH

291003578

$46.49

70

Stud Seat

291003877

$48.99

72

Black, Latch

264000164

$15.99

74

Lateral Bumper

291003872

$148.49

75

Lateral Bumper

291003872

$148.49

76

Bumper Support | Package SE Manta Green

291003704

$21.99
