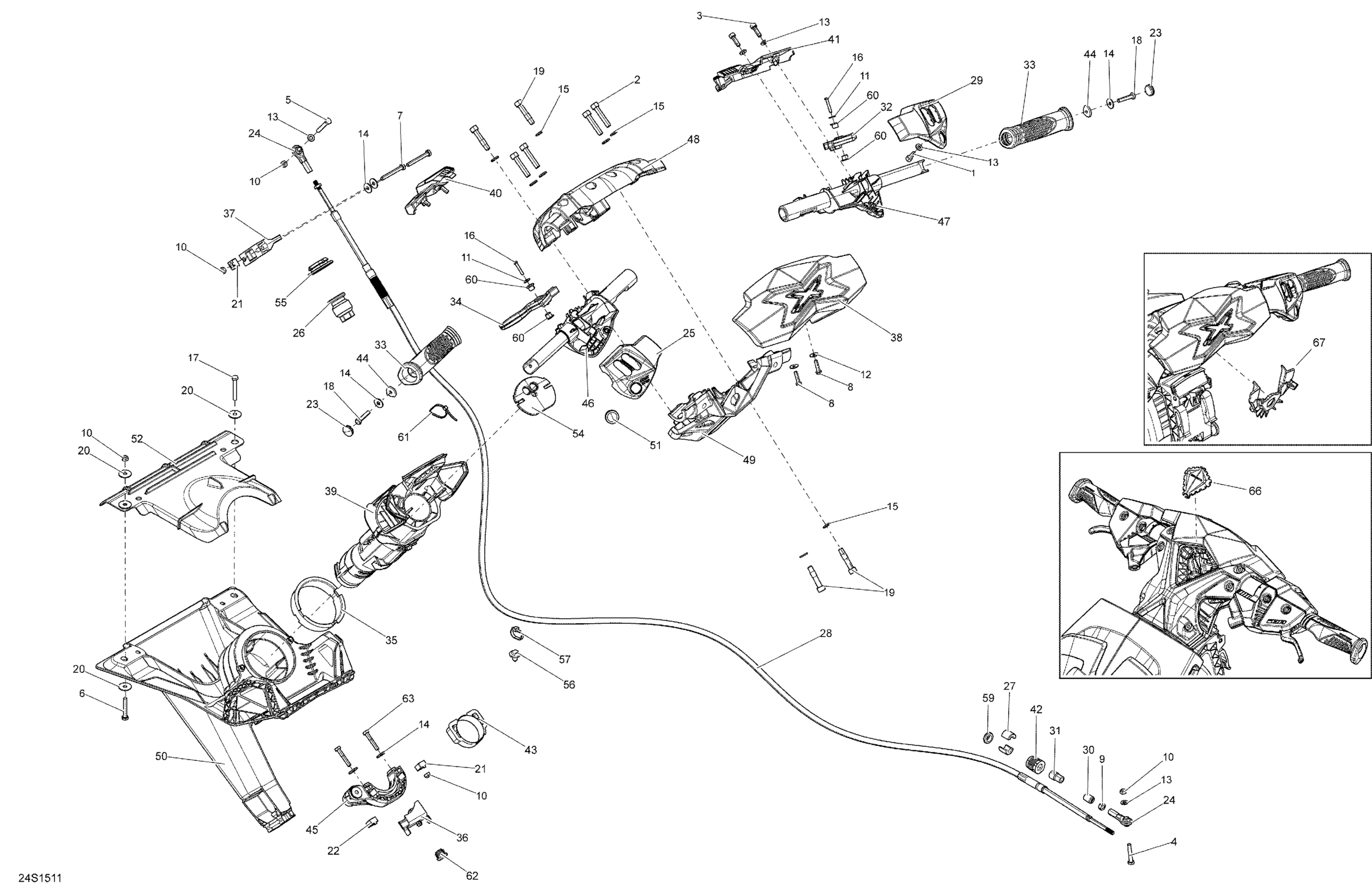

Sea-doo RXP-X 260 & RS, 2015 Steering _24S1511 Diagram

#

Description
Price

1

Socket Screw M6 X 16

205061660

$1.48

2

SOCKET HEAD SCREW M8 X 40 - Call your local BRP dealership

205084060

Unavailable

3

Socket Head Screw M6 X 20, Scotch Grip

205562060

$0.76

4

Hex. Screw M6 X 35

207063560

$2.22

5

Hex. Screw M6 X 40

207064060

$1.69

6

Hex. Screw M6 X 40

207164060

$3.38

7

Hex. Screw M6 X 50

207165060

$0.92

8

Hex. Screw 10-14 X 7/8”

211000023

$3.59

9

Hex. Nut 1/4"-28

211100056

$0.69

10

Elastic Stop Nut M6, Brass

232561200

$4.23

11

Flat Washer 4 mm, Stainless

234042600

$1.15

12

Flat Washer 5 mm, Stainless

234052600

$0.77

13

Stainless Flat Washer M6

234061600

$0.33

14

Flat Washer M6, Stainless

234062600

$0.77

15

Flat Washer M8, Stainless

234080600

$1.48

16

Hex. Flange Screw K40 X 25

241142560

$2.64

17

Hex Cap Screw M6X1.0X45 S.Grip

245064560

$1.90

18

Hex. Screw M6 X 30, Scotch Grip

250000002

$0.92

19

Torx-Button M/S M8 X 40 Stlss S.Gri

250000845

$3.91

20

Flat Washer M6.6 X 22

250200022

$2.72

21

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$7.86

22

Housing Nut M6 | Included 550f to 550f2

269502408

$6.74

23

Black, Cap

277000203

$9.39

24

Ball Joint

277000775

$51.99

25

LH HOUSING COVER - Call your local BRP dealership

277001794

Unavailable

26

Ajustment Knob

277000782

$22.99

27

Half Ring

277001527

$10.37

28

Steering Cable Ass'y | Includes 540 TO 540d

277001578

$211.99

29

RH Housing Cover

277001718

$134.99

30

Wiper Rod

277001582

$11.11

31

End Piece

277001583

$14.49

32

Throttle Handle

277001944

$38.99

33

Handlebar Grip

277002286

$19.99

34

Reverse Handle

277001945

$43.99

35

Wear Ring

277001653

$12.17

36

Spacer

277001654

$15.99

37

Thrust Support Ass'y

277001655

$28.99

38

Handle Pad

277001683

$91.99

39

Steering Column

277001685

$249.99

40

LH UPPER HOUSING - Call your local BRP dealership

277001686

Unavailable

41

Upper Housing RH

277001688

$109.99

42

Steering Cable Lock This part replaces 277000784.

277001729

$13.22

43

Wear Ring

277002318

$15.99

44

Insert Grip Handle

277001863

$8.83

45

Steering Arm Support Ass'y | Includes 460 TO 460c

277001872

$42.99

46

LH Lower Housing This part replaces 277001965.

277001950

$154.99

47

RH LOWER HOUSING - Call your local BRP dealership This part replaces 277001966.

277001951

Unavailable

48

FRONT EXTENSION BLOC - Call your local BRP dealership

277001909

Unavailable

49

REAR EXTENSION BLOCK - Call your local BRP dealership

277001926

Unavailable

50

Steering Support Ass'y | Includes 710 TO 710b

277001913

$114.99

51

Red, Knob Switch

277001887

$9.69

52

Deflector

293000117

$30.99

54

Grommet

293720086

$14.49

55

Cable Grommet

293720090

$8.49

56

Mount Dart

293730040

$1.04

57

Tie Wrap 368 mm

293750008

$1.04

59

Rubber Washer

293830063

$1.90

60

Bushing

293900091

$4.52

61

Tie-Rap 180 mm

414115200

$0.11

62

Cap

517302716

$4.69

63

Hex. Screw M6 X 35

207163560

$1.49

66

AESTHETIC CAP - Call your local BRP dealership

277001919

Unavailable

67

RADIO FREQUENCY KEY SUPPORT - Call your local BRP dealership

277001920

Unavailable
