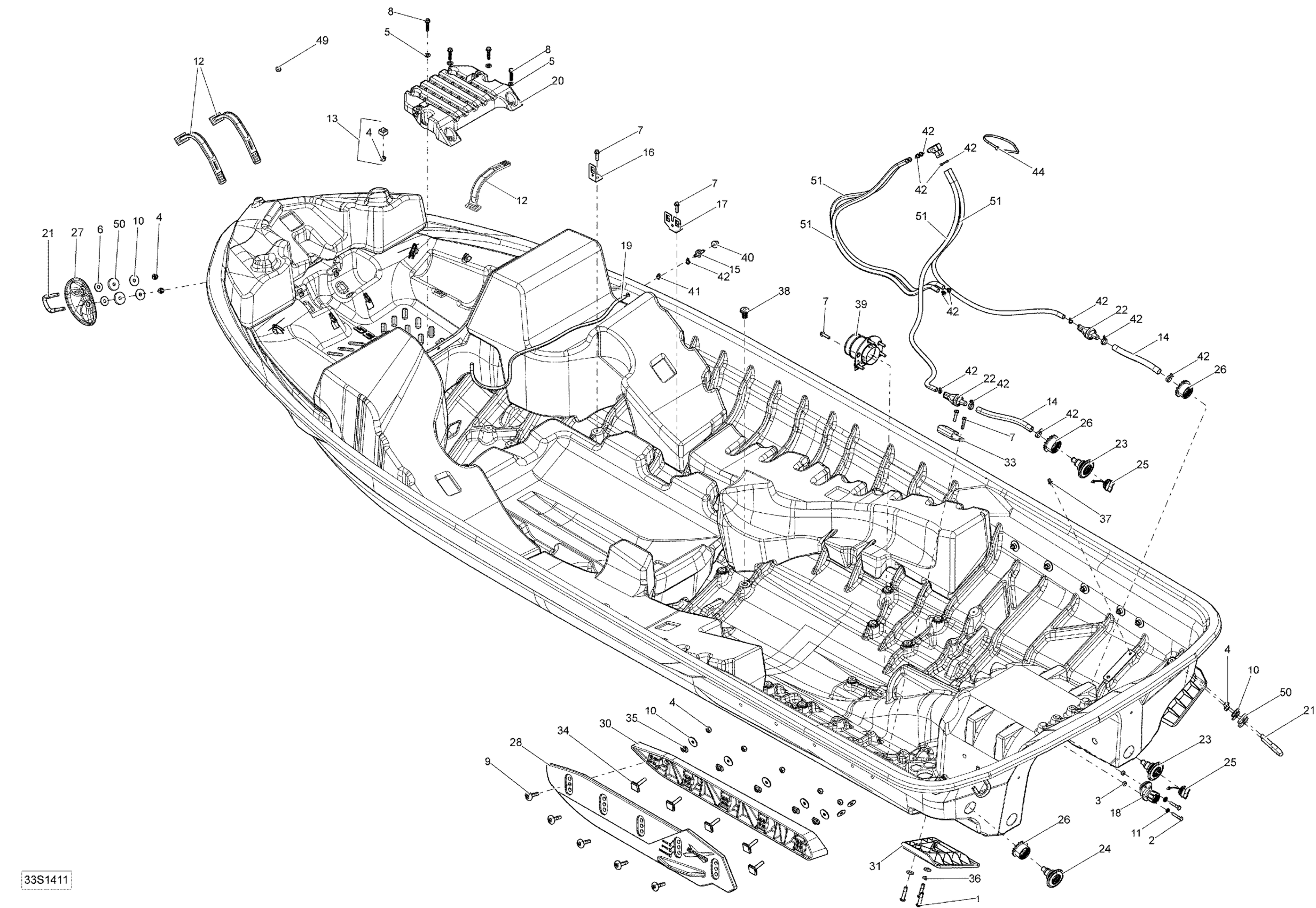

Sea-doo RXP-X 260 & RS, 2014 Hull _33S1411 Diagram

#

Description
Price

1

SOCKET SCREW M8 X 35 - Call your local BRP dealership

205983560

Unavailable

2

Hex. Screw M6 X 30

207063060

$1.89

3

Elastic Stop Nut M6, Brass

232561200

$4.23

4

Hex. Elastic Nut M8 Brass

232581200

$2.22

5

Flat Washer M8, Stainless

234080600

$1.48

6

Flat Washer 8 mm, Stainless

234082600

$2.43

7

Hex. Flange Screw M6.81 X 25, Plastite

243162560

$2.19

8

Hex. Flange Screw M6.81 X 30

243163060

$2.32

9

Torx-Head Screw M8 X 35 This part replaces 250000572.

250000994

$3.91

10

Flat Washer 8 mm, Stainless

250200175

$3.06

11

Sealing Washer

250200114

$4.44

12

Strap

269502417

$17.69

13

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$6.67

14

Was 275500008 Hose 12 mm

219704356

$20.49

19

HOSE 6 MM - Call your local BRP dealership

275500446

Unavailable

15

CHECK VALVE - Call your local BRP dealership This part replaces 275500167.

275500499

Unavailable

16

STRAP CLIP 90 - Call your local BRP dealership

275500743

Unavailable

17

Double Strap Clip 90°

275500798

$8.94

18

Cable Adaptor Ass'y

277001881

$19.99

20

Battery Base Ass'y

278002866

$38.99

21

U-Clamp

292000933

$59.49

22

Bailer Ass'y

292001310

$23.99

23

Drain Neck Ass'y

292001315

$27.99

24

Drain Neck Ass'y

292001317

$27.99

25

Plug Drain Ass'y | Includes 310 to 310b

292002024

$13.49

26

Bushing

292001371

$17.49

27

Black Shell

292001837

$20.99

28

RH Sponson This part replaces 292001426.

292001871

$83.99

28

Sponson LH This part replaces 292001427.

292001872

$83.99

30

RH Spacer Sponson This part replaces 292001428.

292001873

$41.99

30

Spacer Sponson LH This part replaces 292001429.

292001874

$54.99

31

Trim Tab LH

292001430

$18.49

31

TrimTab RH

292001431

$18.49

33

MUFFLER SPACER - Call your local BRP dealership

292001470

Unavailable

34

Square Head Stud

292001471

$15.99

35

Push Nut

292001503

$1.15

36

Flat Washer M8.5 x 18

293050001

$3.07

37

Avdel Rivet 3/16"

293150037

$0.56

38

INSERT CAPUCHON M8 - Call your local BRP dealership

293450290

Unavailable

39

HULL INSERT - Call your local BRP dealership

293450306

Unavailable

42

ELBOW FITTING 90 - Call your local BRP dealership

293710117

Unavailable

40

Grommet

293720029

$1.59

41

Tie Wrap 94 mm | 4X4

293750001

$1.03

44

Tie Wrap 368 mm

293750008

$1.04

49

Rubber Bumper

293830005

$8.09

50

Rubber Washer

293830037

$2.68

51

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99
