Partiron

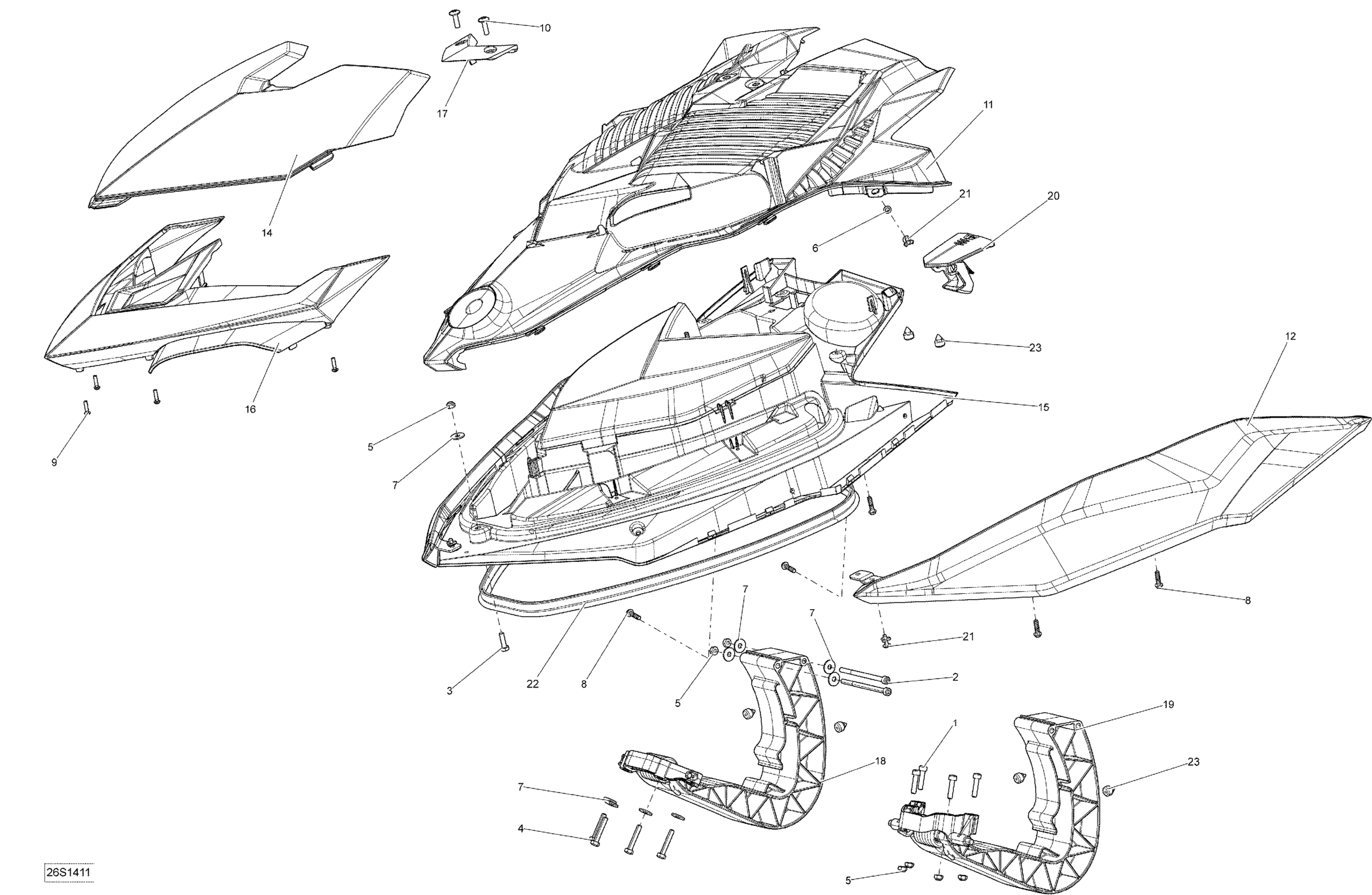

Sea-doo RXP-X 260 & RS, 2014 Front Cover _26S1411 Diagram

#

Description
Price

1

Socket Head Screw M6 X 25

205062560

$1.69

2

Socket Head Screw M6 X 90

205069060

$2.30

3

Hex. Forming Screw M6 X 20

207162060

$1.29

4

Screw Hex. M6 X 35, Scotch Grip

207363560

$1.89

5

Elastic Stop Nut M6, Brass

232561200

$4.23

6

Flat Washer 5 mm

234051500

$0.73

7

Flat Washer M6, Stainless

234062600

$0.77

8

Hex. Flange Screw K50 X 20

241152060

$1.99

9

Flange Torx Screw K40 X 16

250000287

$2.11

10

Torx Screw M6 X 20

250000711

$1.90

11

Black, Central Storage Cover

269502193

$264.99

12

LH STORAGE COVER FLASHING - Call your local BRP dealership | Model Red/Black

269501866

Unavailable

12

RH STORAGE COVER FLASHING - Call your local BRP dealership | Model Red/Black

269501867

Unavailable

14

Black Tinted 45%, Deflector | Model Dragon Red

269502220

$61.99

15

Deep Black, Storage Cover Lower

269502196

$109.99

16

FRONT COSMETIC ASS'Y - Call your local BRP dealership | Model Red/Black

269502010

Unavailable

17

Black, Clamp

269501941

$9.80

18

Kit Hinge | DR This part replaces 269501944.

295501248

$64.99

19

Kit Hinge | DR This part replaces 269501944.

295501248

$64.99

20

Deep Black, Latch Lever

269700142

$30.99

21

Avdel Rivet

293150027

$2.49

22

Neoprene Seal 3000Mm Long

219704371

$51.99

23

Rubber Bumper

293830005

$8.09
