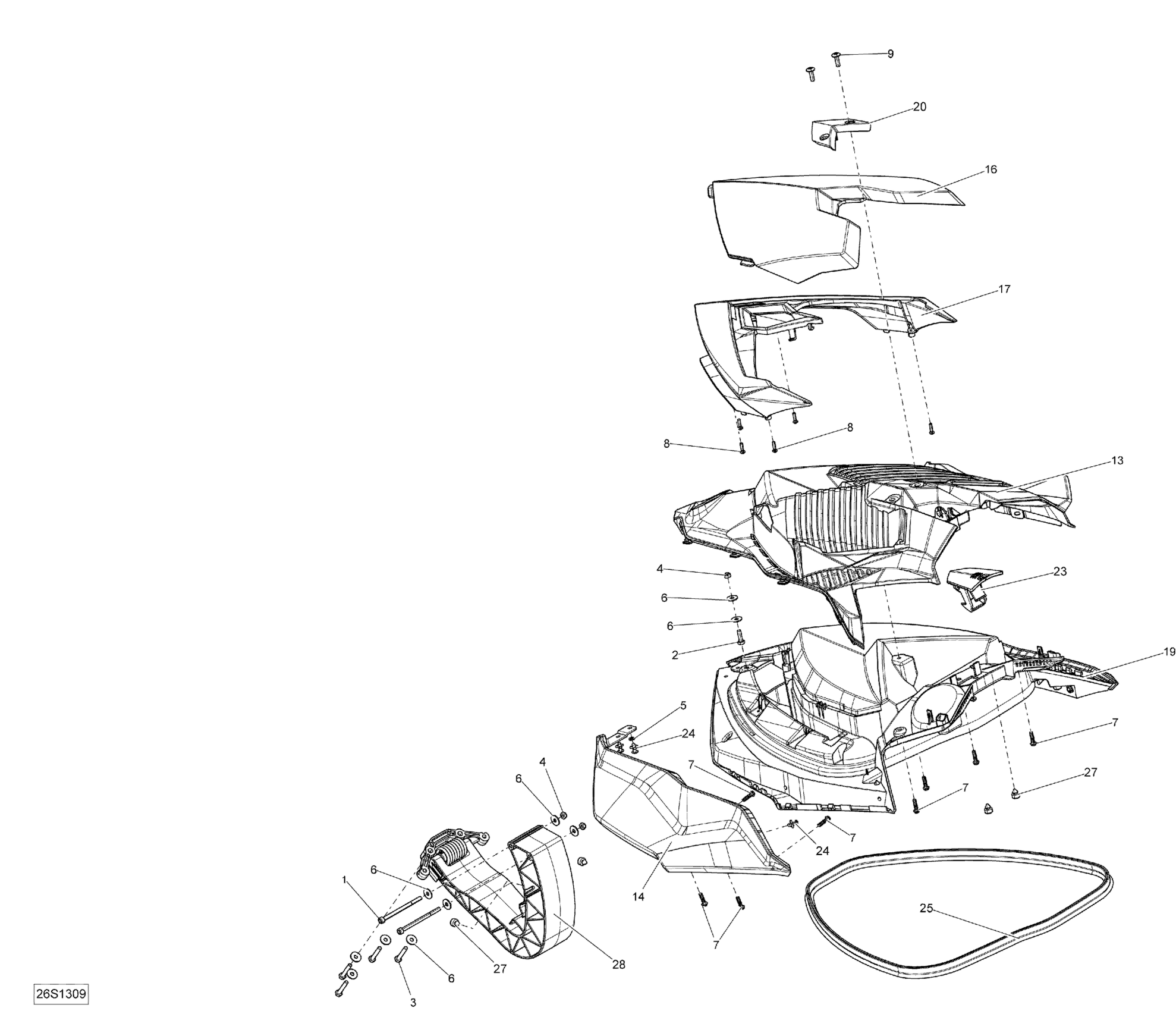

Sea-doo RXP-X 260 & RS, 2013 Front Cover Diagram

#

Description
Price

1

Socket Head Screw M6 X 90

205069060

$1.79

2

Hex. Forming Screw M6 X 20

207162060

$1.18

3

Screw Hex. M6 X 35, Scotch Grip

207363560

$1.73

4

Elastic Stop Nut M6, Brass

232561200

$4.03

5

Flat Washer 5 mm

234051500

$0.67

6

Flat Washer M6, Stainless

234062600

$0.73

7

Hex. Flange Screw K50 X 20

241152060

$1.81

8

Flange Torx Screw K40 X 16

250000287

$2.00

9

Torx Screw M6 X 20

250000711

$2.64

13

Black, Central Storage Cover

269502193

$236.54

14

LH STORAGE COVER FLASHING - Call your local BRP dealership | Model Red/Black

269501866

Unavailable

14

RH STORAGE COVER FLASHING - Call your local BRP dealership | Model Red/Black

269501867

Unavailable

16

Yellow, Deflector | Unit B-415 Neon Yellow

269501868

$55.19

17

FRONT COSMETIC ASS'Y - Call your local BRP dealership

269501898

Unavailable

19

Deep Black, Storage Cover Lower

269502196

$98.48

20

Black, Clamp

269501941

$8.40

23

Deep Black, Latch Lever

269700142

$27.58

24

Avdel Rivet

293150027

$2.30

25

Neoprene Seal 3000Mm Long

219704371

$50.34

27

Rubber Bumper

293830005

$6.12

28

Kit Hinge | DR This part replaces 269501944.

295501248

$58.18
