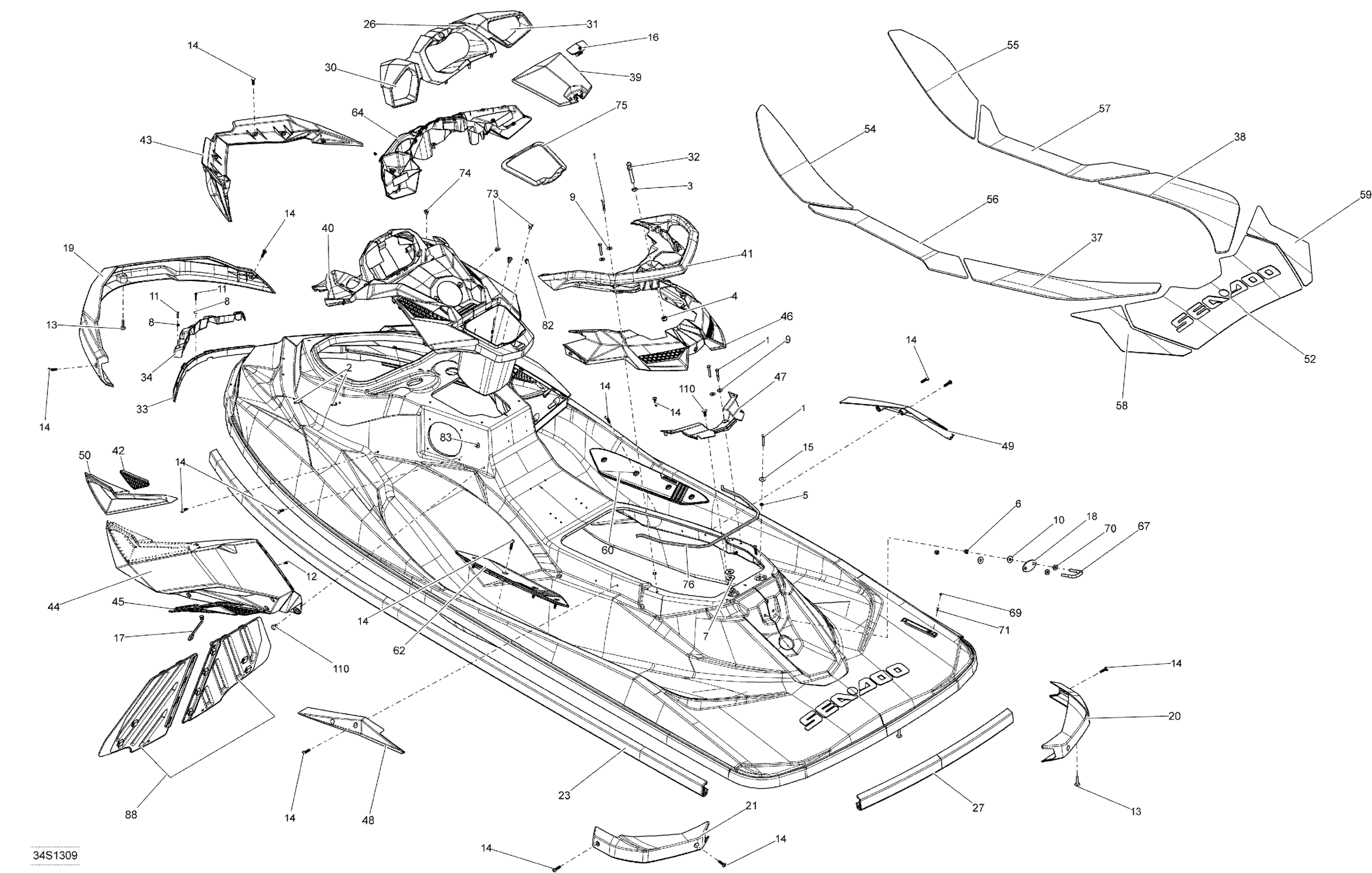

Sea-doo RXP-X 260 & RS, 2013 Body Diagram

#

Description
Price

1

Hex. Screw M6 X 40

207164060

$2.74

2

Hex. Screw 10-14 X 7/8”

211000023

$2.91

3

Hex. Jam Nut M10

232100600

$1.85

4

Elastic Stop Nut M10, Brass

232501200

$2.16

5

Elastic Stop Nut M6, Brass

232561200

$3.51

6

Hex. Elastic Nut M8 Brass

232581200

$1.29

7

Flat Washer 10 mm, Stainless

234002600

$1.85

8

Flat Washer 4 mm, Stainless

234042600

$0.92

9

Flat Washer M6, Stainless

234062600

$0.64

10

Flat Washer 8 mm, Stainless

234082600

$1.98

11

Hex. Flange Screw K40 X 25

241142560

$2.17

12

Flange Torx Screw K40 X 16

250000287

$1.74

13

Hexagonal Cap Screw M6 X35

250000399

$3.61

14

Screw Torx M6.81 X 30

250000626

$1.61

15

Flat Washer M6.6 X 22

250200022

$1.87

16

Black, Latch

264000164

$11.40

17

Holding Strap

269502111

$14.27

18

Black, Finition Plate

291001386

$8.57

19

Front Bumper This part replaces 291005401.

291004277

$61.72

20

Black, Corner Bumper This part replaces 291004153.

291004279

$25.97

21

Black, Corner Bumper This part replaces 291004152.

291004278

$25.97

23

Lateral Bumper

291003872

$78.43

26

Black Bezel Ass'y | Package SE This part replaces 291004489.

291004261

$115.67

27

Lateral Bumper

291003872

$78.43

30

Mirror LH, With Double-Face Tape

291003091

$38.97

31

Mirror RH, With Double-Face Tape

291003090

$38.97

32

Stud Seat

291003877

$38.32

33

Deck Nose

291003897

$13.62

34

Bumper Support | Package SE Manta Green

291003704

$16.87

37

Rear Center Carpet LH

291003577

$37.67

38

Rear Center Carpet RH

291003578

$37.67

39

Deep Black, Glove Box Door

291004579

$35.07

40

Kit Console This part replaces 291004282.

295501182

$98.12

41

Black, Rear Handle Ass'y | Includes 470 TO 470e

291004620

$76.02

42

Deep Black, LH Front Hood Grille | Model Dragon Red

291003343

$11.72

42

Deep Black, RH Front Hood Grill | Model Dragon Red

291003344

$11.72

43

Deflector

291004367

$59.12

44

LH LATERAL SIDE COSMETIC - Call your local BRP dealership

291003346

Unavailable

44

RH LATERAL COSMETIC - Call your local BRP dealership

291003347

Unavailable

45

Black, LH Side Grille

291003348

$25.35

45

Deep Black, RH Side Grille

291003349

$25.35

46

Deep Black, Cosmetic Rear

291004365

$42.87

47

Deep Black, Vent Cover

291003372

$13.62

48

LH Handle Cosmetic

291003373

$50.74

49

Yellow Cosmetic RH | Model White

291004431

$41.57

50

Front Cosmetic LH | Model White

291004417

$36.37

50

Front Cosmetic RH | Model White

291004420

$36.37

52

Platform Carpet

291003586

$57.82

54

Front Carpet LH

291003587

$28.57

55

Front Carpet RH

291003588

$28.57

56

Center Front Carpet LH

291003589

$37.67

57

Center Front Carpet RH

291003591

$37.67

58

Rear Carpet LH

291003593

$12.91

59

Rear Carpet RH

291003594

$12.91

60

RH FOOTREST - Call your local BRP dealership

291003637

Unavailable

62

LH FOOTREST - Call your local BRP dealership

291003638

Unavailable

64

Deep Black, Mirror Support

291004271

$38.32

67

U-Clamp

292000933

$32.47

69

Black, Snap Cap

293000014

$0.85

70

Flat Washer M8.5 x 18

293050001

$1.29

71

Rivet 1/8"

293150016

$0.29

72

Tuflok Plastic Rivet

293150230

$1.21

73

Pop Rivet 3/16"

293150123

$3.43

74

Pop Rivet 3/16

293150186

$1.63

75

Urethane Seal

293250265

$12.57

76

Gasket

292002523

$9.22

82

Rubber Bumper

293830005

$5.33

83

Black, Dart

414644300

$0.78

88

Divider Ass'y

291004572

$81.87

110

Black, Dart

293730006

$0.81
