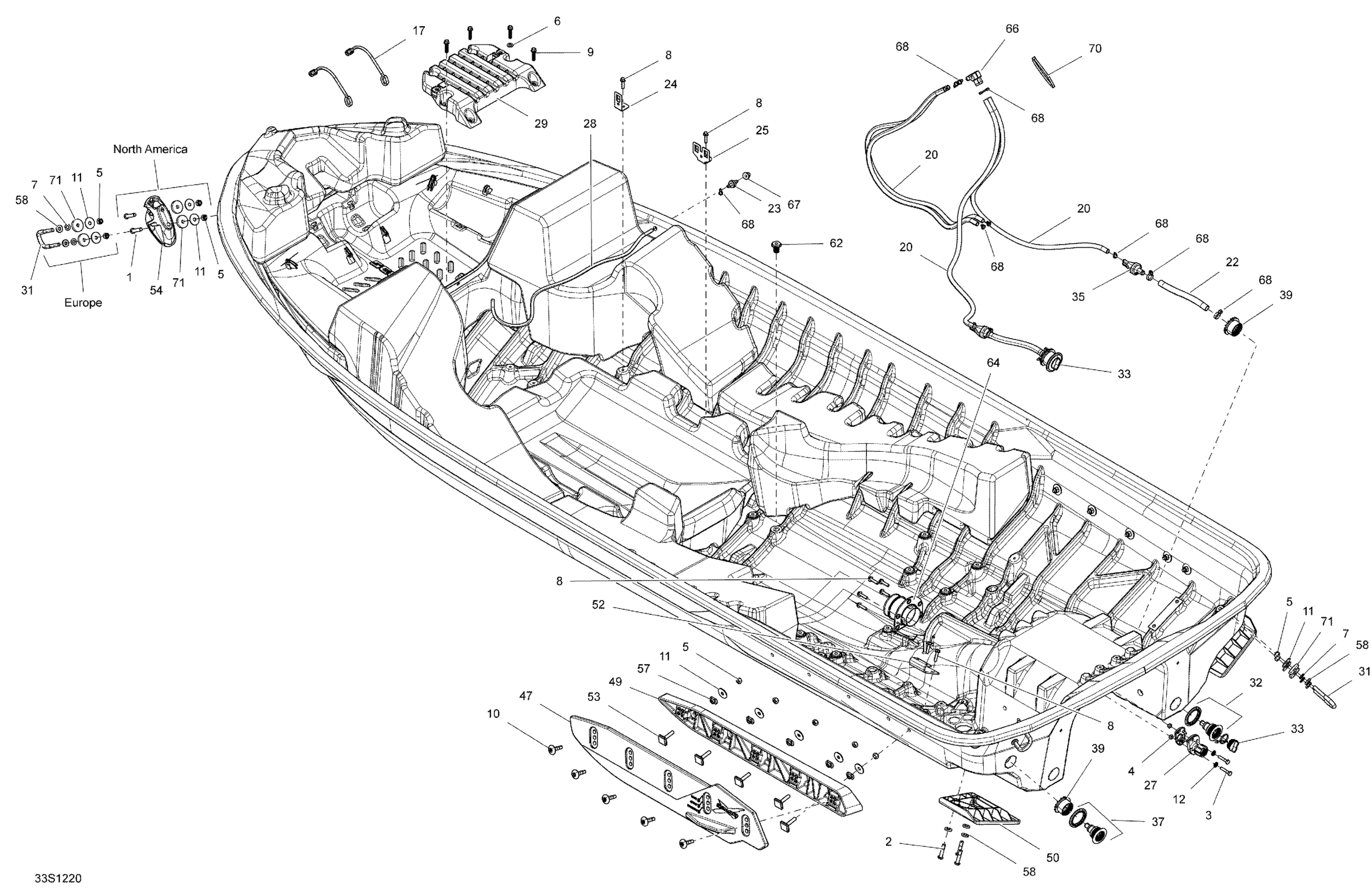

Sea-doo RXP-X 260 & RS, 2012 Hull Diagram

#

Description
Price

1

SOCKET SCREW, M8 X 35 - Call your local BRP dealership

205483560

Unavailable

2

SOCKET SCREW M8 X 35 - Call your local BRP dealership

205983560

Unavailable

3

Hex. Screw M6 X 30

207063060

$1.89

4

Elastic Stop Nut M6, Brass

232561200

$4.23

5

Hex. Elastic Nut M8 Brass

232581200

$2.22

6

Flat Washer M8, Stainless

234080600

$1.48

7

Flat Washer 8 mm, Nylon

234081100

$1.39

8

Hex. Flange Screw M6.81 X 25, Plastite

243162560

$2.19

9

Hex. Flange Screw M6.81 X 30

243163060

$2.32

10

Torx-Head Screw M8 X 35 This part replaces 250000572.

250000994

$3.91

11

Flat Washer 8 mm, Stainless

250200175

$3.06

12

Sealing Washer

250200114

$4.44

17

Strap

269502417

$17.69

20

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99

22

Was 275500008 Hose 12 mm

219704356

$20.49

23

CHECK VALVE - Call your local BRP dealership This part replaces 275500167.

275500499

Unavailable

24

STRAP CLIP 90 - Call your local BRP dealership

275500743

Unavailable

25

Double Strap Clip 90°

275500798

$8.94

27

Cable Adaptor Ass'y

277001881

$19.99

28

HOSE 6 MM - Call your local BRP dealership

275500446

Unavailable

29

Battery Base Ass'y

278002866

$38.99

31

U-Clamp

292000933

$59.49

32

Drain Neck Ass'y

292001315

$27.99

33

Plug Drain Ass'y | Includes 310 to 310b

292002024

$13.49

35

Bailer Ass'y

292001310

$23.99

37

Drain Neck Ass'y

292001317

$27.99

39

Bushing

292001371

$17.49

47

RH Sponson This part replaces 292001426.

292001871

$83.99

47

Sponson LH This part replaces 292001427.

292001872

$83.99

49

RH Spacer Sponson This part replaces 292001428.

292001873

$41.99

49

Spacer Sponson LH This part replaces 292001429.

292001874

$54.99

50

Trim Tab LH

292001430

$18.49

50

TrimTab RH

292001431

$18.49

52

MUFFLER SPACER - Call your local BRP dealership

292001470

Unavailable

53

Square Head Stud

292001471

$15.99

54

BOW CUP KIT - Call your local BRP dealership

295100586

Unavailable

57

Push Nut

292001503

$1.15

58

Flat Washer M8.5 x 18

293050001

$3.07

62

INSERT CAPUCHON M8 - Call your local BRP dealership

293450290

Unavailable

64

HULL INSERT - Call your local BRP dealership

293450306

Unavailable

66

ELBOW FITTING 90 - Call your local BRP dealership

293710117

Unavailable

67

Grommet

293720029

$1.59

68

Tie Wrap 94 mm | 4X4

293750001

$1.03

70

Tie Wrap 368 mm

293750008

$1.04

71

Rubber Washer

293830037

$2.68
