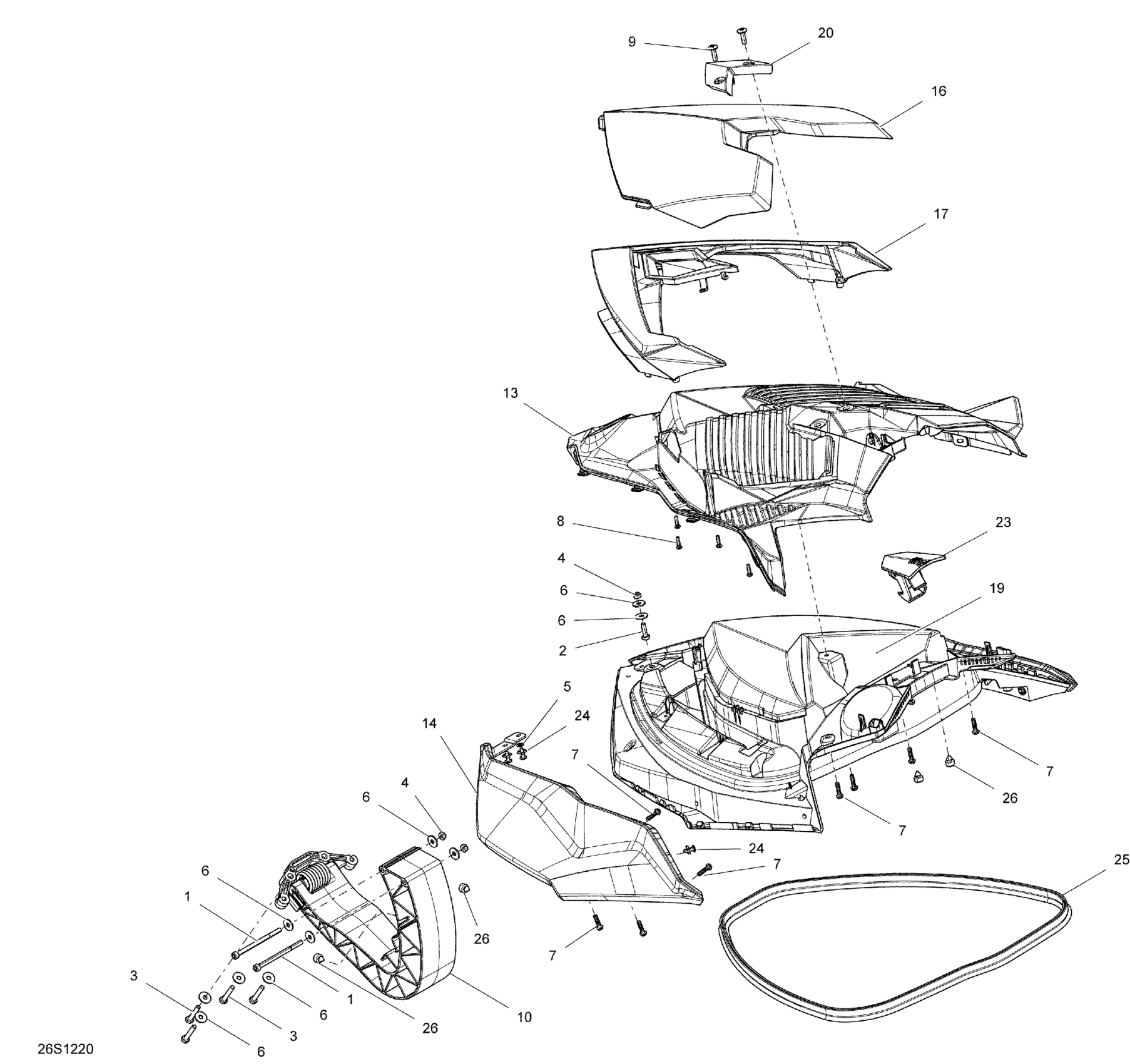

Sea-doo RXP-X 260 & RS, 2012 Front Cover Diagram

#

Description
Price

1

Socket Head Screw M6 X 90

205069060

$1.56

2

Hex. Forming Screw M6 X 20

207162060

$1.03

3

Screw Hex. M6 X 35, Scotch Grip

207363560

$1.51

4

Elastic Stop Nut M6, Brass

232561200

$3.51

5

Flat Washer 5 mm

234051500

$0.67

6

Flat Washer M6, Stainless

234062600

$0.64

7

Hex. Flange Screw K50 X 20

241152060

$1.57

8

Flange Torx Screw K40 X 16

250000287

$1.74

9

Torx Screw M6 X 20

250000711

$2.64

10

Kit Hinge | DR This part replaces 269501944.

295501248

$50.67

13

Black, Central Storage Cover

269502193

$236.54

14

LH STORAGE COVER FLASHING - Call your local BRP dealership | Model Red/Black

269501866

Unavailable

14

RH STORAGE COVER FLASHING - Call your local BRP dealership | Model Red/Black

269501867

Unavailable

16

Yellow, Deflector | Unit B-415 Neon Yellow

269501868

$48.07

17

FRONT COSMETIC ASS'Y - Call your local BRP dealership

269501898

Unavailable

19

Deep Black, Storage Cover Lower

269502196

$85.77

20

Black, Clamp

269501941

$7.32

23

Deep Black, Latch Lever

269700142

$24.02

24

Avdel Rivet

293150027

$2.30

25

Neoprene Seal 3000Mm Long

219704371

$45.47

26

Rubber Bumper

293830005

$5.33
