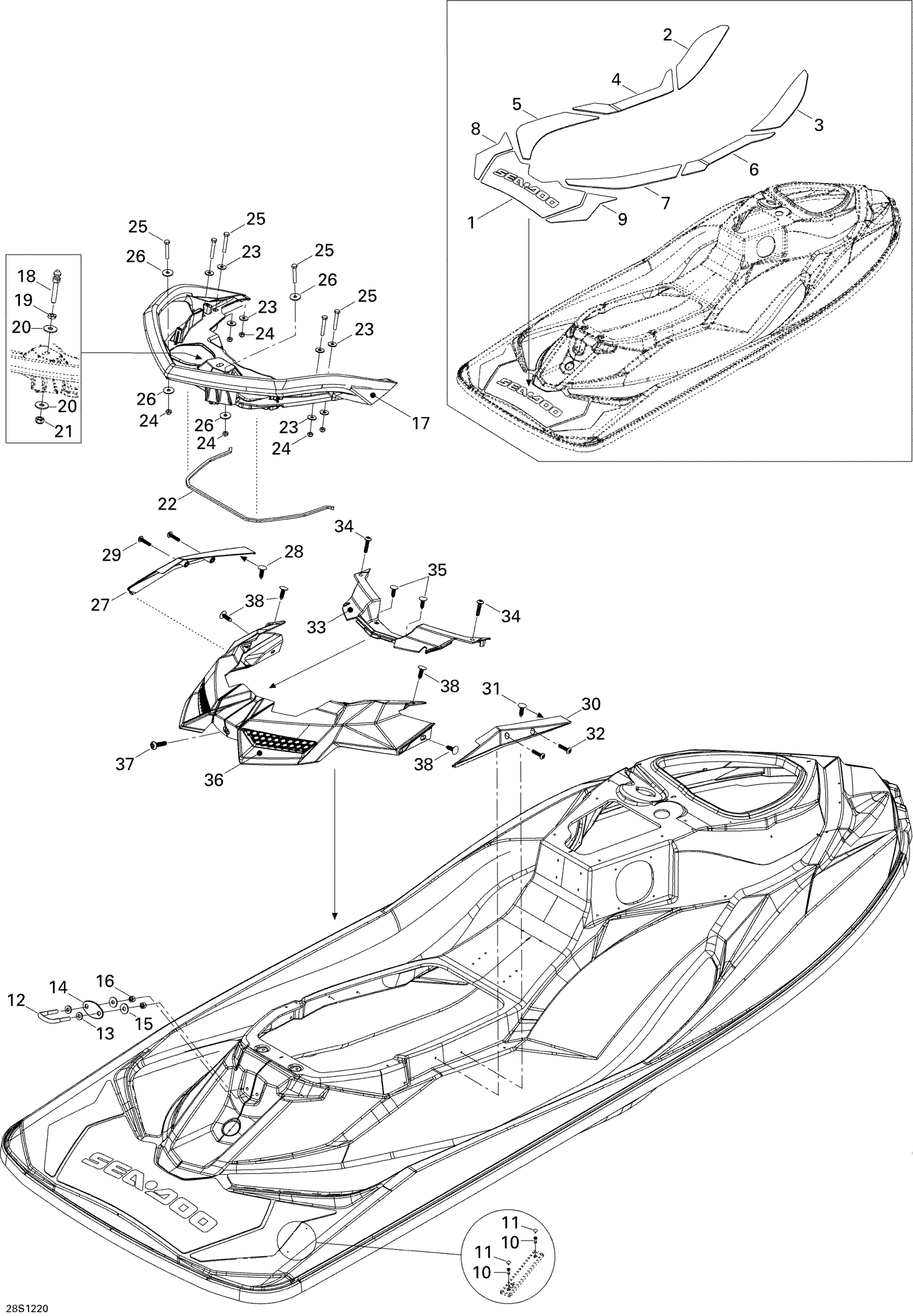

Sea-doo RXP-X 260 & RS, 2012 Body, Rear View Diagram

#

Description
Price

1

Platform Carpet

291003586

$57.82

2

Front Carpet LH

291003587

$28.57

3

Front Carpet RH

291003588

$28.57

4

Center Front Carpet LH

291003589

$37.67

5

Rear Center Carpet LH

291003577

$37.67

6

Center Front Carpet RH

291003591

$37.67

7

Rear Center Carpet RH

291003578

$37.67

8

Rear Carpet LH

291003593

$12.91

9

Rear Carpet RH

291003594

$12.91

10

Rivet 1/8"

293150016

$0.29

11

Black, Snap Cap

293000014

$0.85

12

U-Clamp

292000933

$32.47

13

Flat Washer M8.5 x 18

293050001

$1.29

14

Black, Finition Plate

291001386

$8.57

15

Flat Washer 8 mm, Stainless

234082600

$1.98

16

Hex. Elastic Nut M8 Brass

232581200

$1.29

17

Black, Rear Handle Ass'y | Includes 470 TO 470e

291004620

$76.02

18

Stud Seat

291003877

$38.32

19

Hex. Jam Nut M10

232100600

$1.85

20

Flat Washer 10 mm, Stainless

234002600

$1.85

21

Elastic Stop Nut M10, Brass

232501200

$2.16

22

Gasket

292002523

$8.64

23

Flat Washer M6, Stainless

234062600

$0.64

24

Elastic Stop Nut M6, Brass

232561200

$3.51

25

Hex. Screw M6 X 40

207164060

$2.74

26

Flat Washer M6.6 X 22

250200022

$1.87

27

LH Handle Cosmetic

291003373

$47.73

28

Black, Dart

293730006

$0.81

29

Screw Torx M6.81 X 30

250000626

$1.85

30

Yellow Cosmetic RH | Model White

291004431

$41.57

31

Black, Dart

293730006

$0.81

32

Screw Torx M6.81 X 30

250000626

$1.85

33

Deep Black, Vent Cover

291003372

$13.62

34

Screw Torx M6.81 X 30

250000626

$1.85

35

Black, Dart

293730006

$0.81

36

Deep Black, Cosmetic Rear

291004365

$42.87

37

Screw Torx M6.81 X 30

250000626

$1.85

38

Black, Dart

293730006

$0.81
