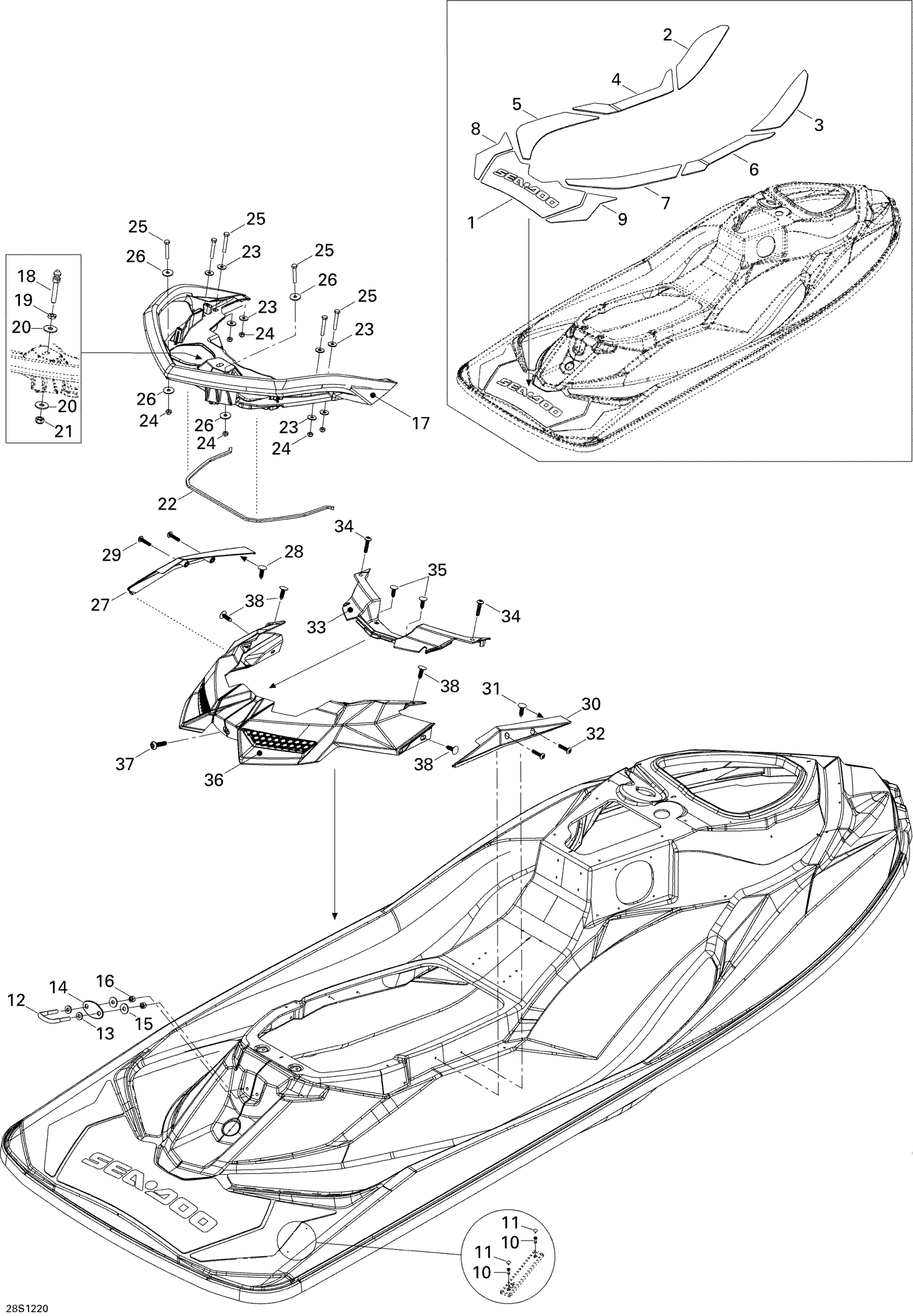

Sea-doo RXP-X 260 & RS, 2012 Body, Rear View Diagram

#

Description
Price

1

Platform Carpet

291003586

$71.99

2

Front Carpet LH

291003587

$35.99

3

Front Carpet RH

291003588

$35.99

4

Center Front Carpet LH

291003589

$46.49

5

Rear Center Carpet LH

291003577

$46.49

6

Center Front Carpet RH

291003591

$46.49

7

Rear Center Carpet RH

291003578

$46.49

8

Rear Carpet LH

291003593

$15.89

9

Rear Carpet RH

291003594

$15.89

10

Rivet 1/8"

293150016

$0.40

11

Black, Snap Cap

293000014

$1.09

12

U-Clamp

292000933

$59.49

13

Flat Washer M8.5 x 18

293050001

$3.07

14

Black, Finition Plate

291001386

$10.99

15

Flat Washer 8 mm, Stainless

234082600

$2.43

16

Hex. Elastic Nut M8 Brass

232581200

$2.22

17

Black, Rear Handle Ass'y | Includes 470 TO 470e

291004620

$94.49

18

Stud Seat

291003877

$48.99

19

Hex. Jam Nut M10

232100600

$2.22

20

Flat Washer 10 mm, Stainless

234002600

$2.22

21

Elastic Stop Nut M10, Brass

232501200

$2.64

22

Gasket

292002523

$9.32

23

Flat Washer M6, Stainless

234062600

$0.77

24

Elastic Stop Nut M6, Brass

232561200

$4.23

25

Hex. Screw M6 X 40

207164060

$3.38

26

Flat Washer M6.6 X 22

250200022

$2.72

27

LH Handle Cosmetic

291003373

$31.99

28

Black, Dart

293730006

$0.99

29

Screw Torx M6.81 X 30

250000626

$3.91

30

Yellow Cosmetic RH | Model White

291004431

$53.99

31

Black, Dart

293730006

$0.99

32

Screw Torx M6.81 X 30

250000626

$3.91

33

Deep Black, Vent Cover

291003372

$18.76

34

Screw Torx M6.81 X 30

250000626

$3.91

35

Black, Dart

293730006

$0.99

36

Deep Black, Cosmetic Rear

291004365

$52.99

37

Screw Torx M6.81 X 30

250000626

$3.91

38

Black, Dart

293730006

$0.99
