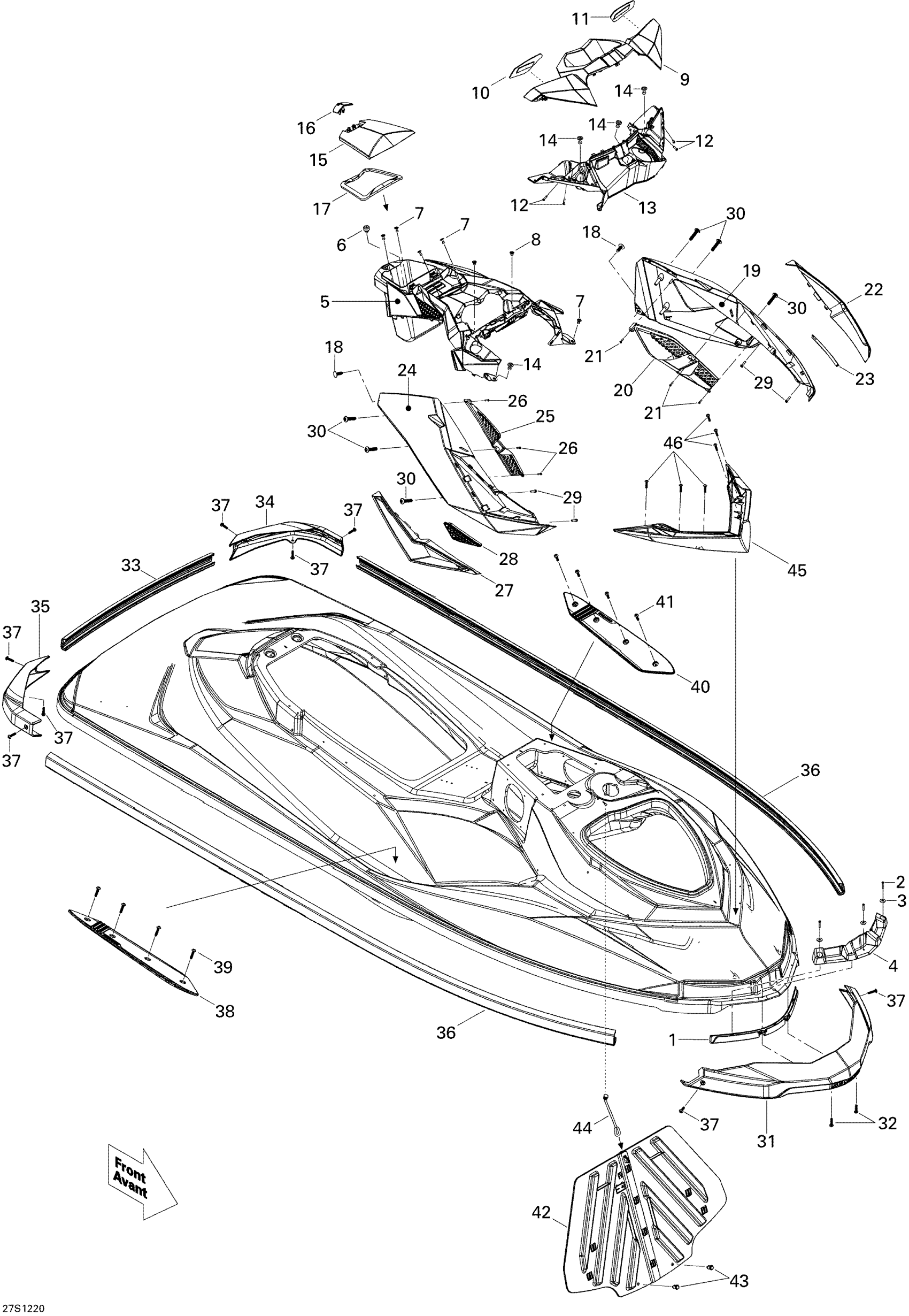

Sea-doo RXP-X 260 & RS, 2012 Body, Front View Diagram

#

Description
Price

1

Deck Nose

291003897

$18.99

2

Hex. Flange Screw K40 X 25

241142560

$2.64

3

Flat Washer 4 mm, Stainless

234042600

$1.15

4

Bumper Support | Package SE Manta Green

291003704

$21.99

5

Kit Console This part replaces 291004282.

295501182

$124.99

6

Rubber Bumper

293830005

$8.09

7

Pop Rivet 3/16"

293150123

$4.29

8

Pop Rivet 3/16

293150186

$2.09

9

Black Bezel Ass'y | Package SE This part replaces 291004489.

291004261

$149.99

10

Mirror RH, With Double-Face Tape

291003090

$48.49

11

Mirror LH, With Double-Face Tape

291003091

$48.49

12

Flange Torx Screw K40 X 16

250000287

$2.11

13

Deep Black, Mirror Support

291004271

$48.99

14

Pop Rivet 3/16"

293150123

$4.29

15

Deep Black, Glove Box Door

291004579

$44.99

16

Black, Latch

264000164

$15.99

17

Urethane Seal

293250265

$17.49

18

Black, Dart

293730006

$0.99

19

LH LATERAL SIDE COSMETIC - Call your local BRP dealership

291003346

Unavailable

20

Black, LH Side Grille

291003348

$27.99

21

Flange Torx Screw K40 X 16

250000287

$2.11

22

Front Cosmetic LH | Model White

291004417

$45.49

23

Deep Black, LH Front Hood Grille | Model Dragon Red

291003343

$12.99

24

RH LATERAL COSMETIC - Call your local BRP dealership

291003347

Unavailable

25

Deep Black, RH Side Grille

291003349

$27.99

26

Flange Torx Screw K40 X 16

250000287

$2.11

27

Front Cosmetic RH | Model White

291004420

$45.49

28

Deep Black, RH Front Hood Grill | Model Dragon Red

291003344

$12.99

29

Hex. Screw 10-14 X 7/8”

211000023

$3.59

30

Screw Torx M6.81 X 30

250000626

$3.91

31

Front Bumper This part replaces 291005401.

291004277

$76.49

32

Screw Torx M6.81 X 30

250000626

$3.91

33

Lateral Bumper

291003872

$148.49

34

Black, Corner Bumper This part replaces 291004152.

291004278

$33.99

35

Black, Corner Bumper This part replaces 291004153.

291004279

$33.99

36

Lateral Bumper

291003872

$148.49

37

Screw Torx M6.81 X 30

250000626

$3.91

38

RH FOOTREST - Call your local BRP dealership

291003637

Unavailable

39

Plastite Screw Torx Cone HD.M6.81X3

250001194

$4.66

40

LH FOOTREST - Call your local BRP dealership

291003638

Unavailable

41

Plastite Screw Torx Cone HD.M6.81X3

250001194

$4.66

42

Divider Ass'y

291004572

$104.99

43

Tuflok Plastic Rivet

293150230

$1.47

44

Holding Strap

269502111

$18.49

45

Deflector

291004367

$75.99

46

Screw Torx M6.81 X 30

250000626

$3.91
