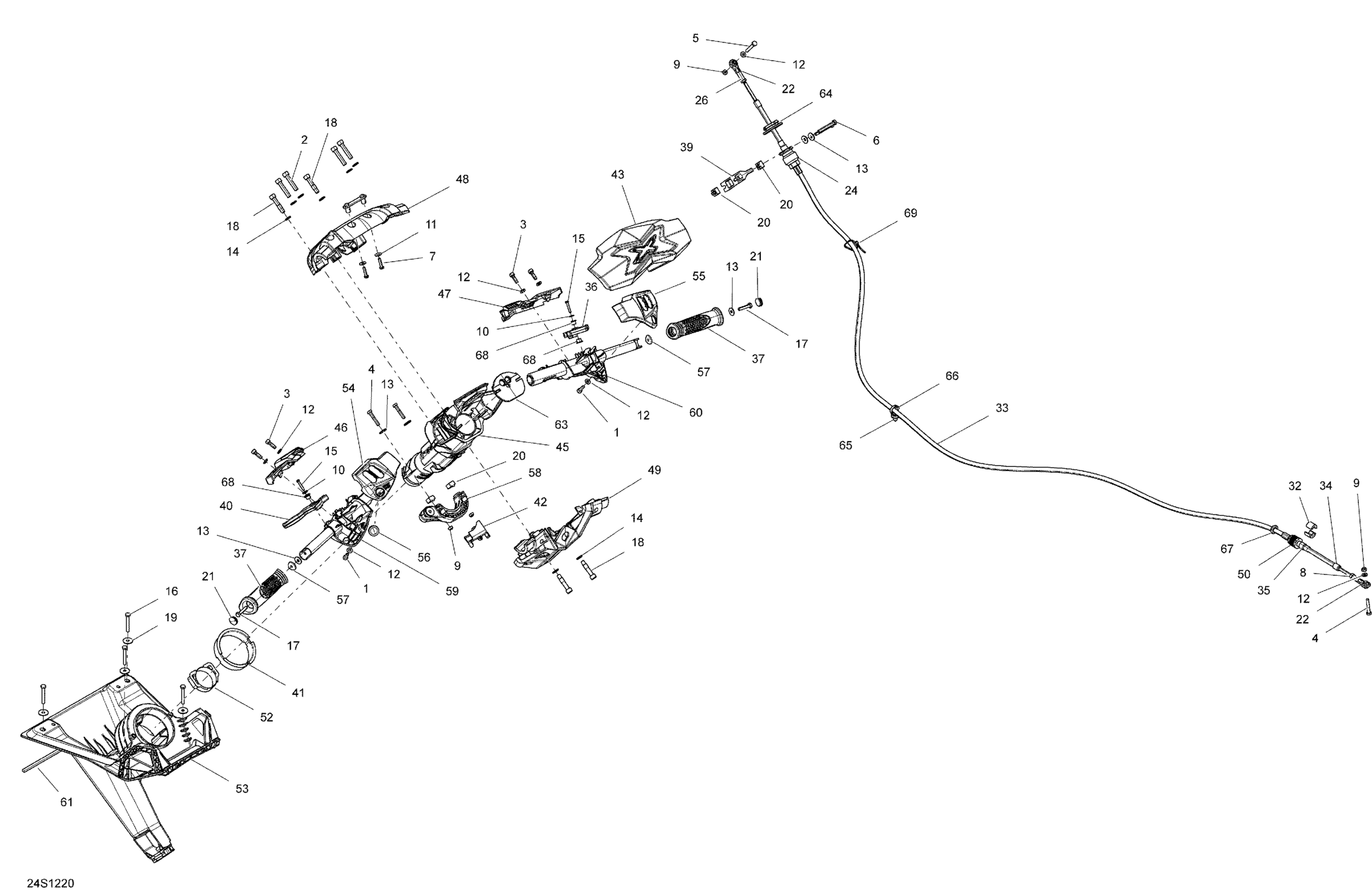

Sea-doo RXP-X 260 & RS, 2012 Steering Diagram

#

Description
Price

1

Socket Screw M6 X 16

205061660

$1.25

2

SOCKET HEAD SCREW M8 X 40 - Call your local BRP dealership

205084060

Unavailable

3

Socket Head Screw M6 X 20, Scotch Grip

205562060

$0.62

4

Hex. Screw M6 X 35

207163560

$1.17

5

Hex. Screw M6 X 40

207064060

$1.40

6

Hex. Screw M6 X 50

207165060

$0.75

7

Hex. Screw 10-14 X 7/8”

211000023

$2.91

8

Hex. Nut 1/4"-28

211100056

$0.56

9

Elastic Stop Nut M6, Brass

232561200

$3.51

10

Flat Washer 4 mm, Stainless

234042600

$0.92

11

Flat Washer 5 mm, Stainless

234052600

$0.64

12

Stainless Flat Washer M6

234061600

$0.25

13

Flat Washer M6, Stainless

234062600

$0.64

14

Flat Washer M8, Stainless

234080600

$1.25

15

Hex. Flange Screw K40 X 25

241142560

$2.17

16

Hex Cap Screw M6X1.0X45 S.Grip

245064560

$1.79

17

Hex. Screw M6 X 30, Scotch Grip

250000002

$0.75

18

Torx-Button M/S M8 X 40 Stlss S.Gri

250000845

$3.25

19

Flat Washer M6.6 X 22

250200022

$1.87

20

Housing Nut M6 | Included 550f to 550f2

269502408

$4.42

21

Black, Cap

277000203

$7.48

22

Ball Joint

277000775

$40.27

24

Ajustment Knob

277000782

$16.22

26

Hex. Nut 1/4"-28

211100056

$0.56

32

Half Ring

277001527

$8.35

33

Steering Cable Ass'y | Includes 540 TO 540d

277001578

$169.62

34

Wiper Rod

277001582

$8.83

35

End Piece

277001583

$11.14

36

Throttle Handle

277001944

$30.52

37

Handlebar Grip

277002286

$14.92

39

Thrust Support Ass'y

277001655

$22.72

40

Reverse Handle

277001945

$34.42

41

Wear Ring

277001653

$9.74

42

Spacer

277001654

$11.40

43

Handle Pad

277001683

$82.06

45

Steering Colomn

277001807

$132.81

46

LH UPPER HOUSING - Call your local BRP dealership

277001686

Unavailable

47

Upper Housing RH

277001688

$85.77

48

FRONT EXTENSION BLOC - Call your local BRP dealership

277001909

Unavailable

49

REAR EXTENSION BLOC - Call your local BRP dealership

277001910

Unavailable

50

Steering Cable Lock This part replaces 277000784.

277001729

$10.41

52

Wear Ring

277002318

$12.43

53

Steering Support Ass'y | Includes 710 TO 710b

277001913

$90.32

54

LH HOUSING COVER - Call your local BRP dealership

277001794

Unavailable

55

RH Housing Cover

277001718

$102.67

56

Switch Knob, Red

277001802

$8.61

57

Insert Grip Handle

277001863

$7.70

58

Steering Arm Support Ass'y | Includes 460 TO 460c

277001872

$35.04

59

LH LOWER HOUSING - Call your local BRP dealership

277001884

Unavailable

60

RH LOWER HOUSING - Call your local BRP dealership This part replaces 277001966.

277001951

Unavailable

61

Seal 1000Mm Long

219704373

$7.64

63

Grommet

293720086

$10.18

64

Cable Grommet

293720090

$6.59

65

Mount Dart

293730040

$0.86

66

Tie Wrap 368 mm

293750008

$0.85

67

Rubber Washer

293830063

$1.51

68

Bushing

293900091

$3.34

69

Tie-Rap 180 mm

414115200

$0.09
