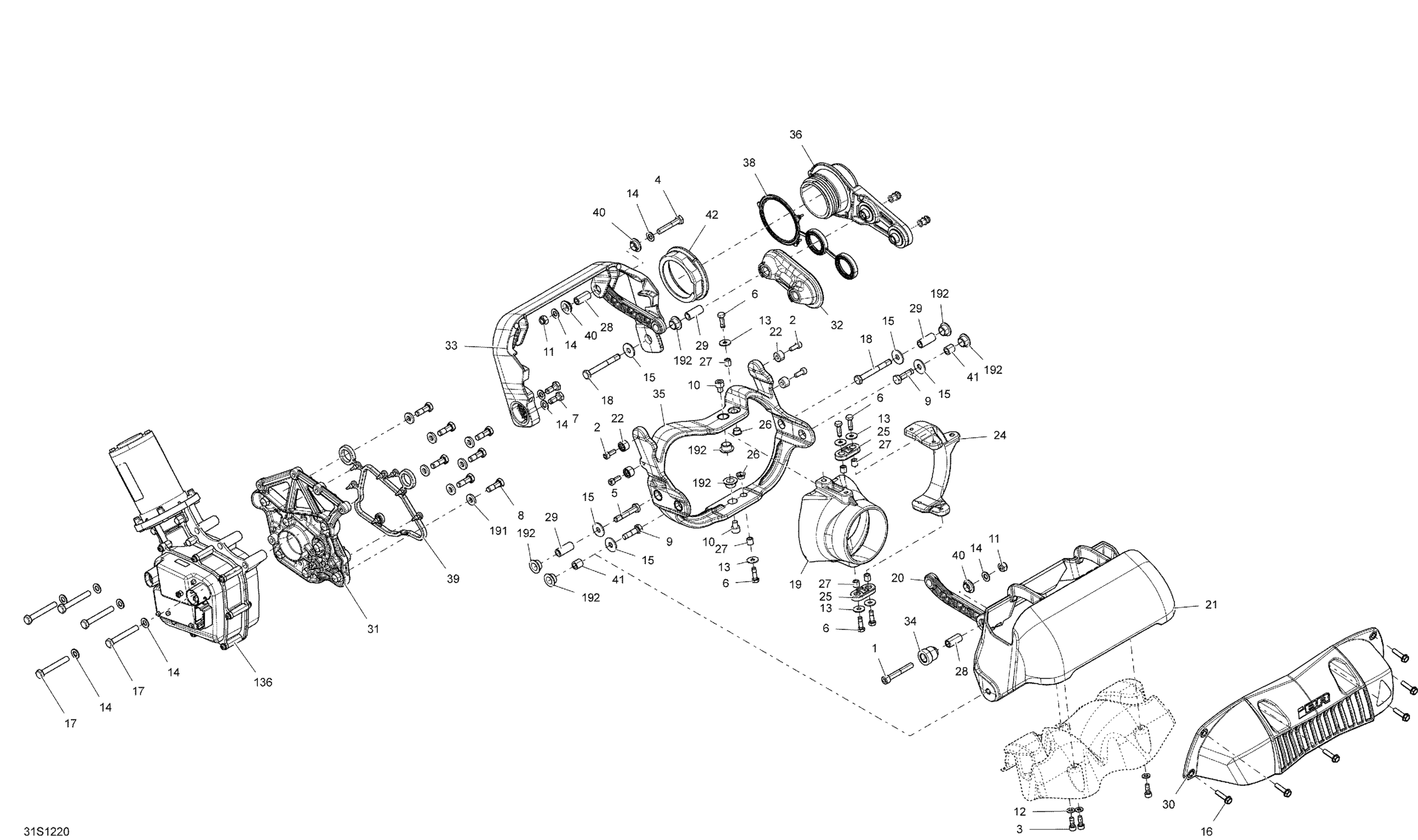

Sea-doo RXP-X 260 & RS, 2012 Reverse Diagram

#

Description
Price

1

Socket Head Screw M8 X 55

205085560

$3.61

2

Socket Head Screw M6 X 16, Scotch Grip

205561660

$1.37

3

Socket Head Screw M6 X 16, Scotch Grip

205561660

$1.37

4

Hex. Screw M8 X 45

207084560

$2.77

5

HEX. SCREW S. GRIP M8 X 45 - Call your local BRP dealership

207284560

Unavailable

6

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.22

7

HEX SCREW S.GRIP M8 X 20 - Call your local BRP dealership

250000595

Unavailable

8

Hex. Screw M8 X 25, Scotch Grip

207382560

$1.98

9

Hex. Screw M8 X 30, Scotch Grip

207383060

$1.55

10

Socket Head Screw M8 X 10, Scotch Grip

211000127

$3.07

11

Hex. Elastic Nut M8 Brass

232581200

$1.29

12

Stainless Flat Washer M6

234061600

$0.25

13

Flat Washer M6, Stainless

234062600

$0.64

13

Flat Washer M6, Stainless

234062600

$0.64

14

Stainless, Flat Washer 8 mm

234081600

$0.46

15

Flat Washer 8 mm, Stainless

234082600

$1.98

16

Hex. Flange Screw M6.81 X 25, Plastite

243162560

$1.46

17

Hex. Screw M8 X 60, Scotch Grip

250000187

$3.61

18

Hex. Screw M8 X 70, Scotch Grip

250000506

$5.54

19

Jet Pump Nozzle

267000727

$60.42

20

Linkage Arm

268000145

$13.62

21

Reverse Gate Ass'y

268000048

Unavailable

22

Friction Sleeve

268000045

$6.42

24

Nozzle Lever, Black

268000148

$48.07

25

Direction Lever Arm

268000058

$8.94

26

Bushing

268000059

$9.71

27

Spacer

268000060

$10.09

28

SPACER - Call your local BRP dealership

268000062

Unavailable

29

Spacer

268000063

$12.97

30

Guard

268000162

$23.37

31

LH Fixing Plate Ass'y

268000111

$34.42

32

RH Support Plate

268000085

$8.41

33

U Arm, Black

268000087

Unavailable

34

Bushing

268000099

$6.49

35

TRIMMING RING, BLACK - Call your local BRP dealership

268000155

Unavailable

36

RH Fixing Plate Ass'y

268000130

$27.92

38

RH FORMED SEAL - Call your local BRP dealership

268000105

Unavailable

39

LH Formed Seal

268000129

$6.42

40

Venturi Bushing

271000321

$6.18

41

Spacer

271001039

$11.78

42

Nut 72 mm

274000224

$12.17

136

IBR Actuator

278003040

$1,286.97

191

Flat Washer M8.5 x 18

293050001

$1.29

192

Venturi Bushing

293900007

$3.71
