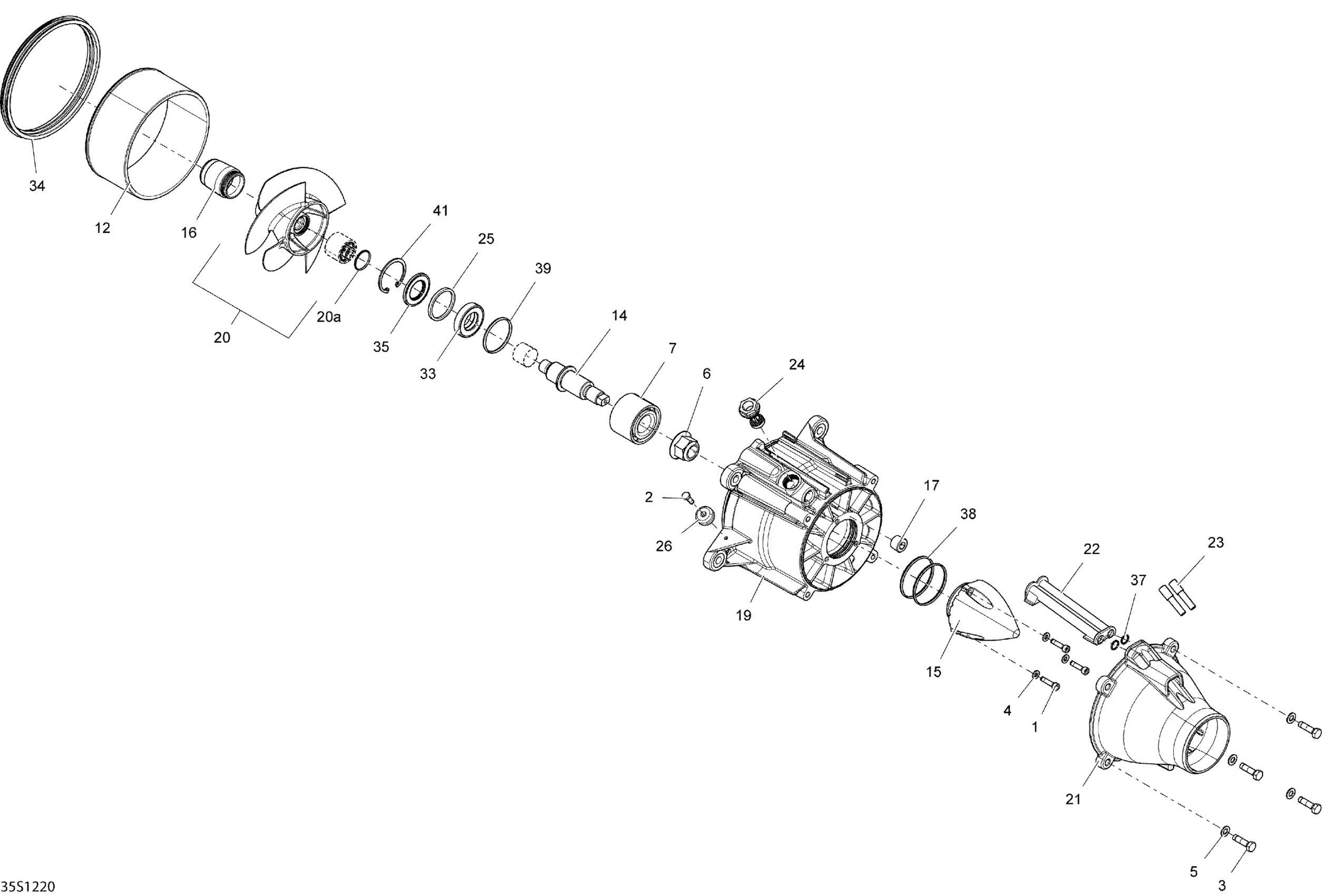

Sea-doo RXP-X 260 & RS, 2012 Pump Diagram

#

Description
Price

1

Socket Head Screw M6 X 25, Scotch Grip

205562560

$2.11

2

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.47

3

Hex. Screw M8 X 30, Scotch Grip

207383060

$1.90

4

Stainless Flat Washer M6

234061600

$0.33

5

Stainless, Flat Washer 8 mm

234081600

$0.55

6

Elastic Flange Nut M20

250100104

$12.66

7

Angled Bearing This part replaces 267000030.

267000900

$80.99

12

Wear Ring

267000372

$84.99

14

Impeller Shaft

267000388

$116.49

15

Impeller Cover

267000428

$18.49

16

Guard

271002228

$12.99

17

Black, Plastic Plug

267000469

$7.59

19

Impeller Housing

271002018

$294.99

20

Impeller Ass'y This part replaces 267000631.

267000984

$497.99

20a

O-Ring

293300114

$15.89

21

Venturi, Black

267000663

Unavailable

22

Water Outlet

271000785

$3.80

23

Siphon Tube

271001133

$10.99

24

Plug | Includes 370z to 370z1

267000282

$19.49

25

Spacer

271001393

$8.59

26

Anode Zinc

271001813

$18.99

33

Seal

271002071

$33.99

34

Neoprene Seal

293200087

$12.63

35

Oil Seal

293200089

$19.99

37

O-Ring

293300013

$8.18

38

O-Ring

293300086

$3.59

39

O-Ring

293300090

$7.20

41

Circlip

293370038

$8.79
