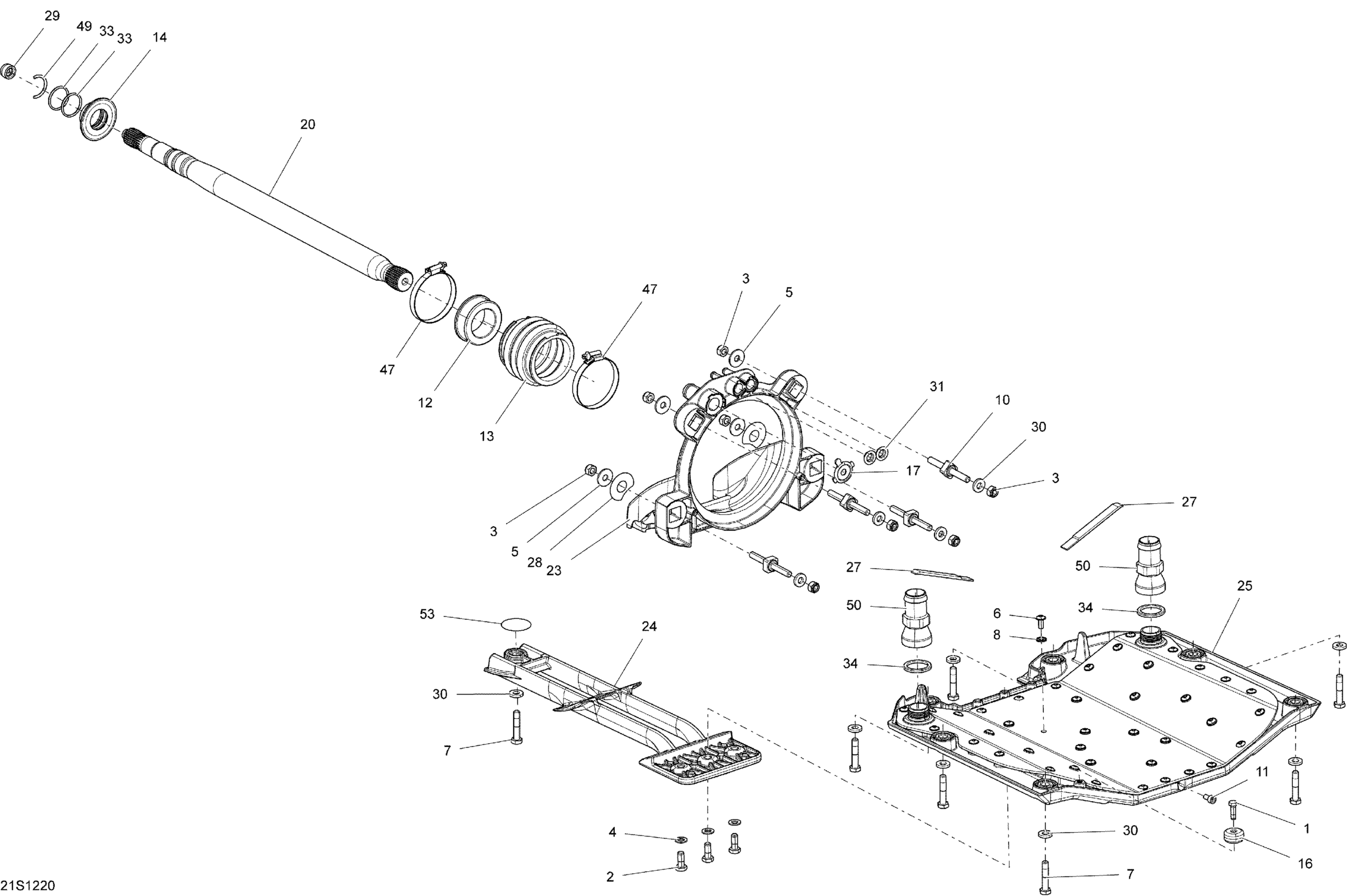

Sea-doo RXP-X 260 & RS, 2012 Propulsion Diagram

#

Description
Price

1

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.22

2

Hex. Screw M8 X 16, Scotch Grip

207381660

$0.83

3

Hex. Elastic Nut M8 Brass

232581200

$1.29

4

Stainless, Flat Washer 8 mm

234081600

$0.46

5

Flat Washer 8 mm, Stainless

234082600

$1.98

6

Torx Button Head Screw M6 X 14

250000064

$7.06

7

HEX. SCREW M8 X 40, SCOTCH GRIP - Call your local BRP dealership

250000530

Unavailable

8

Sealing Washer 1/4

250200104

Unavailable

10

Square Stud

250300046

$11.91

11

Socket Drain Plug M6 X 12

250500005

$11.74

12

CARBON RING - Call your local BRP dealership | Not Available. Ref Bulletin 2019-4

271001420

Unavailable

13

Bellow This part replaces 271001422.

271001933

$18.82

14

Carbon Ring Kit | Includes 280b to 280b4

295501204

$66.27

16

Anode Zinc

271001813

$13.62

17

Reducer, Green This part replaces 271001586.

271002029

$12.82

20

Drive Shaft

271001719

$265.82

23

PUMP SUPPORT - Call your local BRP dealership | Hull LFI

271001865

Unavailable

24

Pump Grate

271001971

$51.97

25

Riding Plate Ass'y | Includes 210 to 210f

271001750

$252.17

27

Gasket, Neoprene 2000Mm Long

219704476

$12.64

28

Shim 0.3 mm

272000053

$8.02

29

Drive Shaft Plug

272000173

$7.02

30

Flat Washer M8.5 x 18

293050001

$1.29

31

Watertight Seal

293250084

$5.81

33

O-Ring

293300107

$0.83

34

O-Ring

293300121

$6.18

47

Norma Clamp

293650079

$8.89

49

C-Clip

271001577

$2.68

50

Straight Plastic Fitting

293710111

$6.88

53

PROTECTOR DISK - Call your local BRP dealership

293830047

Unavailable
