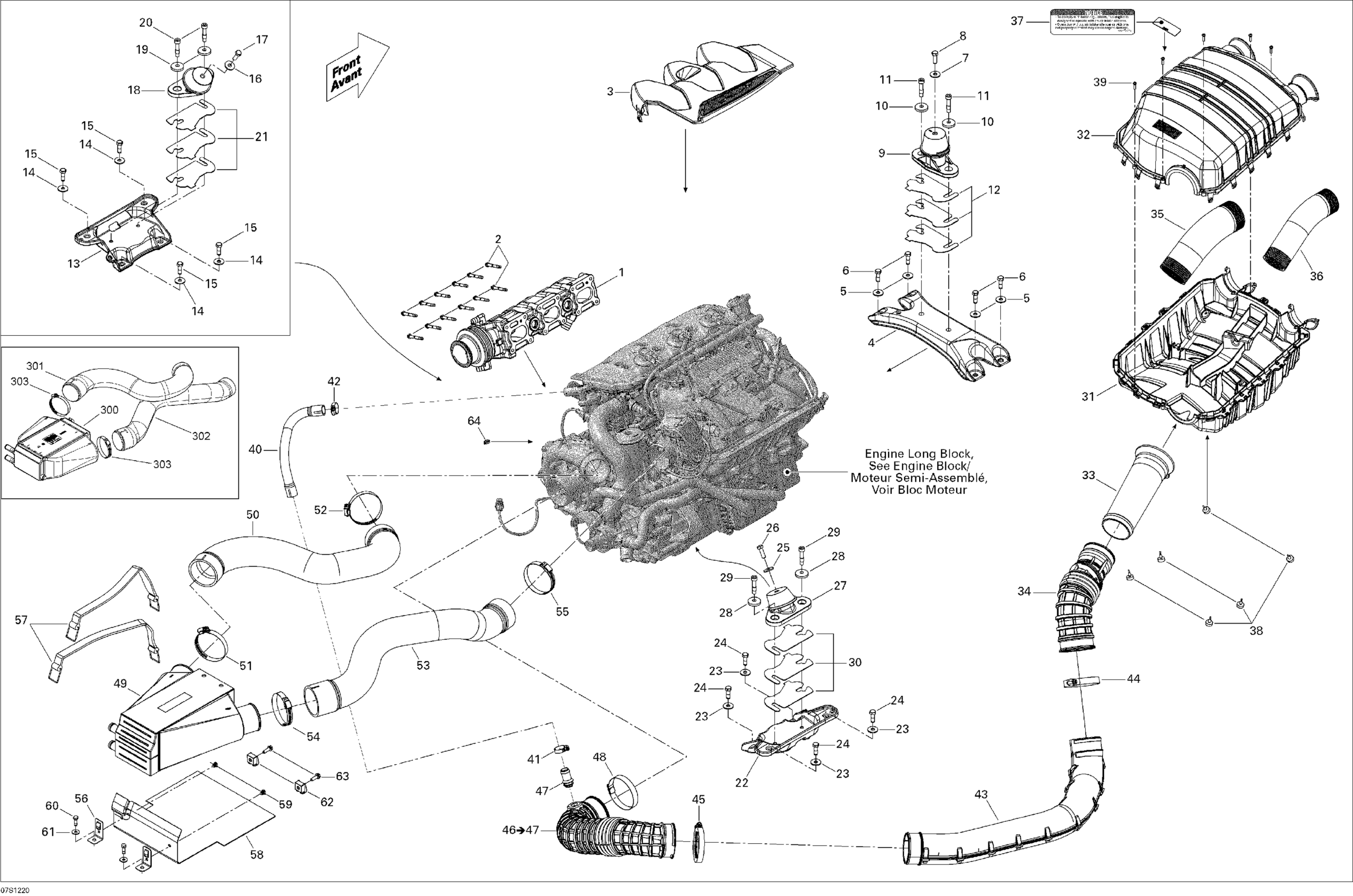

Sea-doo RXP-X 260 & RS, 2012 Engine And Air Intake Silencer Diagram

#

Description
Price

1

Engine Exhaust Manifold 0990732-00 - 150 This part replaces 420673294.

296000422

$651.92

2

Torx Flange Screw M6 X 45

420641198

$3.38

3

Engine Cover | Model RXT 260, RXT 260 RS

270000804

$64.15

4

FRONT SPACER - Call your local BRP dealership

270000842

Unavailable

5

Flat Washer 8 mm, Stainless

234082600

$1.98

6

Hex. Screw M8 X 25, Scotch Grip | Hull LFI

250000525

$3.25

7

Flat Washer 8 mm, Stainless

234082600

$1.98

8

Hex. Screw M8 X 25, Scotch Grip

207382560

$1.98

9

Engine Support Ass'y

270001096

$77.32

10

Cone Washer

250200018

$4.64

11

Torx-Button M/S M8 X 40 Stlss S.Gri

250000845

$3.25

12

Shim 1.3 mm

270000762

$9.04

13

REAR SPACER - Call your local BRP dealership

270000843

Unavailable

14

Flat Washer 8 mm, Stainless

234082600

$1.98

15

Hex. Screw M8 X 25, Scotch Grip | Hull LFI

250000525

$3.25

16

Flat Washer 8 mm, Stainless

234082600

$1.98

17

Hex. Screw M8 X 25, Scotch Grip

207382560

$1.98

18

Engine Support Ass'y

270001081

$84.47

19

Cone Washer

250200018

$4.64

20

Torx-Button M/S M8 X 40 Stlss S.Gri

250000845

$3.25

21

Shim 1.3 mm

270000762

$9.04

22

REAR SPACER - Call your local BRP dealership

270000843

Unavailable

23

Flat Washer 8 mm, Stainless

234082600

$1.98

24

Hex. Screw M8 X 25, Scotch Grip | Hull LFI

250000525

$3.25

25

Flat Washer 8 mm, Stainless

234082600

$1.98

26

Hex. Screw M8 X 25, Scotch Grip

207382560

$1.98

27

Engine Support Ass'y

270001081

$84.47

28

Cone Washer

250200018

$4.64

29

Torx-Button M/S M8 X 40 Stlss S.Gri

250000845

$3.25

30

Shim 1.3 mm

270000762

$9.04

31

SILENCER_INTAKE LWR - Call your local BRP dealership | Model RXT 260, RXT 260 RS

273000356

Unavailable

32

SILENCER_INTAKE UP - Call your local BRP dealership | Model RXT 260, RXT 260 RS

273000372

Unavailable

33

Intake Hose

273000359

$44.00

34

HOSE CONNECTOR - Call your local BRP dealership | Model GTR

273000306

Unavailable

35

Air Silencer Hose

273000290

$20.12

36

AIR SILENCER TUBE - Call your local BRP dealership | Model RXT 260, RXT 260 RS

273000299

Unavailable

37

Air Silencer Notice Decal

219903177

Unavailable

38

Rubber Stopper

708000759

$3.61

39

Flange Torx Screw K40 X 16

250000287

$1.74

40

Formed Hose

270000864

$9.81

41

Tridon Gear Clamp

293650051

$3.61

42

Tridon Gear Clamp

293650051

$3.61

43

INTAKE HOSE, CENTER - Call your local BRP dealership | Model GTR

273000311

Unavailable

44

Tridon Clamp

293650179

$8.81

45

Tridon Clamp

293650179

$8.81

46

Hose Intake, Rear | Model GTR

273000328

$46.12

47

Breather Valve

273000234

$10.63

48

Tridon Clamp

293650179

$8.81

49

Intercooler

276000273

Unavailable

50

Inlet Hose This part replaces 273000282.

273000404

$55.87

51

Tridon Clamp

293650179

$8.81

52

Tridon Clamp

293650179

$8.81

53

Outlet Hose This part replaces 273000300.

273000405

$73.42

54

Tridon Clamp

293650179

$8.81

55

Tridon Clamp

293650179

$8.81

56

STRAP CLIP 90 - Call your local BRP dealership

275500743

Unavailable

57

Fuel Tank Strap

293850093

$16.87

58

RUBBER PAD - Call your local BRP dealership | Engine 1503 HO 4-TEC

293830146

Unavailable

59

Black, Dart

293730016

$6.94

60

Hex. Flange Screw M6.81 x 20

243162060

$3.30

61

Flat Washer M6, Stainless

234062600

$0.64

62

Strap Anchor

270000854

$5.30

63

Hex. Flange Screw M6.81 x 20

243162060

$3.30

64

Tie Wrap 142 mm

293750002

$0.88

300

Intercooler | Model GTR

276000397

$380.87

301

Formed Hose | Engine 1503 HO 4-TEC

273000361

$85.04

302

Formed Hose | Engine 1503 HO 4-TEC

273000362

$73.42

303

Tridon Gear Clamp

293650244

$7.22
