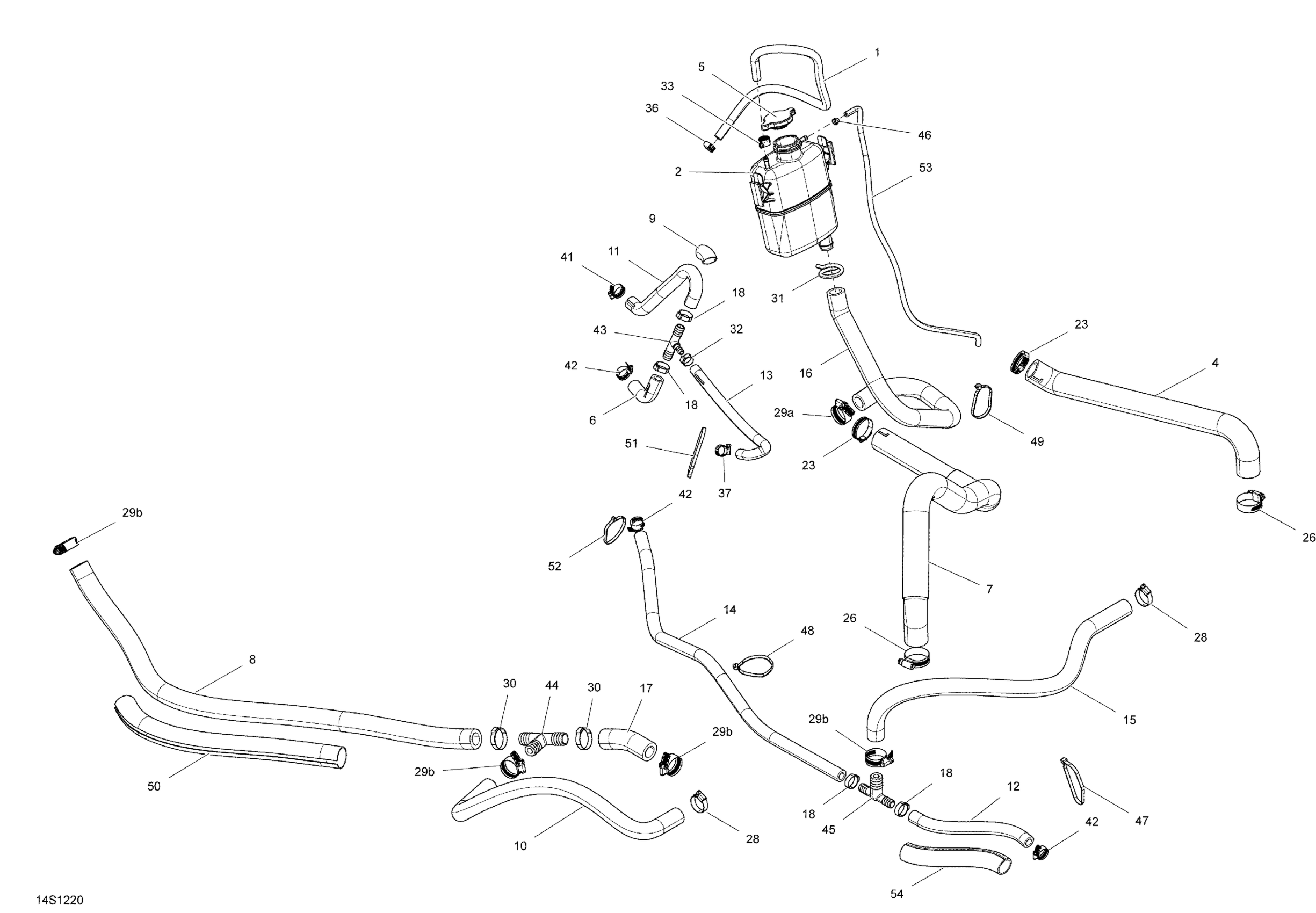

Sea-doo RXP-X 260 & RS, 2012 Cooling System Diagram

#

Description
Price

1

HOSE 1/4 - Call your local BRP dealership

204300184

Unavailable

2

Coolant Tank

276000086

$109.99

4

RH Radiator Hose

276000248

$58.99

5

Pressure Cap | Includes 720 to 720a

276000100

$25.99

6

Hose, Bypass Lower | With Catalyst This part replaces 276000137.

276000455

$19.49

7

Radiator Hose This part replaces 276000249.

276000492

$56.99

8

Hose 19.0Mm. 2000Mm Long

219704361

$48.99

9

PROTECTOR TUBE 25 MM - Call your local BRP dealership

276000162

Unavailable

10

Hose 19.0Mm. 2000Mm Long

219704361

$48.99

11

Hose, Bypass Upper | Without Catalyst This part replaces 276000244.

276000484

$19.49

12

Was 276000001 Hose 12.5 mm

219704394

$51.99

13

Formed Hose | Without Catalyst

276000246

$19.49

14

Was 276000001 Hose 12.5 mm

219704394

$51.99

15

Hose 19.0Mm. 2000Mm Long

219704361

$48.99

16

Formed Return Hose This part replaces 276000253.

276000493

$29.49

17

Hose 19.0Mm. 2000Mm Long

219704361

$48.99

18

Oetiker Clamp

293650012

$7.49

23

Tridon Gear Clamp

293650185

$13.99

26

Tridon Gear Clamp

293650185

$13.99

28

Tridon Gear Clamp

293650051

$4.19

30

Oetiker Gear Clamp

293650165

$5.39

31

Spring Clamp

293650115

$3.09

32

Oetiker Clamp | Europe

293650030

$5.19

33

Tridon Gear Clamp

293650170

$1.99

36

Tridon Gear Clamp

293650170

$1.99

37

Tridon Gear Clamp

293650171

$3.09

41

Tridon Gear Clamp

293650172

$3.09

42

Tridon Gear Clamp

293650172

$3.09

43

T-Fitting

293710116

$17.62

44

T-Fitting

293710131

$15.87

45

T-Fitting

293710132

$12.65

46

Tie Wrap 94 mm | 4X4

293750001

$1.03

47

Tie Wrap 368 mm

293750008

$1.04

48

Tie Wrap 368 mm

293750008

$1.04

49

Tie-Rap 180 mm

414115200

$0.11

50

Tubing 25 MM 1000MM Long

219704402

$15.99

51

Tie Wrap 368 mm

293750008

$1.04

52

Tie Wrap 368 mm

293750008

$1.04

53

Polyurethane Hose 10000Mm Long

219704410

$56.99

54

Tubing 25 MM 1000MM Long

219704402

$15.99

29a

Tridon Gear Clamp

293650019

$5.82

29b

Tridon Gear Clamp

293650051

$4.19
