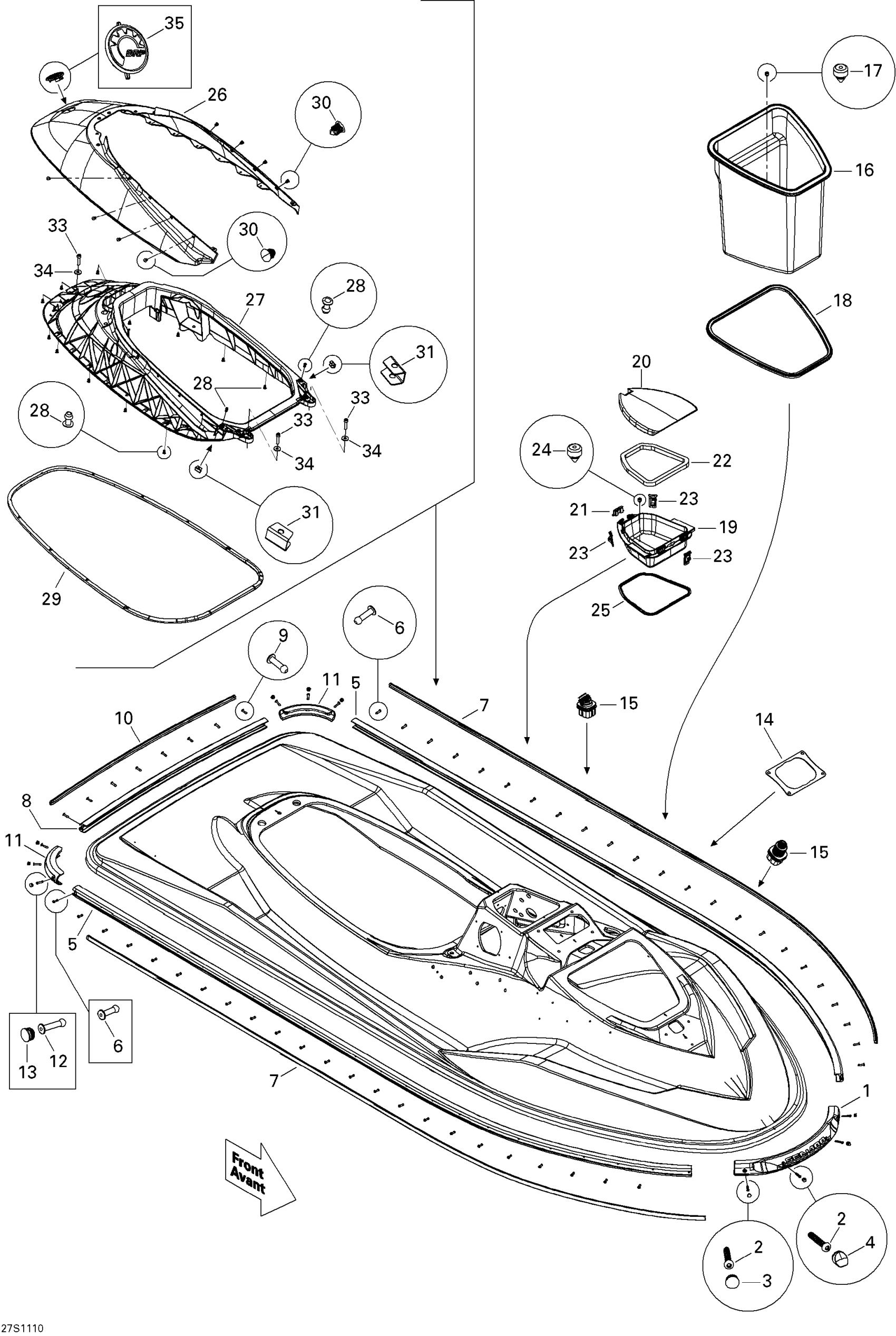

Sea-doo RXP-X 255 & RS, 2011 Body, Front View Diagram

#

Description
Price

1

BUMPER NOSE, BLACK - Call your local BRP dealership

291001942

Unavailable

2

TORX SCREW 10-14 X 1-1/8 - Call your local BRP dealership

250000236

Unavailable

3

Bumper Plug, Black

291001519

$5.49

4

Bumper Plug, Black

291001040

$7.39

5

Black, Side Bumper

204050270

$179.99

6

Pop Rivet 3/16"

293150005

$0.52

7

SIDE BUMPER TRIM - Call your local BRP dealership

204050271

Unavailable

8

REAR BUMPER, BLACK - Call your local BRP dealership

291002242

Unavailable

9

Pop Rivet 3/16"

293150005

$0.52

10

Black, Rear Bumper Trim - Call your local BRP dealership

204050279

Unavailable

11

Bumper Corner

291002244

$48.99

12

Pop Rivet 3/16"

293150013

$1.37

13

Bumper Plug, Black

291000339

$2.99

14

GASKET - Call your local BRP dealership

293250187

Unavailable

15

GROMMET - Call your local BRP dealership

293720042

Unavailable

16

STORAGE TRAY - Call your local BRP dealership

269500691

Unavailable

17

Rubber Bumper

293830005

$8.09

18

Seal Tray 1000Mm Long

219704368

$13.99

19

GLOVE BOX - Call your local BRP dealership

269500717

Unavailable

20

GLOVE BOX DOOR - Call your local BRP dealership

269500928

Unavailable

21

LATCH - Call your local BRP dealership

269500719

Unavailable

22

GASKET - Call your local BRP dealership

293250100

Unavailable

23

RETAINER LATCH - Call your local BRP dealership

269500820

Unavailable

24

Rubber Bumper

293830005

$8.09

25

Was 293250099 Gasket

219704377

$7.20

26

UPPER ENGINE COVER - Call your local BRP dealership

291002618

Unavailable

27

LOWER ENGINE COVER - Call your local BRP dealership

291002542

Unavailable

28

Pop Rivet 3/16"

293150088

$0.99

29

Seal Tray 1000Mm Long

219704368

$13.99

30

Black, Dart

293730016

$9.97

31

INSERT - Call your local BRP dealership

293450259

Unavailable

33

SOCKET HEAD SCREW M8 X 35 - Call your local BRP dealership

205083560

Unavailable

34

Flat Washer 8 mm, Stainless

234082600

$2.43

35

Bumper Plug

291002467

$26.49
