07- Off Power Assisted Steering

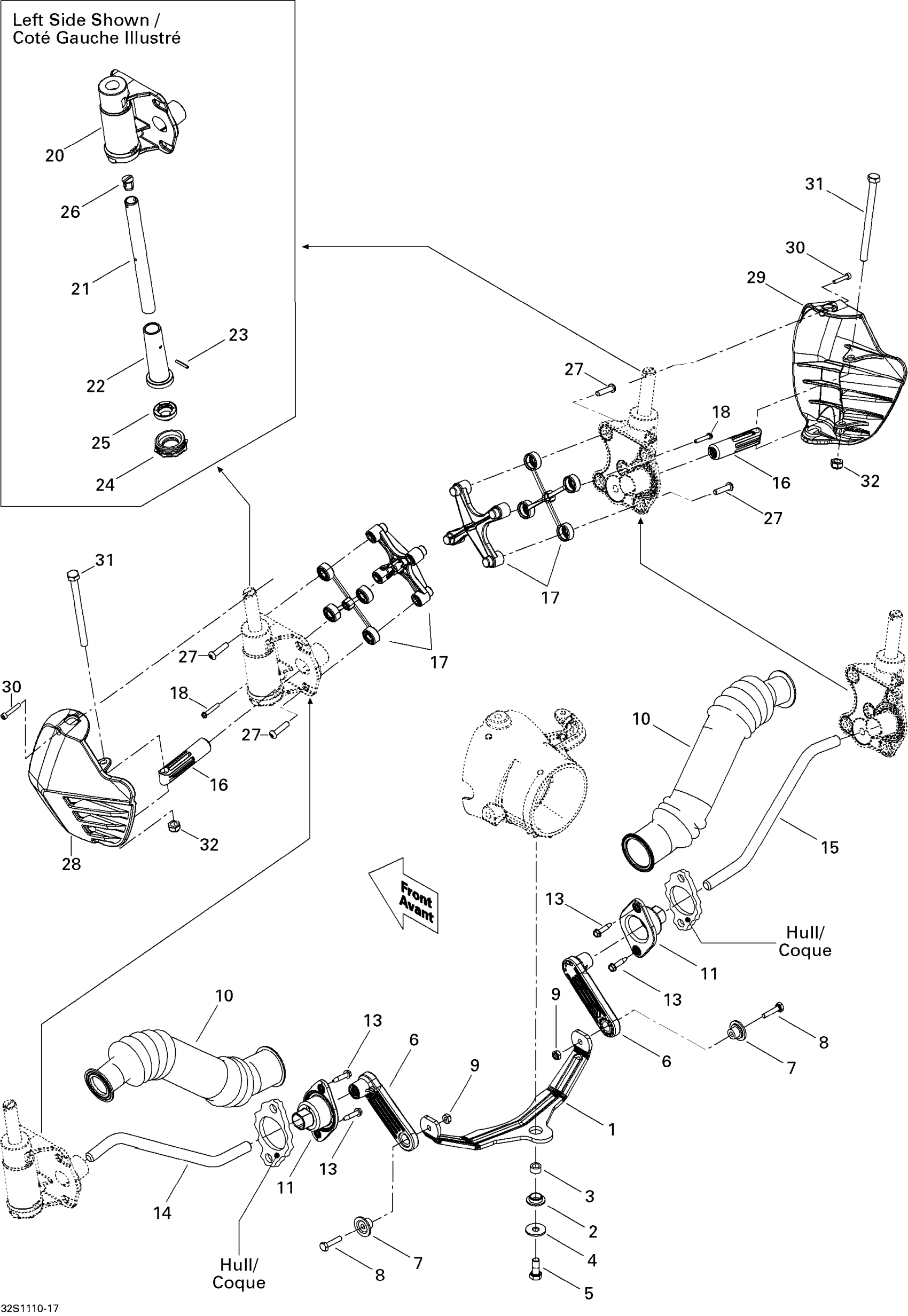

Sea-doo RXP-X 255 & RS, 2011 07- Off Power Assisted Steering Diagram
#
Description
Price
1
U LEVER - Call your local BRP dealership
277000979
Unavailable
2
Venturi Bushing
271000321
$8.69
3
Bushing
277000980
$15.99
4
Flat Washer 8 mm, Stainless
234082600
$2.43
5
Hex. Screw M8 X 20, Scotch Grip
207382060
$1.99
6
LEVER - Call your local BRP dealership
265000013
Unavailable
7
FLANGED BUSHING - Call your local BRP dealership
293900042
Unavailable
8
Hex. Screw M6 X 25
207162560
$1.47
9
Elastic Stop Nut M6, Brass
232561200
$4.23
10
Seal Tube
277001123
$45.99
11
ROD GROMMET - Call your local BRP dealership
277001164
Unavailable
13
Hex. Screw 10-14 X 7/8”
211000023
$3.59
14
STEERING STEM - Call your local BRP dealership
277001116
Unavailable
15
STEERING STEM - Call your local BRP dealership
277001116
Unavailable
16
FITTING STABILISATOR - Call your local BRP dealership
265000014
Unavailable
17
SUPPORT PLATE ASS'Y - Call your local BRP dealership
277001177
Unavailable
18
Hex. Flange Screw K40 X 25
241142560
$2.64
20
LH CYLINDER SUPPORT - Call your local BRP dealership
265000039
Unavailable
20
RH CYLINDER SUPPORT - Call your local BRP dealership
265000040
Unavailable
21
Pivot Rod
277001091
$56.99
22
SPACER - Call your local BRP dealership
265000048
Unavailable
23
Spring Pin
250400014
$3.28
24
Threaded Cover
265000009
Unavailable
25
WEAR RING - Call your local BRP dealership
277000985
Unavailable
26
LOCKING INSERT - Call your local BRP dealership
277001185
Unavailable
27
Torx Screw M6 X 25, Scotch Grip
250000328
$2.19
28
LH SIDE VANE - Call your local BRP dealership
277001486
Unavailable
29
RH Side Vane
277001487
$51.99
30
Socket Head Screw M4 X 25
205042560
$2.22
31
HEX. SCREW M8 X 110 - Call your local BRP dealership
250000077
Unavailable
32
Hex. Elastic Nut M8 Brass
232581200
$2.22
