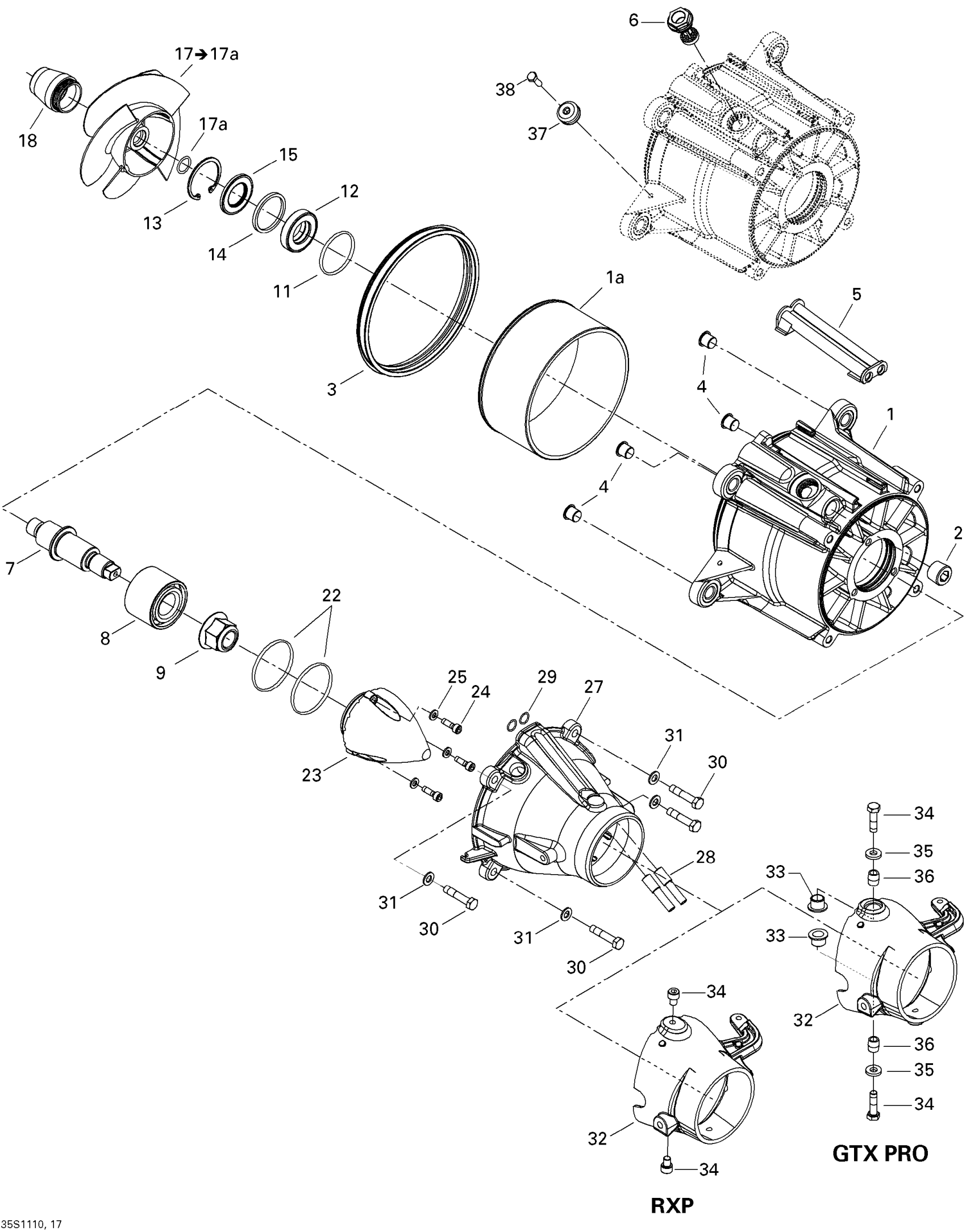

Sea-doo RXP-X 255 & RS, 2011 Pump Diagram

#

Description
Price

1

Housing Impeller Anodized This part replaces 267000417.

271002161

$329.99

1a

Wear Ring

267000372

$84.99

2

Black, Plastic Plug

267000469

$7.59

3

Neoprene Seal

293200087

$12.63

4

Bushing

267000093

$9.59

5

Water Outlet

271000785

$3.80

6

Plug | Includes 370z to 370z1

267000282

$19.49

7

Impeller Shaft

267000388

$116.49

8

Angled Bearing This part replaces 267000030.

267000900

$80.99

9

Elastic Flange Nut M20

250100104

$12.66

11

O-Ring

293300090

$7.20

12

Seal

271002071

$33.99

13

Circlip

293370038

$8.79

14

Spacer

271001393

$8.59

15

Oil Seal

293200089

$19.99

17

Impeller Assy | Includes 19a to 19c, Port Side This part replaces 267000444.

267000994

$497.99

17

Impeller Ass'y This part replaces 267000442.

267000970

$497.99

17a

O-Ring

293300114

$15.89

18

Guard

271002228

$12.99

22

O-Ring

293300086

$3.59

23

Impeller Cover

267000428

$18.49

24

Socket Head Screw M6 X 25, Scotch Grip

205562560

$2.11

25

Stainless Flat Washer M6

234061600

$0.33

27

VENTURI - Call your local BRP dealership | RXP

267000360

Unavailable

28

Siphon Tube

271001133

$10.99

29

O-Ring

293300013

$8.18

30

Hex. Screw M8 X 30, Scotch Grip

207383060

$1.90

31

Stainless, Flat Washer 8 mm

234081600

$0.55

32

STEERING NOZZLE, BLACK - Call your local BRP dealership | RXP

267000550

Unavailable

33

Not Available As Spare Parts

XXX

Unavailable

34

Socket Head Screw M8 X 10, Scotch Grip

211000127

$3.99

35

Not Available As Spare Parts

XXX

Unavailable

36

Not Available As Spare Parts

XXX

Unavailable

37

Anode Zinc

271001813

$18.99

38

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.47
