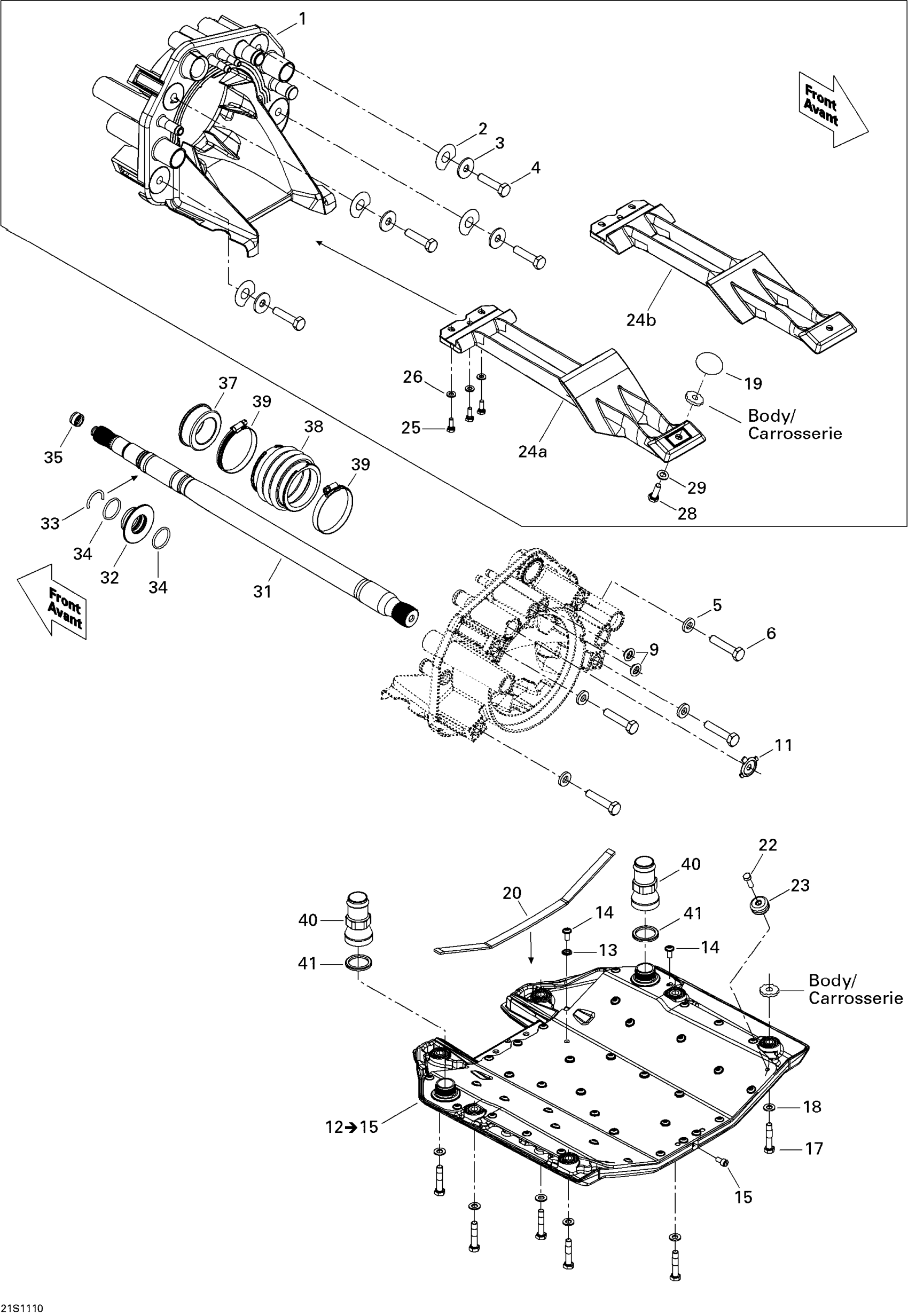

Sea-doo RXP-X 255 & RS, 2011 Propulsion Diagram

#

Description
Price

1

PUMP SUPPORT - Call your local BRP dealership

271001754

Unavailable

2

Shim 0.3 mm

272000053

$8.02

3

Flat Washer 10 mm, Stainless

234002600

$1.85

4

HEX. SCREW M10 X 45, SCOTCH GRIP - Call your local BRP dealership

250000189

Unavailable

5

Flat Washer

211200051

$1.34

6

HEX. SCREW M10 X 50, SCOTCH GRIP - Call your local BRP dealership

250000188

Unavailable

9

Watertight Seal

293250084

$5.81

11

Reducer, Green This part replaces 271001586.

271002029

$12.82

12

Riding Plate Ass'y | Includes 9 to 12

271001650

$252.17

13

Sealing Washer

250200114

$3.61

14

Torx Screw M6 X 14

250000384

$6.15

15

Socket Drain Plug M6 X 12

250500005

$11.74

17

Hex. Screw M8 X 40, Scotch Grip

250000230

$2.05

18

Stainless, Flat Washer 8 mm

234081600

$0.46

19

PROTECTOR DISK - Call your local BRP dealership

293830047

Unavailable

20

Gasket, Neoprene 2000Mm Long

219704476

$12.64

22

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.22

23

Anode Zinc

271001813

$13.62

24a

PUMP GRATE - Call your local BRP dealership

271001582

Unavailable

24b

PUMP GRATE - Call your local BRP dealership | International

271001658

Unavailable

25

Hex. Screw M6 X 16

207161660

$1.22

26

Stainless Flat Washer M6

234061600

$0.25

28

Hex. Screw M8 X 30, Scotch Grip

207383060

$1.55

29

Stainless, Flat Washer 8 mm

234081600

$0.46

31

Drive Shaft

271001601

$265.82

32

Carbon Ring Kit | Includes 280b to 280b4

295501204

$66.27

33

C-Clip

271001577

$2.68

34

O-Ring

293300107

$0.83

35

Drive Shaft Plug

272000173

$7.02

37

CARBON RING - Call your local BRP dealership | Not Available. Ref Bulletin 2019-4

271001420

Unavailable

38

Bellow This part replaces 271001422.

271001933

$18.82

39

Norma Clamp

293650079

$8.89

40

Straight Plastic Fitting

293710111

$6.88

41

O-Ring

293300121

$6.18
