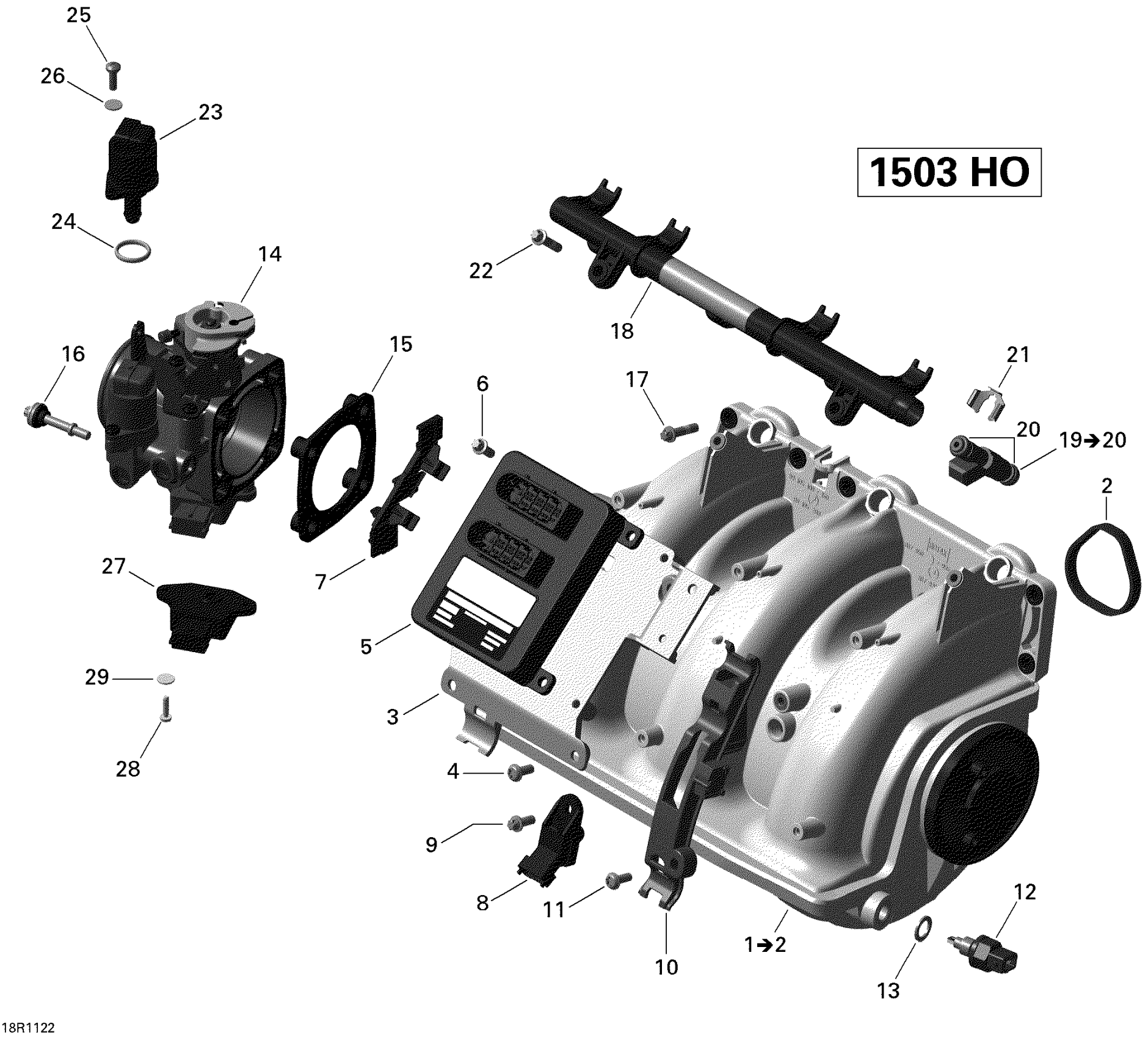

Sea-doo RXP-X 255 & RS, 2011 Air Intake Manifold And Throttle Body RXP Diagram

#

Description
Price

1

Induction Manifold | Includes 1 to 2

420867951

$649.99

2

Gasket | Included in gasket kit

420950740

$4.44

3

BASE PLATE - Call your local BRP dealership

420851521

Unavailable

4

Torx Flange Screw M6 X 16

420641048

$2.96

5

Electronic Box

420665861

$1.00

6

Torx Flange Screw M6 X 16

420641588

$2.11

7

CONNECTOR BRACKET - Call your local BRP dealership

420660402

Unavailable

8

Pressure Sensor

420274058

$124.99

9

Torx Flange Screw M6 X 16

420641048

$2.96

10

WIRING SUPPORT - Call your local BRP dealership

420660410

Unavailable

11

Torx Flange Screw M6 X 16

420641588

$2.11

12

Temperature Sensor This part replaces 420222423.

420222421

$39.99

13

Aluminum Sealing Ring

420250016

$5.39

14

Throttle Body

420892450

$889.99

15

Rubber Gasket

420950792

$11.60

16

Allen Screw M6 x 30,5

420440561

$4.44

17

Torx Flange Screw M6 X 25

420641238

$3.27

18

FUEL RAIL ASS'Y - Call your local BRP dealership

420874394

Unavailable

19

FUEL INJECTOR - Call your local BRP dealership | Includes 19 to 20

420874432

Unavailable

20

O-Ring

420631220

$14.28

21

Injector Clip

420853030

$3.09

22

Torx Flange Screw M6 X 25

420641238

$3.27

23

Idle Bypass Valve

420963051

$307.49

24

O-Ring

420631780

$4.44

25

Binding Head Screw M5 X 16

420440911

$14.28

26

Snap Ring

420845710

$4.12

27

Position Sensor

420866120

$98.99

28

Phillips Screw M4 X 16

208641660

$0.90

29

Flat Washer 4 mm, Stainless

234042600

$1.15
