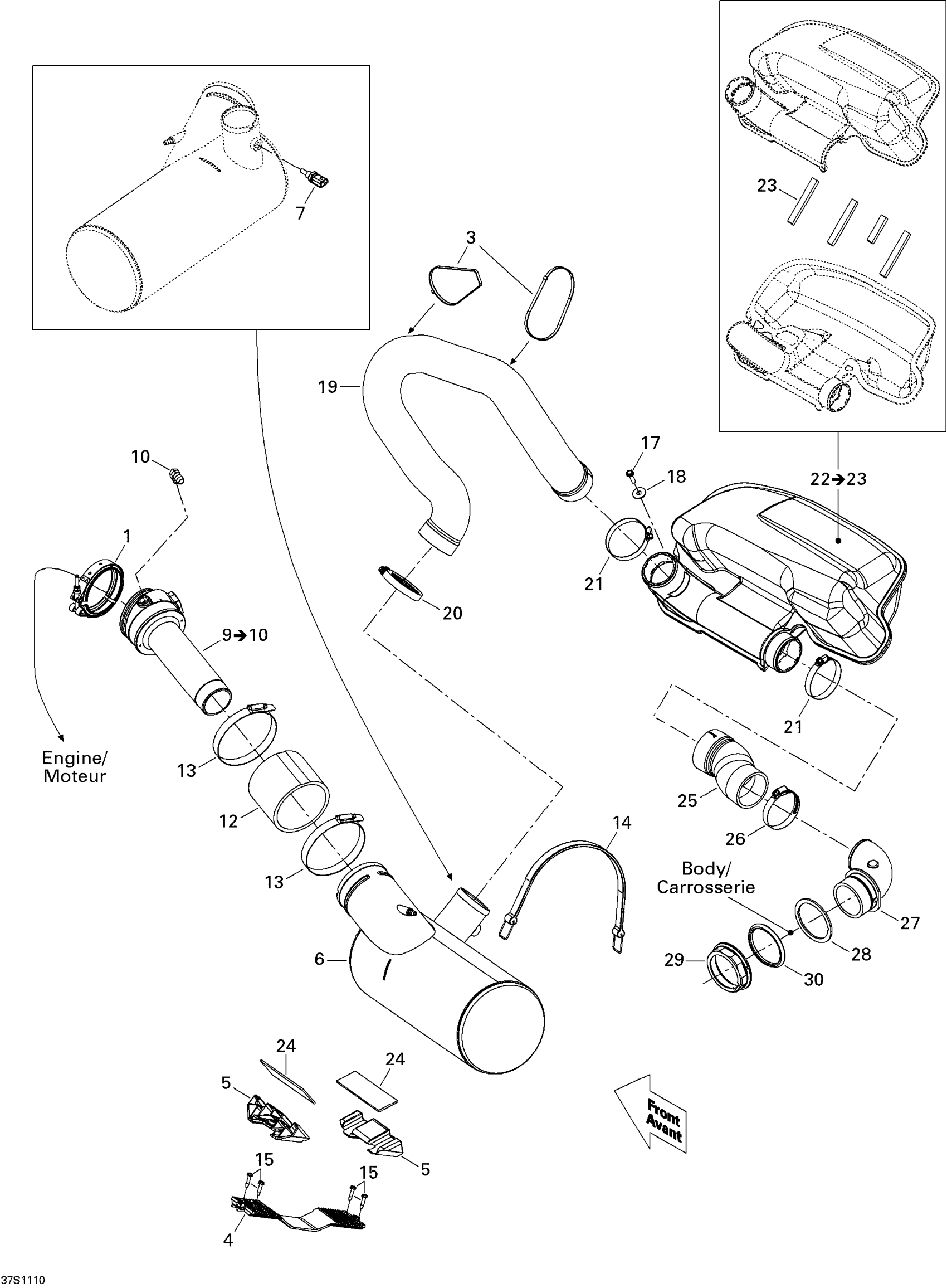

Sea-doo RXP-X 255 & RS, 2011 Exhaust System Diagram

#

Description
Price

1

Exhaust Clamp

274001417

$45.47

3

Tie Rap, 533 mm

293750047

$1.84

4

Exhaust Muffler Support This part replaces 274001357.

274001479

$13.62

5

Stopper

274001721

$14.27

6

MUFFLER_EXHAUST - Call your local BRP dealership | Without Catalyst

274001350

Unavailable

7

Temperature Sensor

278002895

$31.82

9

NEEDS DESCRIPTION | Without Catalyst, Includes 3 to 4 This part replaces 274001354.

423462834

Unavailable

10

Elbow Fitting 90° | Without Catalyst

293700023

$17.13

12

Hose | Without Catalyst

274001348

$18.82

13

Gear Clamp This part replaces 293650281.

293650202

$12.73

14

Fuel Tank Strap

293850093

$16.87

15

Pop Rivet 3/16"

293150043

$1.61

17

Hex. Flange Screw M6.81 X 25, Plastite

243162560

$1.46

18

Flat Washer 8 mm, Stainless

234082600

$1.98

19

Front Formed Exhaust Pipe This part replaces 274001426.

274001707

$74.72

20

Tridon Clamp

293650179

$8.81

21

Tridon Clamp

293650179

$8.81

22

Resonator

274001366

$136.47

23

Neoprene Seal (1PAC=3M)

219704364

$22.72

24

Rubber Pad

293830126

$11.01

25

Rear Exhaust Hose This part replaces 274001427.

274001710

$38.32

26

Tridon Clamp

293650179

$8.81

27

Exhaust Hose, Outlet

274001389

$23.37

28

GASKET - Call your local BRP dealership

293250203

Unavailable

29

Nut 72 mm

274000224

$12.17

30

STABILIZING WASHER - Call your local BRP dealership

274000225

Unavailable
