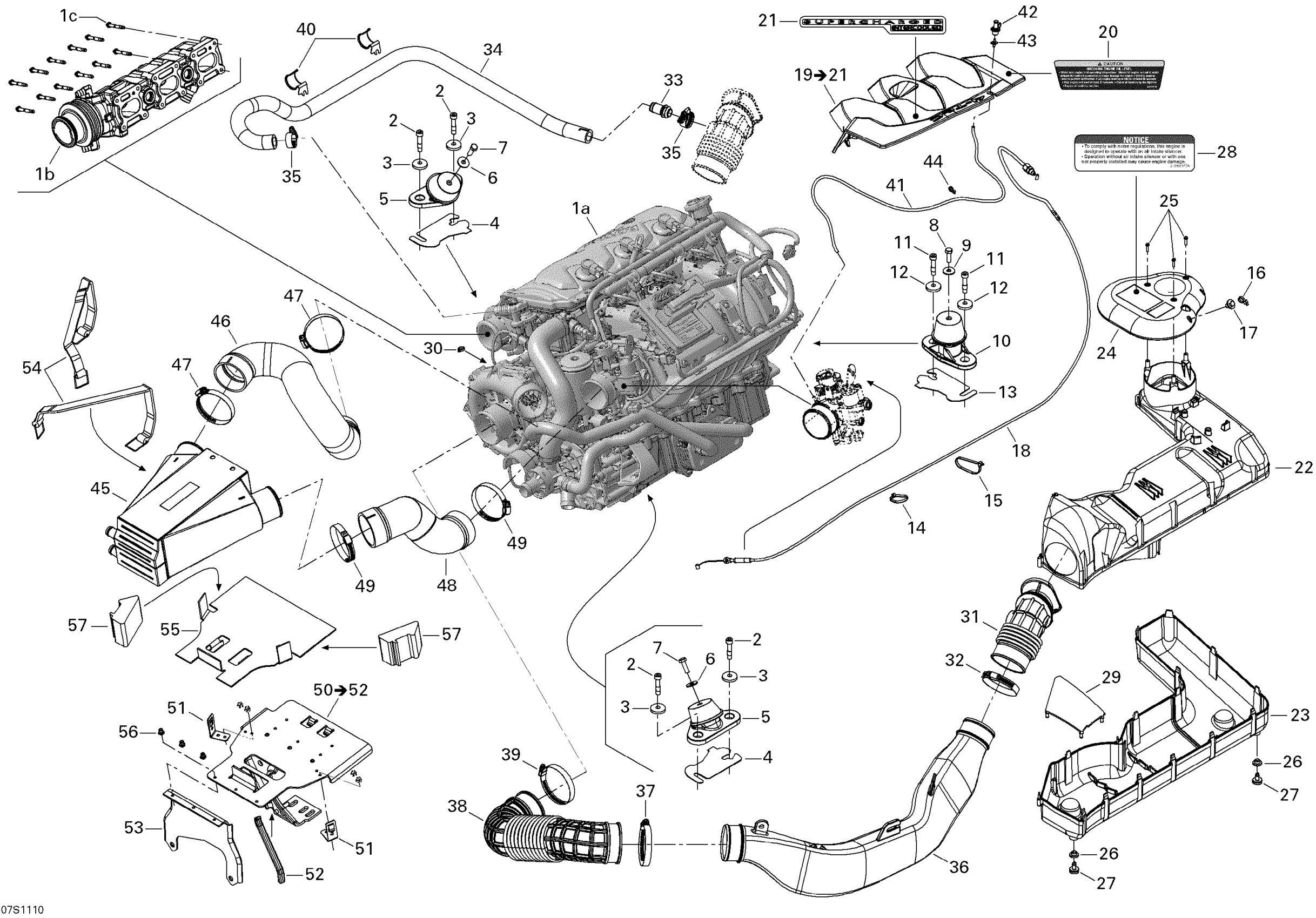

Sea-doo RXP-X 255 & RS, 2011 Engine And Air Intake Silencer Diagram

#

Description
Price

1a

Engine Long Block This part replaces 420150338.

420150394

$3,999.99

1a

Engine Long Block This part replaces 420150338.

420150394

$3,999.99

1a

Engine Long Block This part replaces 420150338.

420150394

$3,999.99

1b

Engine Exhaust Manifold 0990732-00 - 150 This part replaces 420673294.

296000422

$651.92

1c

Torx Flange Screw M6 X 45

420641198

$3.38

2

Torx-Button M/S M8 X 40 Stlss S.Gri

250000845

$3.25

3

Cone Washer

250200018

$4.64

4

Shim 1.3 mm

270000762

$9.04

5

Engine Support Ass'y

270001081

$84.47

6

Flat Washer 8 mm, Stainless

234082600

$1.98

7

Hex. Screw M8 X 25, Scotch Grip

207382560

$1.98

8

Hex. Screw M8 X 25, Scotch Grip

207382560

$1.98

9

Flat Washer 8 mm, Stainless

234082600

$1.98

10

Engine Support Ass'y

270001096

$77.32

11

Torx-Button M/S M8 X 40 Stlss S.Gri

250000845

$3.25

12

Cone Washer

250200018

$4.64

13

Shim 1.3 mm

270000762

$9.04

14

Tie-Rap 180 mm

414115200

$0.09

15

Tie-Rap 180 mm

414115200

$0.09

16

Tie Wrap 142 mm

293750002

$0.88

17

Mount Dart

293730040

$0.86

18

THROTTLE CABLE - Call your local BRP dealership

277001588

Unavailable

19

ENGINE COVER ASS'Y - Call your local BRP dealership | Includes 19 to 21

270000802

Unavailable

20

CAUTION DECAL, ENGINE OIL LEVEL - Call your local BRP dealership

219903135

Unavailable

21

IDENTIFICATION DECAL, MOTOR SCIC - Call your local BRP dealership

219902676

Unavailable

22

AIR SILENCER UPPER - Call your local BRP dealership

273000245

Unavailable

23

AIR SILENCER LOWER - Call your local BRP dealership

273000190

Unavailable

24

AIR SILENCER COVER - Call your local BRP dealership

273000266

Unavailable

25

Hex. Flange Screw K40 X 16

241141660

$1.25

26

GROMMET - Call your local BRP dealership

293720064

Unavailable

27

CHECK VALVE - Call your local BRP dealership

275500454

Unavailable

28

Air Silencer Notice Decal

219903177

Unavailable

29

DEFLECTOR - Call your local BRP dealership

273000206

Unavailable

30

Tie Wrap 142 mm

293750002

$0.88

31

INTAKE HOSE - Call your local BRP dealership

273000186

Unavailable

32

Tridon Clamp

293650179

$8.81

33

Breather Valve

273000234

$10.63

34

FORMED HOSE - Call your local BRP dealership

270000808

Unavailable

35

Tridon Gear Clamp

293650051

$3.61

36

HOSE INTAKE - Call your local BRP dealership

270000771

Unavailable

37

Tridon Clamp

293650179

$8.81

38

INTAKE HOSE - Call your local BRP dealership | Without Catalyst

273000188

Unavailable

39

Tridon Clamp

293650179

$8.81

40

Retainer

275500664

$10.91

41

HOSE 3 MM - Call your local BRP dealership

270000469

Unavailable

42

GROMMET CAP - Call your local BRP dealership

293830120

Unavailable

43

CONNECTOR - Call your local BRP dealership

293710107

$0.93

44

Tie Wrap 142 mm

293750002

$0.88

45

Intercooler

276000273

Unavailable

45

Intercooler | Ref Service Bulletin 2016-9

276000416

Unavailable

45

INTERCOOLER UPDATE MOUNTING KIT - Call your local BRP dealership | Ref Service Bulletin 2016-9

295501163

Unavailable

46

Inlet Hose This part replaces 273000284.

273000402

$66.92

47

Tridon Clamp

293650179

$8.81

48

Outlet Hose | Starboard This part replaces 273000285.

273000403

$41.57

49

Tridon Clamp

293650179

$8.81

50

COOLER SUPPORT - Call your local BRP dealership

270000752

Unavailable

51

STRAP CLIP - Call your local BRP dealership

293850075

Unavailable

52

TRIM, BLACK - Call your local BRP dealership

204610371

Unavailable

53

REAR COOLER SUPPORT - Call your local BRP dealership

270000760

Unavailable

54

Fuel Tank Strap

293850093

$16.87

55

RUBBER PAD - Call your local BRP dealership

293830124

Unavailable

56

Pop Rivet 3/16"

293150039

$1.31

57

FOAM - Call your local BRP dealership

270000848

Unavailable
