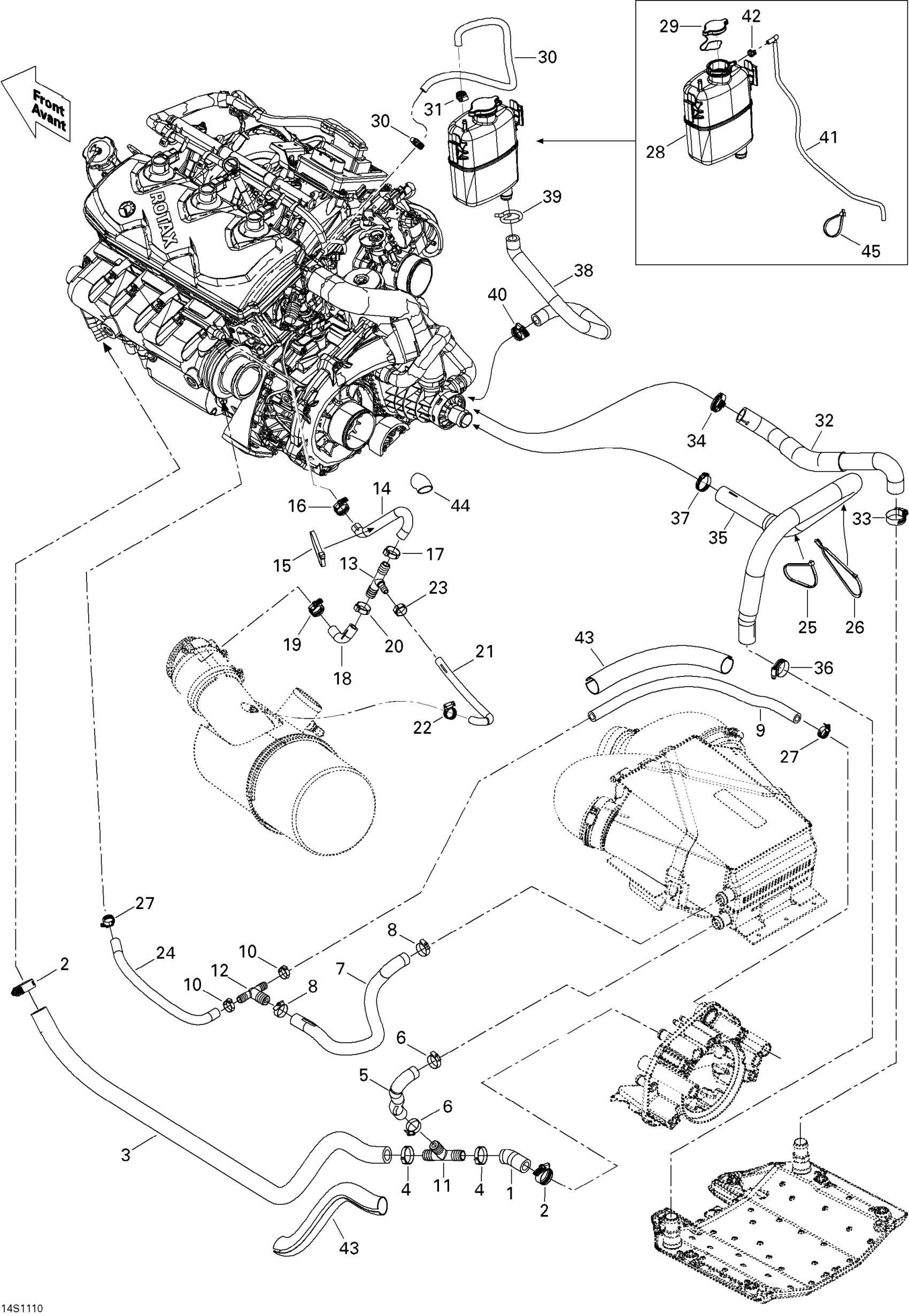

Sea-doo RXP-X 255 & RS, 2011 Cooling System Diagram

#

Description
Price

1

Hose 19.0Mm. 2000Mm Long

219704361

$48.99

2

Tridon Gear Clamp

293650051

$4.19

3

Hose 19.0Mm. 2000Mm Long

219704361

$48.99

4

Crimp Clamp

293650099

$4.29

5

FORMED HOSE - Call your local BRP dealership

276000242

Unavailable

6

Tridon Gear Clamp

293650051

$4.19

7

FORMED HOSE - Call your local BRP dealership

276000243

Unavailable

8

Tridon Gear Clamp

293650051

$4.19

9

Was 276000001 Hose 12.5 mm

219704394

$51.99

10

Oetiker Clamp

293650012

$7.49

11

T-Fitting

293710131

$15.87

12

T-Fitting

293710132

$12.65

13

T-Fitting

293710116

$17.62

14

Hose, Bypass Upper | Without Catalyst This part replaces 276000244.

276000484

$19.49

15

Tie-Rap 180 mm

414115200

$0.11

16

Tridon Gear Clamp

293650172

$3.09

17

Oetiker Clamp

293650012

$7.49

18

Hose, Bypass Lower | With Catalyst This part replaces 276000137.

276000455

$19.49

19

Tridon Gear Clamp

293650172

$3.09

20

Oetiker Clamp

293650012

$7.49

21

Formed Hose | Without Catalyst

276000246

$19.49

22

Tridon Gear Clamp

293650171

$3.09

23

Oetiker Clamp | Europe

293650030

$5.19

24

Was 276000001 Hose 12.5 mm

219704394

$51.99

25

Tie Wrap 368 mm

293750008

$1.04

26

Tie Wrap 368 mm

293750008

$1.04

27

Tridon Gear Clamp

293650172

$3.09

28

Coolant Tank

276000086

$109.99

29

Pressure Cap | Includes 720 to 720a

276000100

$25.99

30

HOSE 1/4 - Call your local BRP dealership

204300184

Unavailable

31

Tridon Gear Clamp

293650170

$1.99

32

RH RADIATOR HOSE - Call your local BRP dealership

276000247

Unavailable

33

Tridon Gear Clamp

293650185

$13.99

34

Tridon Gear Clamp

293650185

$13.99

35

LH Radiator Hose

276000251

$49.99

36

Tridon Gear Clamp

293650185

$13.99

37

Tridon Gear Clamp

293650185

$13.99

38

Formed Return Hose This part replaces 276000253.

276000493

$29.49

39

Spring Clamp

293650115

$3.09

40

Tridon Gear Clamp

293650019

$5.82

41

Polyurethane Hose 10000Mm Long

219704410

$56.99

42

Tie Wrap 94 mm | 4X4

293750001

$1.03

43

Tubing 25 MM 1000MM Long

219704402

$15.99

44

PROTECTOR TUBE 25 MM - Call your local BRP dealership

276000162

Unavailable

45

Tie-Rap 180 mm

414115200

$0.11
