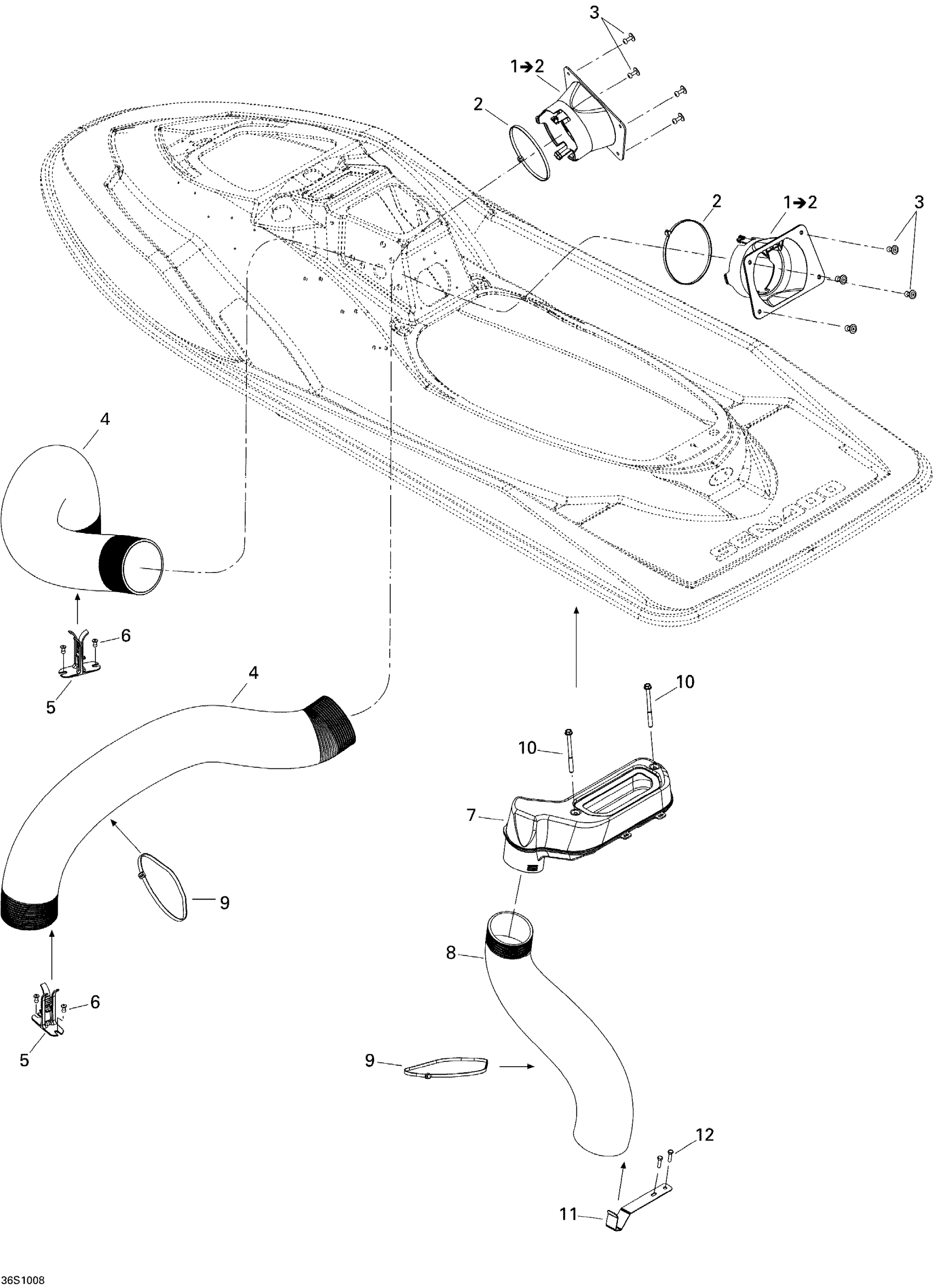

Sea-doo RXP-X 255 and 255 RS, 2010 Ventilation Diagram

#

Description

Price

1

FRONT AIR COLLECTOR ASS'Y - Call your local BRP dealership | Includes 1 to 2

291002547

Unavailable

2

Tie Rap, 533 mm

293750047

$2.09

3

Pop Rivet 3/16"

293150123

$4.29

4

FLEXIBLE HOSE - Call your local BRP dealership

291002549

Unavailable

5

Hose Clip

291002527

$13.99

6

Pop Rivet 3/16"

293150005

$0.52

7

AIR ADAPTER - Call your local BRP dealership

291002701

Unavailable

8

REAR HOSE VENT - Call your local BRP dealership

291002544

Unavailable

9

Tie Rap, 533 mm

293750047

$2.09

10

HEX. PLASTITE SCREW M6,81 X 80 - Call your local BRP dealership

243168060

Unavailable

11

HOSE SUPPORT - Call your local BRP dealership

291002627

Unavailable

12

Hex. Plastite Screw M4, 8 X 20

243042060

Unavailable
