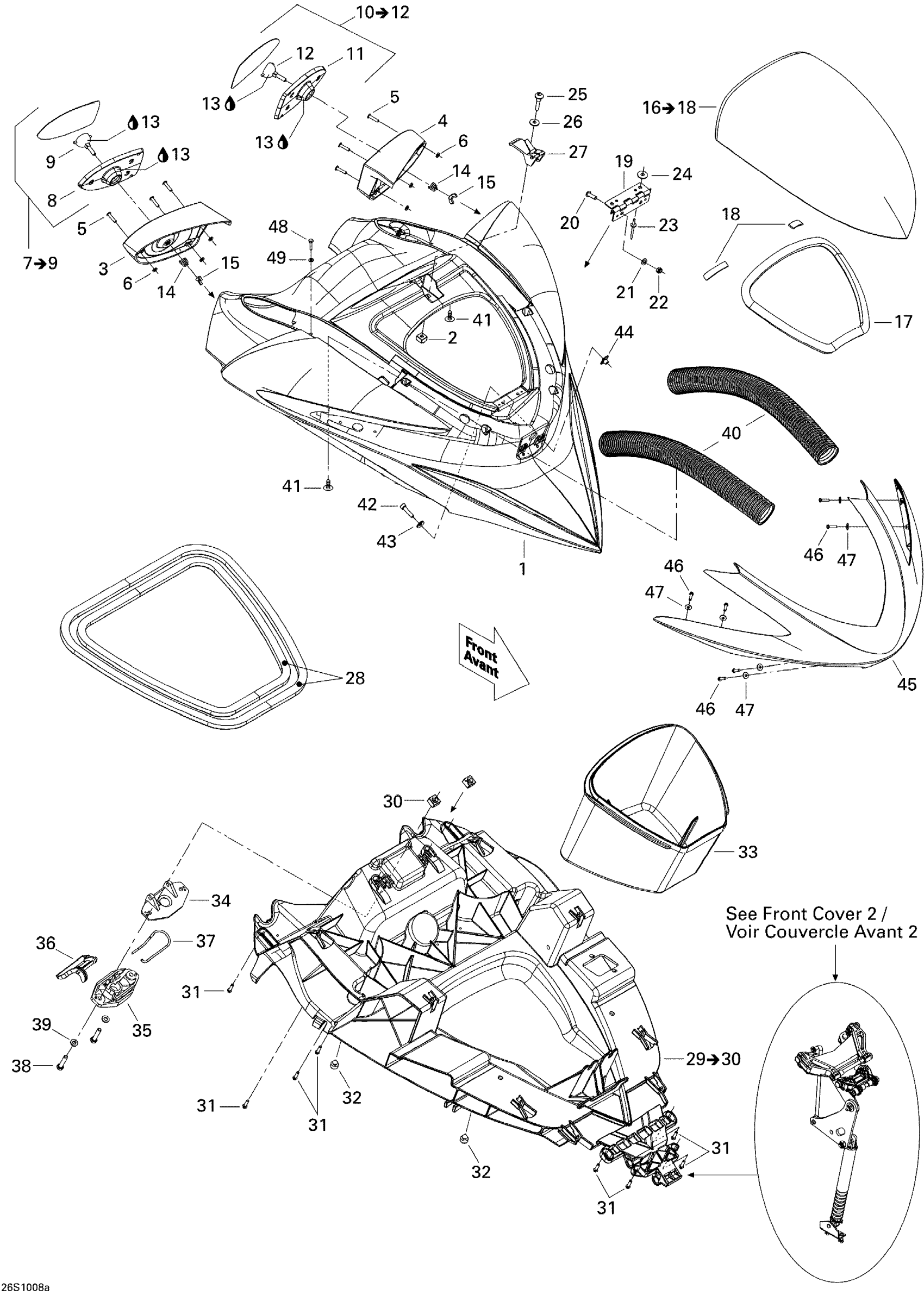

Sea-doo RXP-X 255 and 255 RS, 2010 Storage Compartment 1 Diagram

#

Description
Price

1

UPPER STORAGE COVER - Call your local BRP dealership

269501774

Unavailable

2

Housing Nut M6 | Included 550f to 550f2

269502408

$6.74

3

RH MIRROR HOUSING - Call your local BRP dealership

269501775

Unavailable

4

LH MIRROR HOUSING - Call your local BRP dealership

269501776

Unavailable

5

Pop Rivet 3/16"

293150005

$0.52

6

Flat Washer, Emhart

213200016

$0.72

7

RH MIRROR ASS'Y - Call your local BRP dealership | Includes 7 to 9

269501633

Unavailable

8

Frame Mirror

269500697

Unavailable

9

MIRROR BALL JOINT - Call your local BRP dealership

269500079

Unavailable

10

LH MIRROR - Call your local BRP dealership | Includes 10 to 12

269501634

Unavailable

11

Frame Mirror

269500697

Unavailable

12

MIRROR BALL JOINT - Call your local BRP dealership

269500079

Unavailable

13

Synthetic Grease, 400 G

293550010

Unavailable

14

Mirror Spring

269500453

$10.49

15

WING NUT M6 - Call your local BRP dealership

232661600

Unavailable

16

ACCESS COVER ASS'Y - Call your local BRP dealership

269501777

Unavailable

17

Gasket, Neoprene 2000Mm Long

219704476

$15.36

18

Seal Tray 1000Mm Long

219704368

$13.99

19

HINGE - Call your local BRP dealership

269500338

Unavailable

20

Socket Head Screw M5 X 16

205451660

$1.15

21

Flat Washer M5, Stainless

234051600

$0.77

22

Elastic Stop Nut 5 mm

232551200

$1.47

23

Pop Rivet 3/16"

204000081

$1.49

24

Flat Washer 5 mm, Stainless

234052600

$0.77

25

ANCHORING STUD - Call your local BRP dealership

291001242

Unavailable

26

Flat Washer M6, Stainless

234062600

$0.77

27

Latch

269501487

$16.99

28

Was 293200017 Neoprene Seal

219704365

$149.99

29

LOWER STORAGE COVER - Call your local BRP dealership | Includes 29 to 30

269501683

Unavailable

30

Housing Nut M6 | Included 550f to 550f2

269502408

$6.74

31

Hex. Flange Screw K40 X 13

241141360

$0.67

32

Rubber Bumper

293830005

$8.09

33

STORAGE BOX - Call your local BRP dealership

269501133

Unavailable

34

Latch Ass'y

269700109

$24.99

35

Latch Ass'y

269700109

$24.99

36

Latch Ass'y

269700109

$24.99

37

Latch Spring

269700017

$9.19

38

Hex. Screw M6 X 30

207063060

$1.89

39

Stainless Flat Washer M6

234061600

$0.33

40

VENTILALTION HOSE (BLACK) - Call your local BRP dealership

291002489

Unavailable

41

Black, Dart

293730011

$0.99

42

Socket Head Screw M6 X 20, Scotch Grip

205562060

$0.76

43

Flat Washer M6, Stainless

234062600

$0.77

44

Nut Welded, M6

293100003

$9.12

45

Front Grille

269501238

$154.99

46

Hex. Flange Screw K40 X 16

241141660

$1.48

47

Flat Washer 4 mm, Stainless

234042600

$1.15

48

Plastite Hex. Screw M6.8 X 35

243163560

$4.44

49

Flat Washer M6, Stainless

234062600

$0.77
