09- Body, Rear View

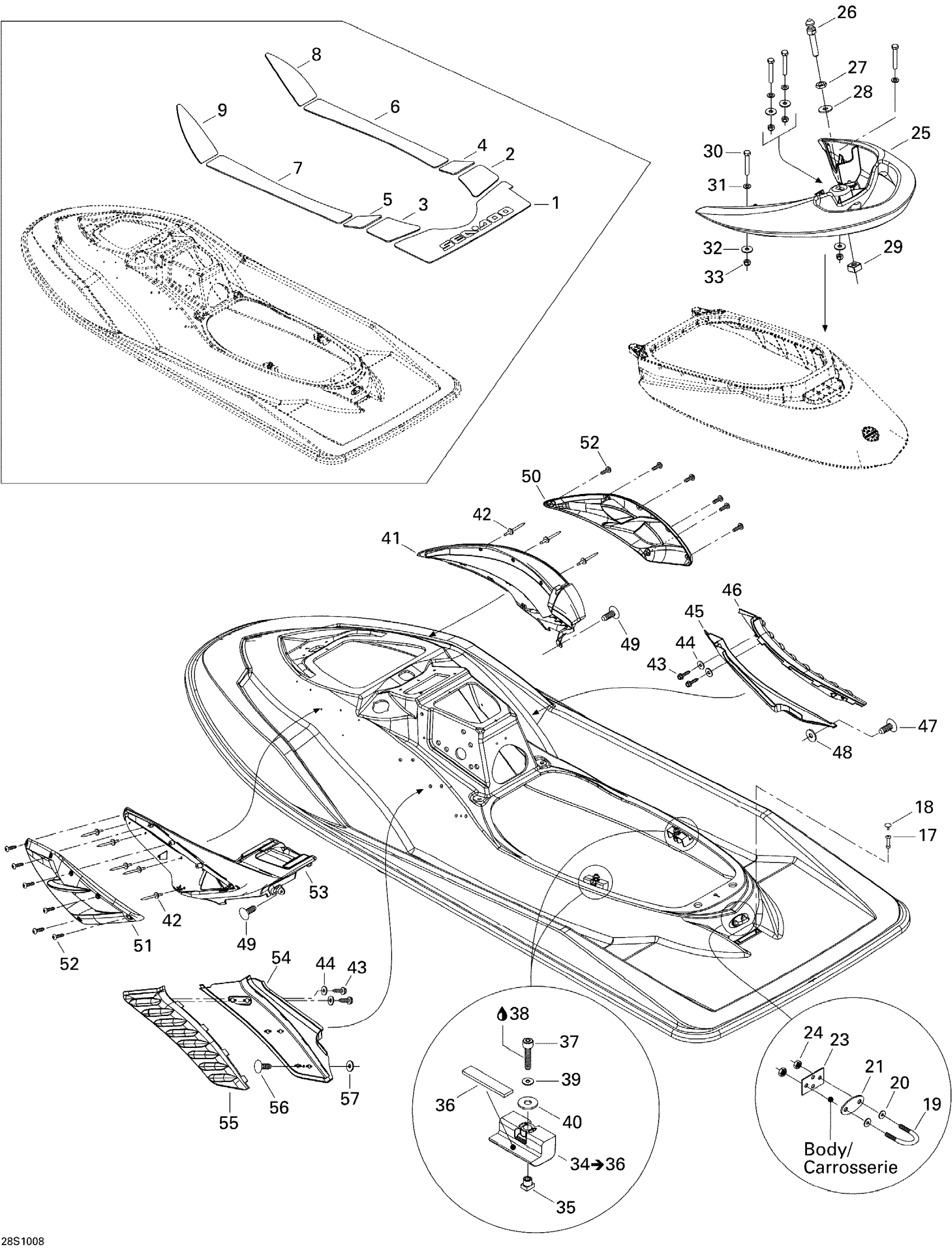

Sea-doo RXP-X 255 and 255 RS, 2010 09- Body, Rear View Diagram
#
1
Platforme Carpet
291002981
Unavailable
2
RH Platforme Carpet
291002982
Unavailable
3
LH Platforme Carpet
291002983
Unavailable
4
RH REAR CARPET - Call your local BRP dealership
291002984
Unavailable
5
LH REAR CARPET - Call your local BRP dealership
291002985
Unavailable
6
RH CENTER CARPET - Call your local BRP dealership
291002986
Unavailable
7
LH CENTER CARPET - Call your local BRP dealership
291002987
Unavailable
8
RH Front Carpet
291002988
Unavailable
9
LH Front Carpet
291002989
Unavailable
17
Rivet 1/8"
293150016
$0.40
18
Black, Snap Cap
293000014
$1.09
19
U-Clamp
292000933
$59.49
20
Flat Washer M8.5 x 18
293050001
$3.07
21
Black, Finition Plate
291001386
$10.99
23
RETAINER PLATE - Call your local BRP dealership
291001387
Unavailable
24
Hex. Elastic Nut M8 Brass
232581200
$2.22
25
GRAB HANDLE - Call your local BRP dealership
269001651
Unavailable
26
LATCH STUD - Call your local BRP dealership
291000691
Unavailable
27
Hex. Jam Nut M10
232100600
$2.22
28
Flat Washer 10 mm, Stainless
234002600
$2.22
29
NUT HOUSING ASS'Y - Call your local BRP dealership | Includes 60 to 61
271000598
Unavailable
30
HEX. SCREW M8 X 55 - Call your local BRP dealership
207085560
Unavailable
31
Stainless, Flat Washer 8 mm
234081600
$0.55
32
Flat Washer 8 mm, Stainless
234082600
$2.43
33
Hex. Elastic Nut M8 Brass
232581200
$2.22
34
Link Bridge Ass'y
291001931
$26.99
35
Square Nut M8
211100033
$17.99
36
Pad
291001932
$10.99
37
SOCKET HEAD SCREW M8 X 35 - Call your local BRP dealership
205083560
Unavailable
38
Loctite 243, 10 ml
293800060
$21.49
39
Flat Washer 8 mm, Stainless
250200175
$3.06
40
Rubber Washer
293830037
$2.68
41
RH UPPER MOULDING - Call your local BRP dealership
291002891
Unavailable
42
Pop Rivet 3/16"
293150123
$4.29
43
Hex. Screw 10-14 X 7/8”
211000023
$3.59
44
Flat Washer, Stainless/Neoprene
211200055
$0.73
45
RH Moulding
291002893
Unavailable
46
RH KNEE PAD, SILVER - Call your local BRP dealership
269001293
Unavailable
47
Black, Dart
293730006
$0.99
48
Rubber Washer 5 mm
250200024
$2.19
49
Black, Dart
293730006
$0.99
50
RH GRILL - Call your local BRP dealership
273000231
Unavailable
51
LH GRILL - Call your local BRP dealership
273000232
Unavailable
52
Allen Plastite Screw #12
250000099
$2.19
53
LH UPPER MOULDING - Call your local BRP dealership
291002894
Unavailable
54
LH MOULDING - Call your local BRP dealership
291002896
Unavailable
55
LH KNEE PAD, SILVER - Call your local BRP dealership
269001292
Unavailable
56
Black, Dart
293730006
$0.99
57
Rubber Washer 5 mm
250200024
$2.19
