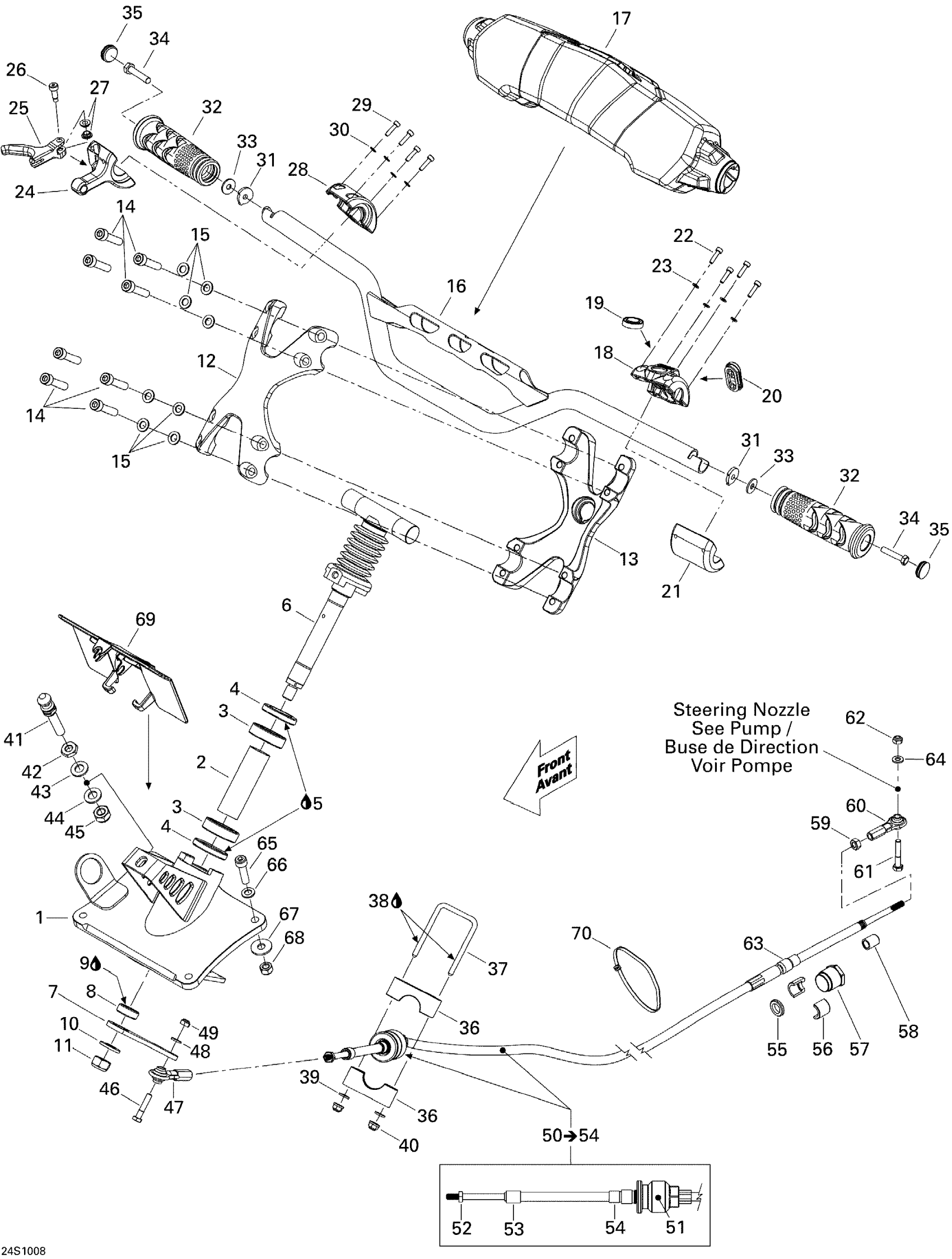

Sea-doo RXP-X 255 and 255 RS, 2010 Steering Diagram

#

Description
Price

1

STEERING SUPPORT - Call your local BRP dealership

277001632

Unavailable

2

Spacer

277001572

Unavailable

3

Ball Bearing | Package-STD

503190396

$14.30

4

OIL SEAL - Call your local BRP dealership

293200115

Unavailable

5

Synthetic Grease, 400 G

293550010

Unavailable

6

STEERING SHAFT ASS'Y - Call your local BRP dealership

277001636

Unavailable

7

MOBILE ARM - Call your local BRP dealership

277001639

Unavailable

8

RING - Call your local BRP dealership

277001584

Unavailable

9

Synthetic Grease, 400 G

293550010

Unavailable

10

Flat Washer 10 mm, Stainless

234002600

$2.22

11

Elastic Stop Nut M10, Brass

232501200

$2.64

12

HANDLE BAR EXTENSION, FRONT - Call your local BRP dealership

277001640

Unavailable

13

HANDLE BAR EXTENSION, REAR - Call your local BRP dealership

277001641

Unavailable

14

SOCKET HEAD SCREW M8 X 35 - Call your local BRP dealership

205083560

Unavailable

15

Flat Washer M8, Stainless

234080600

$1.48

16

HANDLE BAR - Call your local BRP dealership

277001742

Unavailable

17

HANDLE PAD - Call your local BRP dealership

277001557

Unavailable

18

HOUSING COVER ASS'Y - Call your local BRP dealership

277001643

Unavailable

19

Switch Knob, Red

277001802

$10.59

20

VTS KNOB - Call your local BRP dealership

278002066

Unavailable

21

LOWER HOUSING - Call your local BRP dealership

277001644

Unavailable

22

Socket Head Screw M4 X 16 | Not Shown

205041660

$1.90

23

Flat Washer 4 mm

234040600

$0.55

24

RH HOUSING - Call your local BRP dealership

277001646

Unavailable

25

THROTTLE HANDLE - Call your local BRP dealership

277001647

Unavailable

26

SOCKET HEAD SHOULDER SCREW - Call your local BRP dealership

250000343

Unavailable

27

BUSHING - Call your local BRP dealership

293900090

Unavailable

28

UPPER HOUSING - Call your local BRP dealership

277001648

Unavailable

29

Socket Head Screw M4 X 16 | Not Shown

205041660

$1.90

30

Flat Washer 4 mm

234040600

$0.55

31

Insert Grip Handle

277001863

$8.83

32

Handle Grip, Slate Grey

277001336

$19.49

33

Flat Washer M6, Stainless

234062600

$0.77

34

Hex. Screw M6 X 30, Scotch Grip

250000002

$0.92

35

Black, Cap

277000203

$9.39

36

SUPPORT THRUST - Call your local BRP dealership This part replaces 277000162.

277001528

Unavailable

37

U-CLAMP - Call your local BRP dealership

277001677

Unavailable

38

Regular Seat Strap (Yellow)

269000309

Unavailable

39

Stainless Flat Washer M6

234061600

$0.33

40

Elastic Stop Nut M6, Brass

232561200

$4.23

41

LATCH STUD - Call your local BRP dealership

291002717

Unavailable

42

Hex. Jam Nut M10

232100600

$2.22

43

Flat Washer 10 mm, Stainless

234001600

$1.15

44

Flat Washer 10 mm, Stainless

234001600

$1.15

45

Elastic Stop Nut M10, Brass

232501200

$2.64

46

Hex. Screw M6 X 30

207063060

$1.89

47

Ball Joint

277000775

$51.99

48

Stainless Flat Washer M6

234061600

$0.33

49

Elastic Stop Nut M6, Brass

232561200

$4.23

50

Steering Cable | Includes 38 to 42

277001580

$201.49

51

Ajustment Knob

277000782

$22.99

52

Hex. Nut 1/4"-28

211100056

$0.69

53

Wiper Rod

277001582

$11.11

54

End Piece

277001583

$14.49

55

Rubber Washer

293830063

$1.90

56

Half Ring

277001527

$10.37

57

Steering Cable Lock This part replaces 277000784.

277001729

$13.22

58

Wiper Rod

277001582

$11.11

59

Hex. Nut 1/4"-28

211100056

$0.69

60

Ball Joint

277000775

$51.99

61

Hex. Screw M6 X 35

207063560

$2.22

62

Elastic Stop Nut M6, Brass

232561200

$4.23

63

End Piece

277001583

$14.49

64

Stainless Flat Washer M6

234061600

$0.33

65

SOCKET HEAD SCREW M8 X 35 - Call your local BRP dealership

205083560

Unavailable

66

Stainless, Flat Washer 8 mm

234081600

$0.55

67

Flat Washer 8 mm, Stainless

234082600

$2.43

68

Hex. Elastic Nut M8 Brass

232581200

$2.22

69

CAP - Call your local BRP dealership

277001623

Unavailable

70

Tie Wrap 368 mm

293750008

$1.04
