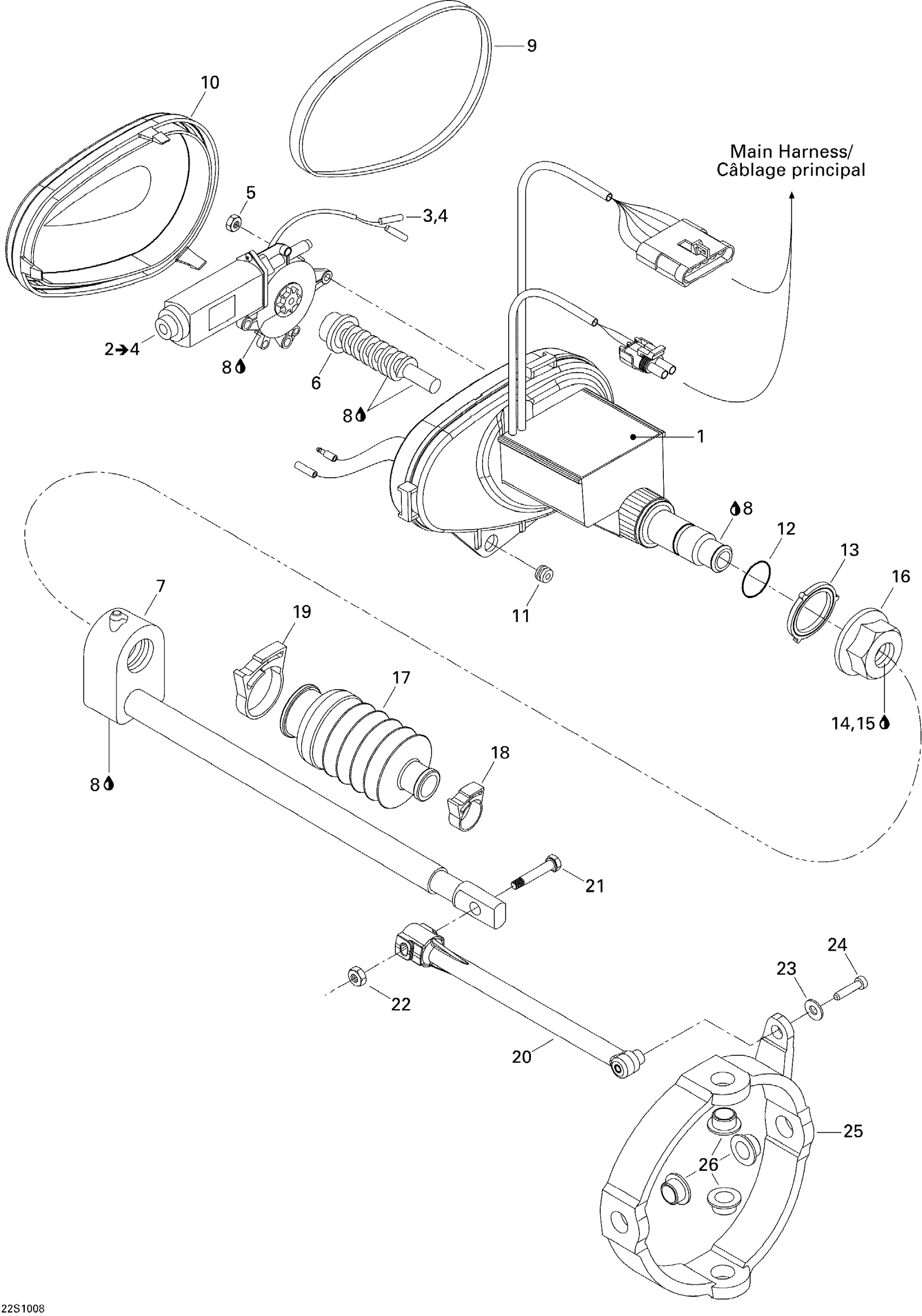

Sea-doo RXP-X 255 and 255 RS, 2010 Trim, Electrical Diagram

#

Description
Price

1

V.T.S Housing

278001605

$419.99

2

Windshield Motor

278002579

$234.99

3

Insulation Sheath

278000231

$5.08

4

Male Terminal

278000230

$4.39

5

Hex. Elastic Stop Nut M6

232561600

$1.15

6

Worm Screw

278000428

$14.30

7

Sliding Block Ass’y

278001698

$43.99

8

Synthetic Grease, 400 G

293550010

Unavailable

9

GASKET - Call your local BRP dealership

293200027

Unavailable

10

V.T.S. COVER - Call your local BRP dealership

278000595

Unavailable

11

GROMMET - Call your local BRP dealership

293720015

Unavailable

12

O-Ring

293300044

$1.05

13

SEAL WASHER - Call your local BRP dealership

293830027

Unavailable

14

Was 293800041 Loctite Primer 7649

219704458

$39.99

15

Loctite 243, 10 ml

293800060

$21.49

16

SPECIAL NUT M27 - Call your local BRP dealership

211100020

Unavailable

17

Protector Hose

271000459

$17.49

18

Clamp

293650082

$3.99

19

CLAMP - Call your local BRP dealership

293650083

Unavailable

20

V.T.S. ROD - Call your local BRP dealership

271001179

Unavailable

21

HEX. SCREW M6 X 35 - Call your local BRP dealership

250000173

Unavailable

22

Elastic Stop Nut M6, Brass

232561200

$4.23

23

Flat Washer 5 mm, Stainless

234052600

$0.77

24

PIVOT SCREW - Call your local BRP dealership

250000018

Unavailable

25

Trim Ring, Black

266000013

$119.99

26

Venturi Bushing

293900007

$5.45
